Запчасти Case IH MX100 (05-25) - HUB PLANETARY DRIVE (05) - STEERING

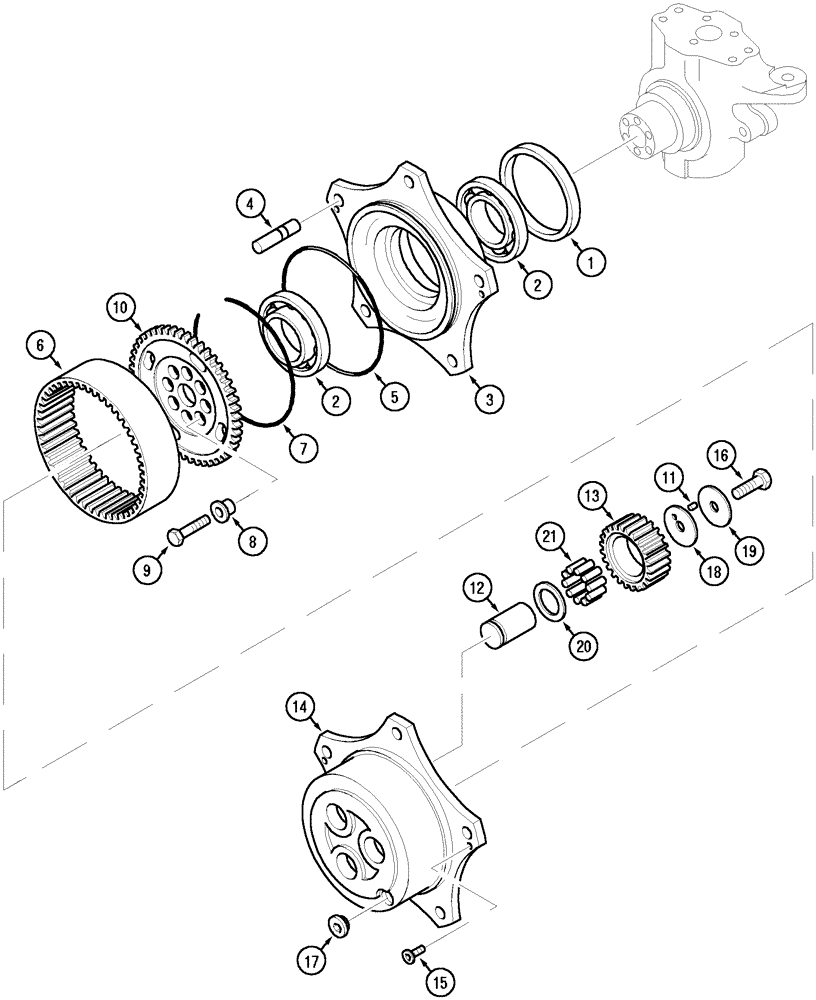

Схема запчастей Case IH MX100 - (05-25) - HUB PLANETARY DRIVE (05) - STEERING
20
6
16
19
18
17
7
3
1
8
14
11
21
13
2
4
5
15
2
10
12
9

Артикул

Название

Примечание

Количество

Axle 20:25S

1шт.

1

247546A1

OIL SEAL,150mm ID x 180mm OD x 14.50mm W

2шт.

2

81676C1

ROLLER BEARING,109.54mm ID x 158.75mm OD x 23.02mm W

4шт.

3

340478A1

HUB

Includes 4

2шт.

4

D142986

STUD,88mm L

5шт.

5

Q2930467

O-RING,0.139" Thk x 9.984" ID, -274, Cl 5, 75 Duro

2шт.

6

175976A1

PINION

2шт.

7

175984A1

RING, LOCKING

RING, LOCK

2шт.

8

107071A1

BUSHING

20 mm OD

16шт.

9

K395131

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

16шт.

10

310492A1

PINION CARRIER

GEAR CARRIER

6шт.

340479A1

HUB

Consists of 11 - 21

1шт.

11

247550A1

NEEDLE BEARING,5 mm OD x 10 mm

Sets of 10

6шт.

12

NSS

NOT SOLD SEPARAT

Pin

6шт.

13

1-33-742-715

PLANETARY GEAR

31T

6шт.

14

NSS

NOT SOLD SEPARAT

Hub

2шт.

15

905876R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 20mm, Cl 10.9

4шт.

16

175982A1

LOCK BOLT,Hex, M10 x 1.25 x 50mm, Cl 10.9

M10 x 50

6шт.

17

100557A1

PLUG, DRAIN,M30 x 2

2шт.

18

175980A1

THRUST WASHER

6шт.

19

175990A1

THRUST WASHER

6шт.

20

175989A1

THRUST WASHER

6шт.

21

175978A1

NEEDLE BEARING

Sets of 10

168шт.

Выбрано товаров: 23
