Запчасти Case IH MX305 (03-09) - FUEL LINES (03) - FUEL SYSTEM

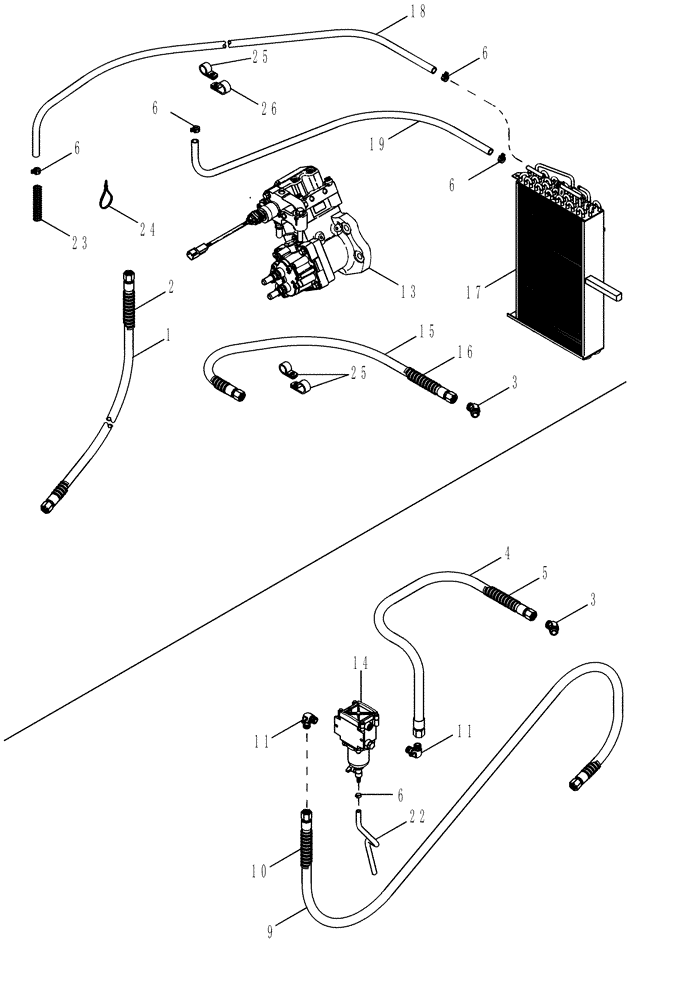

Схема запчастей Case IH MX305 - (03-09) - FUEL LINES (03) - FUEL SYSTEM
23
25
3
11
24
13
6
6
3
9
16
22
6
17
4
5
25
14
6
2
15
11
10
1
19
26
18
6

Артикул

Название

Примечание

Количество

1

87442363

HOSE,12.7mm ID x 2310mm L, SAE 30R7

2310mm (90.94 in), Fuel Tank to Filter

1шт.

2

87442364

CONDUIT

2150mm (84.65 in)

1шт.

3

87472298

90 ELBOW

1шт.

4

87349763

HOSE

Fuel Filter Outlet, 570mm (22-7/16 in), If Equipped with Separator Filter

1шт.

5

87350913

CONDUIT

510mm (20.07 in), If Equipped with Separator Filter

1шт.

6

1348264C1

HOSE CLAMP

3/8 ID, If Equipped with Separator Filter (1)

5шт.

9

87349720

HOSE

Fuel Filter Supply, Fuel Tank to Filter, 1660mm (65.35 in), If Equipped with Separator Filter

1шт.

10

87372642

CONDUIT

1490mm (58.66 in), If Equipped with Separator Filter

1шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

If Equipped with Separator Filter

2шт.

13

REF

INSTRUCTION

Pump, Injection

1шт.

See Figure 03-05

1шт.

14

87346728

FUEL FILTER

If Equipped

1шт.

See Figure 03-10

1шт.

15

87442365

HOSE

Without Separator Filter, 1600mm (63 in), Cut From 284736A2

1шт.

16

87367299

CONDUIT

1500mm (59.05 in)

1шт.

17

REF

INSTRUCTION

Cooler

1шт.

See Figure 09-41

1шт.

18

87442367

FUEL HOSE,9.53 mm ID x 4400.00 mm, SAE 30R7

Cut From 284736A2

1шт.

19

87367298

CONDUIT

4300mm (169.29 in)

1шт.

22

360525A1

HOSE,15.88 mm ID x 700.00 mm, SAE 30R7

Filter Drain

1шт.

23

87435416

SPRING

Fuel Hose Guard

2шт.

24

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Tie

2шт.

25

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

3шт.

26

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

1шт.

Выбрано товаров: 24
