Запчасти Case IH MX305 (03-04) - FUEL FILTER AND CONNECTIONS (03) - FUEL SYSTEM

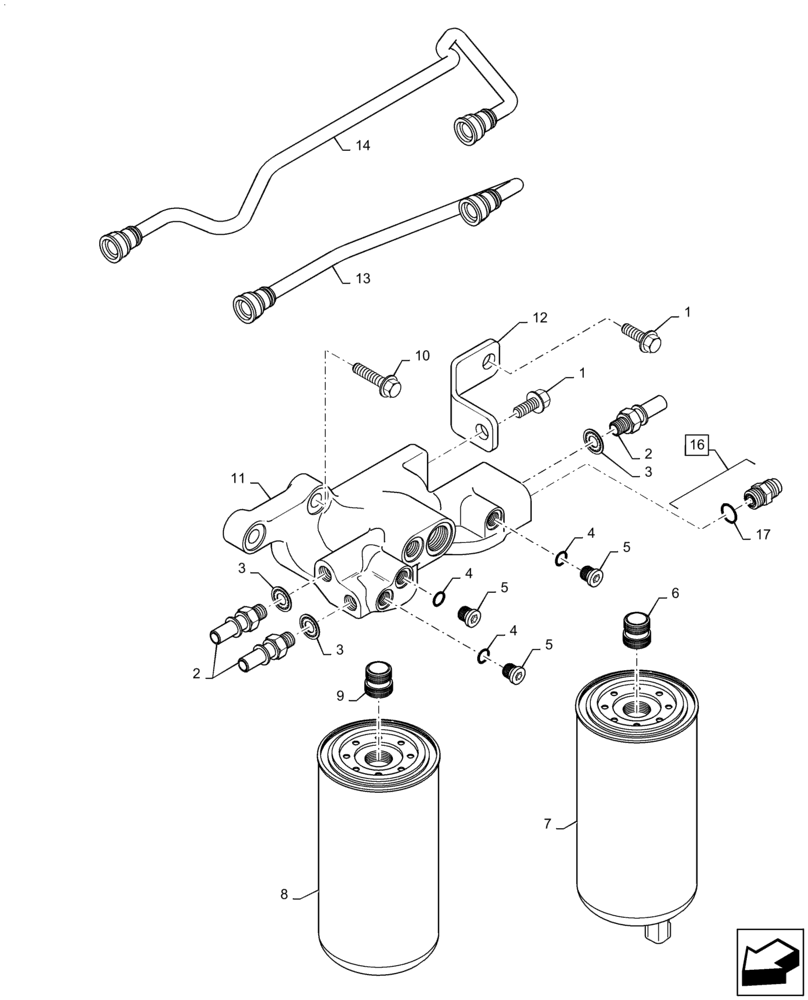

Схема запчастей Case IH MX305 - (03-04) - FUEL FILTER AND CONNECTIONS (03) - FUEL SYSTEM
14
5
5
10
9
8
7
2
13
4
1
3
3
2
12
6
4
3
11
1
4
17
16
5

Артикул

Название

Примечание

Количество

1

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

2шт.

2

87349484

ADAPTER

3шт.

3

87346600

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

3шт.

4

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

3шт.

5

J678923

PLUG,M10 x 1

10 mm

3шт.

6

84131590

ADAPTER

1шт.

7

84477359

FUEL FILTER

Primary, 25 Micron, With WIF Sensor

1шт.

WIF Sensor is Not Serviced Separately

1шт.

8

84477358

FUEL FILTER

Secondary, 5 Micron

1шт.

9

87349753

ADAPTER

1шт.

10

87349727

BOLT

2шт.

11

87356213

FILTER HEAD

1шт.

12

87356110

BRACKET

1шт.

13

87341273

FUEL TUBE,0.63" OD

Fuel Supply

1шт.

14

87341277

FUEL TUBE

Fuel Supply

1шт.

15

84543561

FUEL FILTER

10 Micron (Not Shown)

1шт.

16

311214A1

ADAPTER

Incl 17

1шт.

17

237-8010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

1шт.

Выбрано товаров: 18
