Запчасти Case IH MX305 (02-28) - CRANKSHAFT (02) - ENGINE

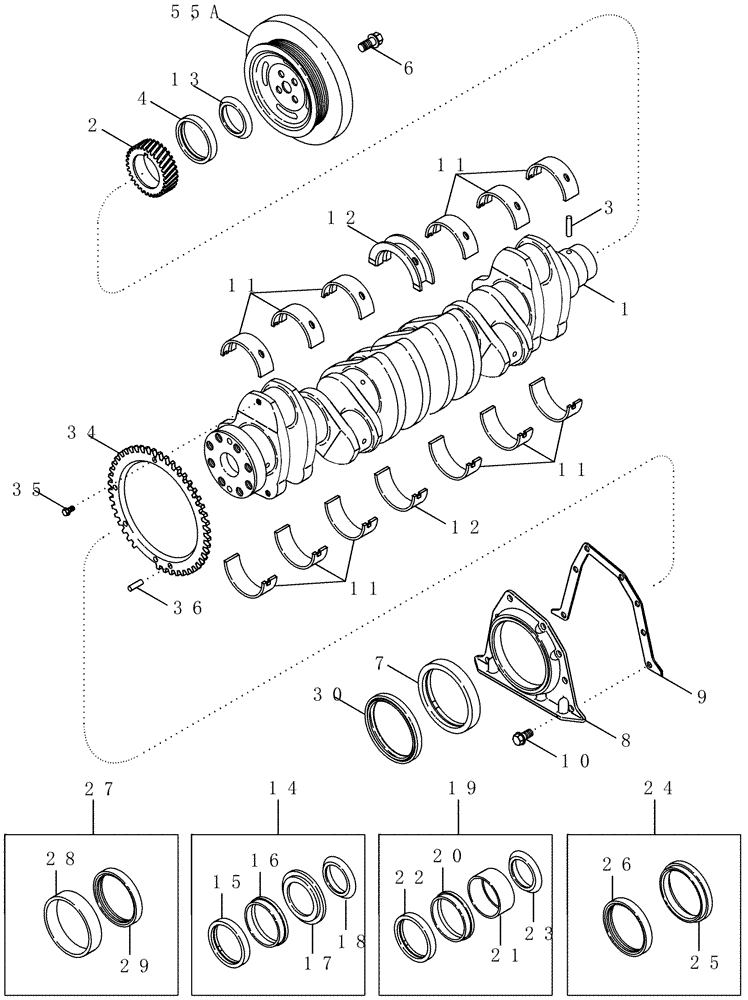

Схема запчастей Case IH MX305 - (02-28) - CRANKSHAFT (02) - ENGINE
11
2
20
11
23
29
12
10
8
12
4
5
24
11
17
22
27
11
35
1
16
6
30
14
34
18
26
13
5a
9
3
15
7
28
21
19
25
36

Артикул

Название

Примечание

Количество

1

87335711

CRANKSHAFT

New, With Speed Indicator Ring, Incl 2, 3

1шт.

MX215, Magnum 215, MX245, Magnum 245, MX275 and Magnum 275

1шт.

87335716R

REMAN-CRANKSHAFT

MAGNUM 215, MAGNUM 245, MAGNUM 275, MAGNUM 305 ALL (9/06-), MX215, MX245, MX275, MX305 ALL (1/06-9/06), MAGNUM 335, Reman for New P/N 87335711

1шт.

87335716C

CORE-CRANKSHAFT

Return Number

1шт.

1

87356215

CRANKSHAFT

New

1шт.

MX275, MX305, Magnum 275, Magnum 305 and Magnum 335

1шт.

1

87356215R

REMAN-CRANKSHAFT

MAGNUM 275, MAGNUM 305, Both (9/06-), MAGNUM 335, All TRACTOR (NA), MX275, MX305, Both CASE IH MAGNUM TRACTOR NA (1/06-9/06)

1шт.

1

87356215C

CORE-CRANKSHAFT

Return Number

1шт.

2

J918776

GEAR

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL, Incl in 14

1шт.

5

J925570

DAMPER

Has 4 holes to mount to crankshaft.

1шт.

MX215, Magnum 215, MX245, Magnum 245, MX275 and Magnum 275

1шт.

5

87357611

DAMPER

Has 5 holes to mount to crankshaft.

1шт.

MX275, MX305, Magnum 275, Magnum 305 and Magnum 335

1шт.

5a

87422144

PULLEY,199.42mm OD

1шт.

MX275, MX305, Magnum 275, Magnum 305 and Magnum 335

1шт.

6

J906733

BOLT,Hex Flg, M14 x 1.5 x 35mm, Cl 12.9

M14 x 35

4шт.

MX215, Magnum 215, MX245, Magnum 245, MX275 and Magnum 275

1шт.

6

J914118

FLANGE BOLT,Hex, M14 x 1.5 x 60mm, Cl 12.9

M14 x 60

5шт.

MX275, MX305, Magnum 275, Magnum 305 and Magnum 335

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL, Order J934486

1шт.

8

J933384

REAR COVER

1шт.

9

J914301

GASKET

1шт.

10

87409160

SCREW,Hex, M6 x 1 x 16mm, Cl 10.9

M6 x 16; 10.9

8шт.

11

J945930

BEARING SET

Standard

6шт.

11

J945931

BEARING SET

Undersize 0.25 mm

6шт.

11

J945932

BEARING SET

Undersize 0.50 mm

6шт.

11

J945933

BEARING SET

Undersize 0.75 mm

6шт.

11

J945934

BEARING SET

Undersize 1.00 mm

6шт.

12

J945929

THRUST BEARING

Standard

1шт.

12

J945922

THRUST BEARING

Undersize 0.25 mm

1шт.

12

J945923

THRUST BEARING

Undersize 0.50 mm

1шт.

12

J945924

THRUST BEARING

Undersize 0.75 mm

1шт.

12

J945925

THRUST BEARING

Undersize 1.00 mm

1шт.

12

J945926

THRUST BEARING

Standard, Oversize 0.25 mm

1шт.

12

J945927

THRUST BEARING

Standard, Oversize 0.50 mm

1шт.

12

J945928

THRUST BEARING

Undersize 0.50 mm, Oversize 0.50 mm

1шт.

13

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

Order A77790

1шт.

14

A77790

SEAL KIT

Crankshaft, Front, Standard, Incl 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL, Incl in 14

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL, Incl in 14

1шт.

17

NSS

NOT SOLD SEPARAT

TOOL, Incl in 14

1шт.

18

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

1шт.

19

A77808

SERVICE KIT

Crankshaft, Front, Incl 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE, Incl in 19

1шт.

21

NSS

NOT SOLD SEPARAT

TOOL, Incl in 19

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL, Incl in 19

1шт.

23

J924987

SHIELD,77.14mm ID x 89.38mm OD x 6.35mm Thk

1шт.

24

J934486

SERVICE KIT

Crankshaft Oil Seal, Rear, Standard, Incl 25, 26

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL, Incl in 24

1шт.

26

NSS

NOT SOLD SEPARAT

TOOL, Incl in 24

1шт.

27

A77810

SERVICE KIT

Crankshaft, Rear Oil Seal, Oversize, Incl 28, 29

1шт.

28

NSS

NOT SOLD SEPARAT

SLEEVE, Incl in 27

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL, Incl in 27

1шт.

30

87423334

SEAL,129.5mm ID x 148.45mm OD x 6.5mm Thk

Dust

1шт.

30

87434865

SEAL

Dust, Oversize

1шт.

34

87335719

RING

Speed Indicator

1шт.

35

87335729

BOLT

M6 x 1 x 12

4шт.

36

J329899

DOWEL,5.01mm OD x 10mm L

1шт.

Выбрано товаров: 60
