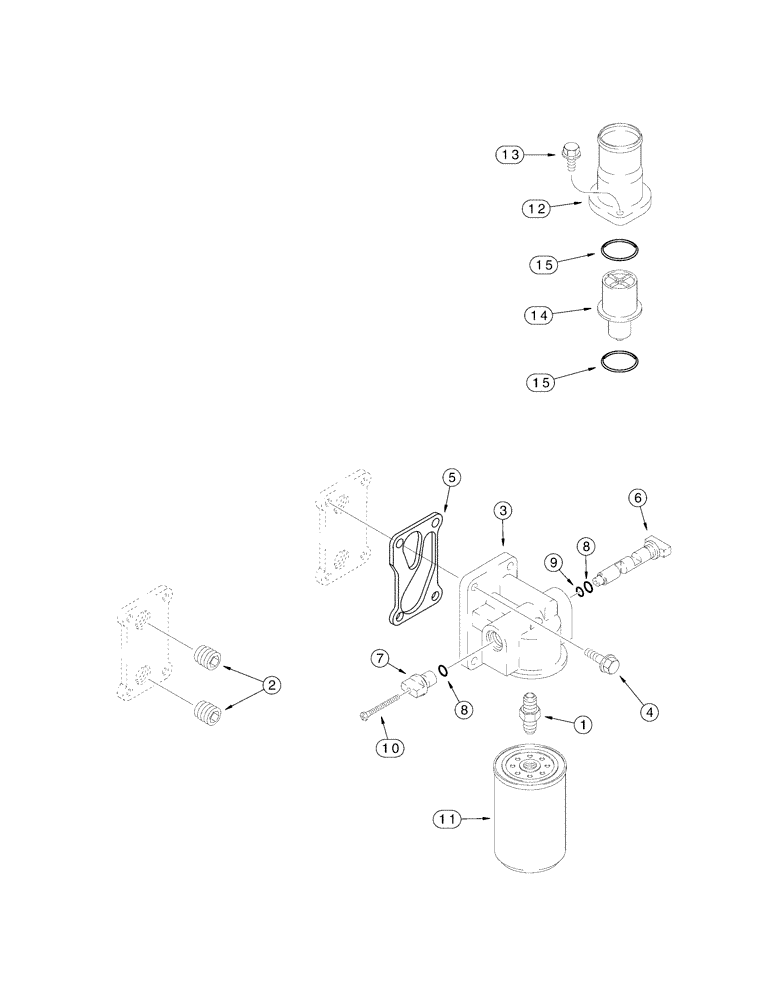

Запчасти Case IH MX305 (02-22) - THERMOSTAT - FILTER, WATER (02) - ENGINE

1

A77623

ADAPTER,3/4" - 10 x 11/16" - 16

1шт.

2

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

2шт.

3

J943738

FILTER HEAD

1шт.

4

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

4шт.

5

87612306

GASKET,1.15mm Thk

1шт.

6

J943739

SHUT-OFF VALVE

1шт.

7

J943740

SHUT-OFF VALVE

1шт.

8

87423041

O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro

7/16 ID x 3/32

2шт.

9

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

10

J944454

SELF-TAP SCREW,#6 - 20 x 1 3/8"

1шт.

11

84605017

COOLANT FILTER

1шт.

12

J944429

OUTLET

1шт.

13

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

14

84427136

THERMOSTAT

1шт.

15

238-5227

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

2шт.
