Запчасти Case IH MX305 (09-33) - SEAT - POSITIVE RESPONSE SUSPENSION ASSEMBLY (09) - CHASSIS/ATTACHMENTS

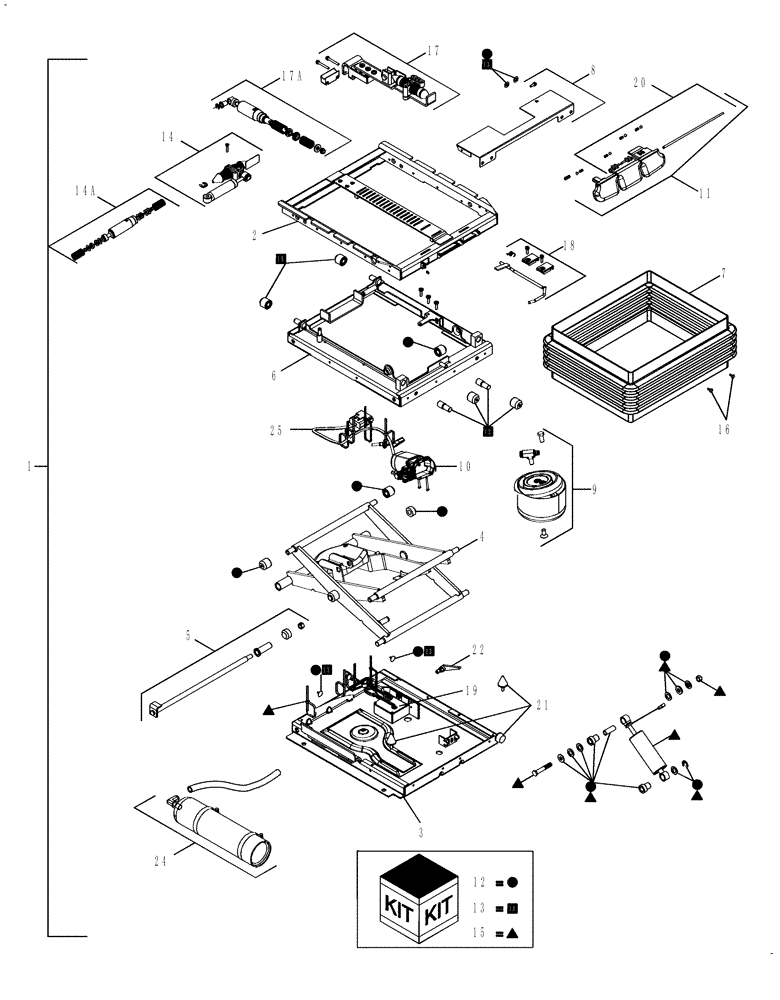

Схема запчастей Case IH MX305 - (09-33) - SEAT - POSITIVE RESPONSE SUSPENSION ASSEMBLY (09) - CHASSIS/ATTACHMENTS
7
19
12
13
15
14
13
13
12
12
13
15
2
15
16
8
25
11
12
15
4
15
6
10
12
12
12
12
17a
13
12
15
3
13
13
1
5
15
21
12
9
12
15
14a
15
20
18
17
24
22
12

Артикул

Название

Примечание

Количество

1

87395381

SUSPENSION

Suspension, Inc. 2 - 25, Used With 87643377, 87433299, 87433297 and 87553442 Seat Assembly

1шт.

1

84162213

SERVICE KIT

Inc.2 - 13, 14A, 15 - 16, 17A, 18 - 25, Used With 84162210 and 84162212 Seat Assembly

1шт.

2

87395392

HOUSING

Upper, Used With 87643377, 87433299, 87433297 and 87553442 Seat Assembly

1шт.

2

333274A1

ISOLATOR

Upper, Used With 84162210 and 84162212 Seat Assembly

1шт.

3

86994256

HOUSING

Lower

1шт.

4

86994258

ARM

1шт.

5

302033A1

SHAFT

Bearing

1шт.

6

87395393

HOUSING

Upper, Used With 87643377, 87433299, 87433297 and 87553442 Seat Assembly

1шт.

6

333273A1

HOUSING

Upper, Used With 84162210 and 84162212 Seat Assembly

1шт.

7

87347943

SERVICE KIT

Suspension Boot

1шт.

8

302029A2

PLATE

Cover

1шт.

9

333279A2

KIT

Air Spring

1шт.

10

87347951

SERVICE KIT

Compessor

1шт.

11

87407047

SERVICE KIT

Knobs

1шт.

12

87347945

BEARING ASSY

Suspension Bearing And Rollers

1шт.

13

87347946

SERVICE KIT

Isolator Rollers

1шт.

14

87395394

SERVICE KIT

Lateral Isolator Shock Absorber, Used With 87643377, 87433299, 87433297 and 87553442 Seat Assembly

1шт.

14a

87347947

SERVICE KIT

Lateral Isolator Shock Absorber, Used With 84162210 and 84162212 Seat Assembly

1шт.

15

86994260

SERVICE KIT

Shock

1шт.

16

333659A1

PACKAGE,SERVICE

Boot Pin

1шт.

17

87395395

KIT

Fore And Aft Shock Absorber, Used With 87643377, 87433299, 87433297 and 87553442 Seat Assembly

1шт.

17a

87347948

SERVICE KIT

Fore And Aft Shock Absorber, Used With 84162210 and 84162212 Seat Assembly

1шт.

18

373470A2

KIT

Fore And Aft Isolator Control

1шт.

19

87395396

DAMPER

Control Kit

1шт.

20

373473A1

PACKAGE,SERVICE

Lateral Isolator Control

1шт.

Contains 1 Knob and 1 Long Pin

1шт.

21

333295A1

BUMPER

Suspension Bumper

1шт.

22

86994267

LEVER

Suspension Shock Cable

1шт.

23

333296A1

SERVICE KIT

Fore And Aft Isolator Shock Block (Not Shown), Used With 84162210 and 84162212 Seat Assembly

1шт.

24

87347960

SERVICE KIT

Air Tank

1шт.

25

87396231

SERVICE KIT

Air Tank Hose

1шт.

Выбрано товаров: 31
