Запчасти Case IH MX305 (09-31) - SEAT - CUSHION ASSEMBLY WITH HEAT, WITH POSITIVE RESPONSE SUSPENSION (09) - CHASSIS/ATTACHMENTS

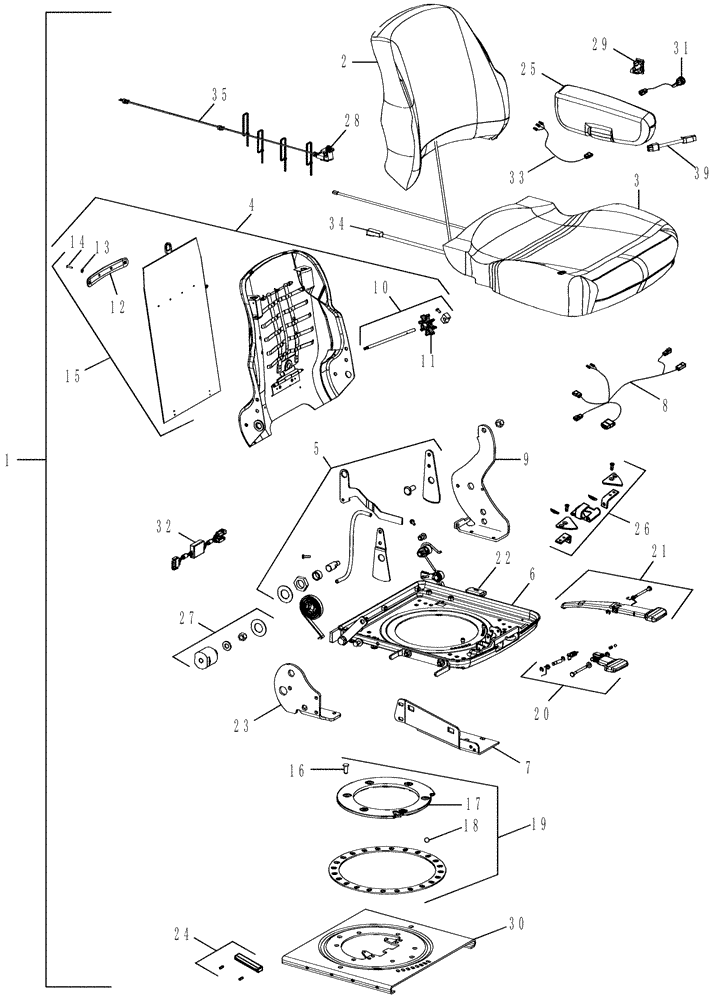

Схема запчастей Case IH MX305 - (09-31) - SEAT - CUSHION ASSEMBLY WITH HEAT, WITH POSITIVE RESPONSE SUSPENSION (09) - CHASSIS/ATTACHMENTS
27
3
30
8
31
4
32
9
15
22
25
7
5
35
19
26
16
18
14
23
34
28
12
33
29
2
20
1
13
10
6
11
39
17
21
24

Артикул

Название

Примечание

Количество

1

87395376

SEAT ASSY.

Assembly, Used With 87433299 Seat Assembly

1шт.

1

87607884

SERVICE KIT

Assembly, Used With 87553442 and 84162212 Seat Assembly

1шт.

1

87395377

CUSHION

Assembly, Used With 87433297 Seat Assembly

1шт.

1

87714731

SEAT ASSY.

Assembly, Used With 87643377 and 84162212 Seat Assembly

1шт.

2

87395385

CUSHION

Back, Cloth, Wheat, 3 Position Heat, Used With 87433299 Seat Assembly

1шт.

2

87607891

CUSHION

Back, Cloth, Wheat, 2 Position Heat, Used With 87643377 Seat Assembly

1шт.

2

87758231

CUSHION

Back, Cloth, Confetti-Wheat, 2 Position Heat, Used With 84162210 Seat assembly

1шт.

2

87397614

SEAT CUSHION

Back, Leather, Red, 3 Position Heat, Used With 87553442, 87433297 and 84162212 Seat Assembly

1шт.

3

87395384

SEAT CUSHION

Bottom, Cloth, Wheat, 3 Position Heat, Used With 87433299 Seat Assembly

1шт.

3

87607890

SEAT CUSHION

Bottom, Cloth, Wheat, 2 Position Heat, Used With 87643377 Seat Assembly

1шт.

3

87758230

SEAT CUSHION

Bottom, Cloth, Confetti-Wheat, 2 Position Heat, Used With 84162210 Seat Assembly

1шт.

3

87397613

CUSHION

Bottom, Leather, Red, 3 Position Heat, Used With 87433297 and 87553442 Seat Assembly

1шт.

3

87749241

SEAT CUSHION

Bottom, Leather, Red, 3 Position Heat, Used With 84162212 Seat Assembly

1шт.

4

86994155

ASSEMBLY

Backrest, Inc. 10, 15

1шт.

5

86994165

SEAT ACCESSORY

Recliner Kit, Inc. 22

1шт.

6

NSS

NOT SOLD SEPARAT

PAN, Seat

1шт.

7

86994157

BRACKET

Console Mount, Front, Used With 87433299 and 87433297 Seat Assembly

1шт.

8

87347944

SERVICE KIT

HARNESS, Seat and Suspension, Used With 87433299, 87553442, 87643377 and 87433297 Seat Assembly

1шт.

8

84143780

HARNESS

Seat and Suspension, Used With 84162210 and 84162212 Seat Assembly

1шт.

9

NSS

NOT SOLD SEPARAT

BRACKET

1шт.

10

87308130

SEAT BACK ADJUST DEV

Lumbar

1шт.

11

87037462

SEAT BACK ADJUST DEV

Lumbar

1шт.

12

NSS

NOT SOLD SEPARAT

SUPPORT, Manual Holder

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER, 1/8 x 23/64 x 3/64

4шт.

14

NSS

NOT SOLD SEPARAT

RIVET, Pop, 1/8

4шт.

15

86994172

SERVICE KIT

Operators Manual, Cloth, Inc. 12, 13, 14

1шт.

16

NSS

NOT SOLD SEPARAT

BOLT, Swivel Retainer

6шт.

17

NSS

NOT SOLD SEPARAT

RETAINER, Swivel

1шт.

18

NSS

NOT SOLD SEPARAT

BALL, 1/2

24шт.

19

87347936

SERVICE KIT

Swivel, Inc. 16, 17,18

1шт.

20

87347942

SERVICE KIT

Swivel Control; Does Not Include Control Cable, Order Seat Top Assy

1шт.

21

87347941

SERVICE KIT

Slide Control

1шт.

22

87416475

KNOB

Recliner Control

1шт.

23

NSS

NOT SOLD SEPARAT

BRACKET

1шт.

24

302016A1

PACKAGE,SERVICE

Slide Pucks

1шт.

25

86994250

ARMREST

Armrest, Left Hand, Cloth With Heat, Used With 87433299 Seat Assembly

1шт.

25

87620257

ARMREST

Armrest, Left Hand, Cloth With Heat, Used With 87643377 and 84162210 Seat Assembly

1шт.

25

87397616

ARMREST

Left Hand, Leather With Heat, Used With 87433297 Seat Assembly

1шт.

25

87620258

ARMREST

Left Hand, Leather With Heat, Used With 87553442 and 84162212 Seat Assembly

1шт.

26

87347934

LATCH

Slide

1шт.

27

87396230

BUSHING

KIT,Console, Used With 87433299 and 87433297 Seat Assembly

1шт.

28

86400227

SWITCH,Two Connectors, 90° Terminals

ASSY, Plunger SPST - Operators Present Switch

1шт.

29

87347940

ROCKER SWITCH

Air Control

1шт.

30

87347956

SERVICE KIT

Swivel, Used With 87433299, 87553442, 87643377 and 87433297 Seat Assembly

1шт.

31

87395388

SWITCH

Heater, 3 Position, Used With 87433299, 87553442 and 87433297 Seat assembly

1шт.

31

87749302

SWITCH

Heater, 3 position, Used With 84162212 Seat Assembly

1шт.

31

87607893

SWITCH ASSY

Heater, 2 Position, Used With 87643377 Seat Assembly

1шт.

31

87482028

SWITCH

Heater, 2 Position, Used With 84162210 Seat Assembly

1шт.

32

87395389

CONTROL

With Heat, Used With 87433299, 87553442 and 87433297 Seat assembly

1шт.

32

87482029

CONTROLLER

Heater, 2 Position, Used With 84162210 Seat Assembly

1шт.

32

87749303

CONTROL UNIT

Heater, Used With 84162212 Seat Assembly

1шт.

33

87395390

HARNESS

Heater Switch, Used With 87433299, 87553442 and 87433297 Seat assembly

1шт.

33

87482030

HARNESS

Heater, 2 position, Used With 84162210 Seat Assembly

1шт.

33

87749304

HARNESS

Heater, Used With 84162212 Seat Assembly

1шт.

34

NSS

NOT SOLD SEPARAT

HARNESS

1шт.

35

87568463

WIRE HARNESS

1шт.

36

87611650

SWITCH

Ride Control (Not Shown), Used With 87553442, 87643377, 84162210 and 84162212 Seat Assembly

1шт.

37

87626130

HARNESS

Ride Control (Not Shown), Used With 87553442, 87643377, 84162210 and 84162212 Seat Assembly

1шт.

38

87590287

SUPPORT

Lower (Not Shown), Used With 87553442, 87643377, 84162210 and 84162212 Seat Assembly

1шт.

39

87752587

HARNESS

Extension, Heat Controller

1шт.

Выбрано товаров: 60
