Запчасти Case IH MX305 (09-29) - SEAT - CUSHION ASSEMBLY WITHOUT HEAT, WITHOUT POSITIVE RESPONSE SUSPENSION (09) - CHASSIS/ATTACHMENTS

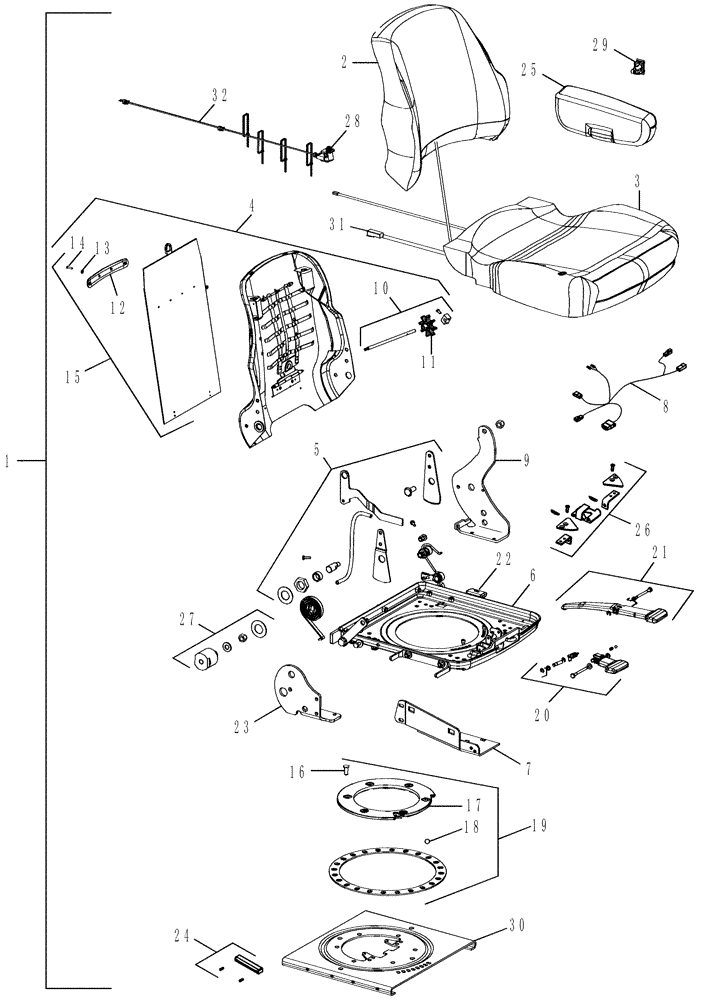

Схема запчастей Case IH MX305 - (09-29) - SEAT - CUSHION ASSEMBLY WITHOUT HEAT, WITHOUT POSITIVE RESPONSE SUSPENSION (09) - CHASSIS/ATTACHMENTS
9
20
27
14
30
1
13
7
2
24
6
21
29
5
8
15
12
25
17
3
11
22
26
16
28
23
10
4
19
31
18
32

Артикул

Название

Примечание

Количество

1

87347872

SEAT ASSY.

Assembly, Used With 87454957 Seat Assembly

1шт.

1

87607882

SERVICE KIT

Assembly (No Cushions), Used With 87553808 and 84162204 Seat Assembly

1шт.

2

373476A1

CUSHION

Back, Cloth, Wheat, Used With 87454957 and 87553808 Seat Assembly

1шт.

2

87758229

CUSHION

Back, Cloth, Confetti-Wheat, Used With 84162204 Seat Assembly

1шт.

3

87347893

SEAT CUSHION

Bottom, Cloth, Wheat, Used With 87454957 and 87553808 Seat Assembly; Incl 28, 31, 32

1шт.

3

87758228

SEAT CUSHION

Bottom, Cloth, Confetti-Wheat, Used With 84162204 Seat Assembly; Incl 28, 31, 32

1шт.

4

86994155

ASSEMBLY

Backrest, Incl 10, 15

1шт.

5

86994165

SEAT ACCESSORY

Recliner Kit, Incl 22

1шт.

6

NSS

NOT SOLD SEPARAT

PAN, Seat, Incl in 1

1шт.

7

86994157

BRACKET

Console Mount, Front, Used With 87454957 Seat Assembly

1шт.

8

87347944

SERVICE KIT

HARNESS, Seat and Suspension, Used With 87454957 and 87553808 Seat Assembly

1шт.

8

84143780

HARNESS

Seat and Suspension, Used With 84162204 Seat Assembly

1шт.

9

NSS

NOT SOLD SEPARAT

BRACKET, Incl in 1

1шт.

10

87308130

SEAT BACK ADJUST DEV

Lumbar

1шт.

11

87037462

SEAT BACK ADJUST DEV

Lumbar

1шт.

12

NSS

NOT SOLD SEPARAT

SUPPORT, Manual Holder, Incl in 15

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER, 1/8 x 23/64 x 3/64, Incl in 15

4шт.

14

NSS

NOT SOLD SEPARAT

RIVET, Pop, 1/8, Incl in 15

4шт.

15

86994172

SERVICE KIT

Operators Manual, Cloth; Incl 12, 13, 14

1шт.

16

NSS

NOT SOLD SEPARAT

BOLT, Swivel Retainer, Incl in 19

6шт.

17

NSS

NOT SOLD SEPARAT

RETAINER, Swivel, Incl in 19

1шт.

18

NSS

NOT SOLD SEPARAT

BALL, 1/2, Incl in 19

24шт.

19

87347936

SERVICE KIT

Swivel; Incl 16, 17, 18

1шт.

20

87347942

SERVICE KIT

Swivel Control; Does Not Include Control Cable, Order Seat Top Assy

1шт.

21

87347941

SERVICE KIT

Slide Control

1шт.

22

87416475

KNOB

Recliner Control

1шт.

23

NSS

NOT SOLD SEPARAT

BRACKET, Incl in 1

1шт.

24

302016A1

PACKAGE,SERVICE

Slide Pucks

1шт.

25

87347939

SERVICE KIT

Armrest, Left Hand, Cloth Without Heat

1шт.

26

87347934

LATCH

Slide

1шт.

27

87396230

BUSHING

KIT,Console, Used With 87454957 Seat Assembly

1шт.

28

86400227

SWITCH,Two Connectors, 90° Terminals

ASSY, Plunger SPST - Operators Present Switch

1шт.

29

87347940

ROCKER SWITCH

Air Control

1шт.

30

87347956

SERVICE KIT

Swivel

1шт.

31

NSS

NOT SOLD SEPARAT

HARNESS, Incl in 3

1шт.

32

NSS

NOT SOLD SEPARAT

HARNESS, Incl in 3

1шт.

33

87590287

SUPPORT

Lower (Not Shown), Used With 87553808 and 84162204 Seat Assembly

1шт.

Выбрано товаров: 37
