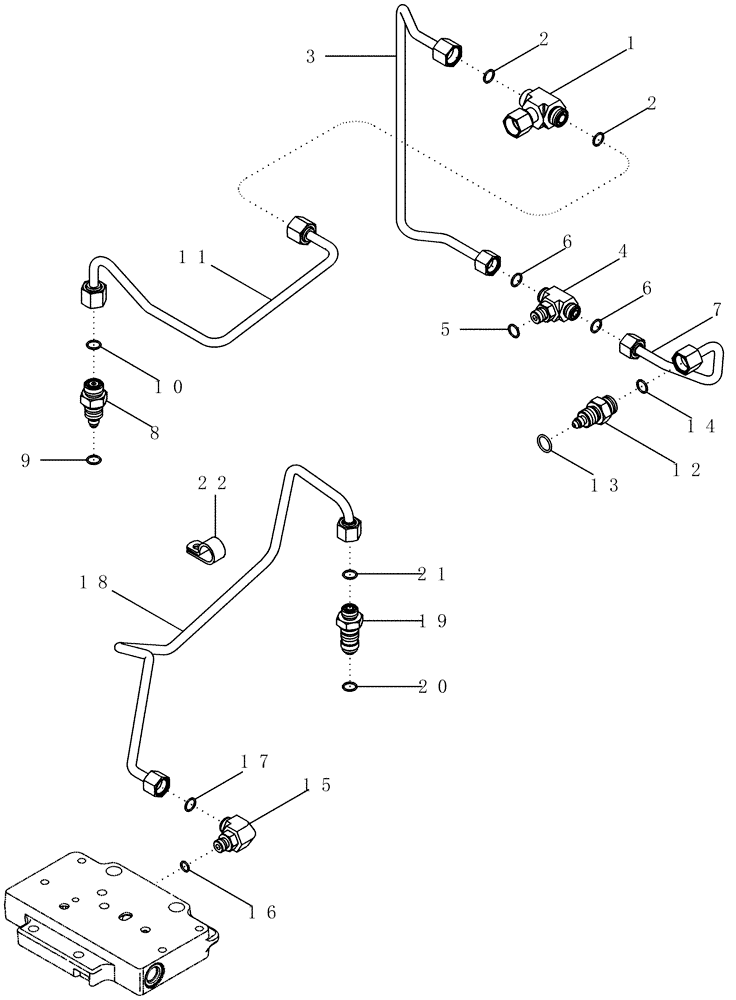

Запчасти Case IH MX305 (08-08) - HYDRAULIC SYSTEM - CREEP SPEED OR 50 KPH TRANSMISSION (08) - HYDRAULICS

1

701-411

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Inc. 2

1шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

3

87443738

HYD TUBE,0.375" OD

Dropbox Output Lube

1шт.

4

700-401

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Inc. 5, 6

1шт.

5

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

7

282278A1

HYD TUBE,0.375" OD, 120, 50 mm Length

1шт.

8

87341626

FITTING

2шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

10

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

11

87440741

PIPE

Creeper Lube, Years: -30-NOV-09

1шт.

11

87440741

PIPE

Creeper Lube; Not used after 11/2009

1шт.

11

84271241

TUBE

Creeper Lube, Start Year: 01-DEC-09

1шт.

12

93105C1

UNION

1шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 16, 17

1шт.

16

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

17

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

18

87446665

PIPE

Creeper Supply, Years: -30-NOV-05

1шт.

18

87446665

PIPE

Creeper Supply; Not used after 11/2005

1шт.

18

87342624

TUBE,0.375" OD

Creeper Supply, Start Year: 01-DEC-05

1шт.
