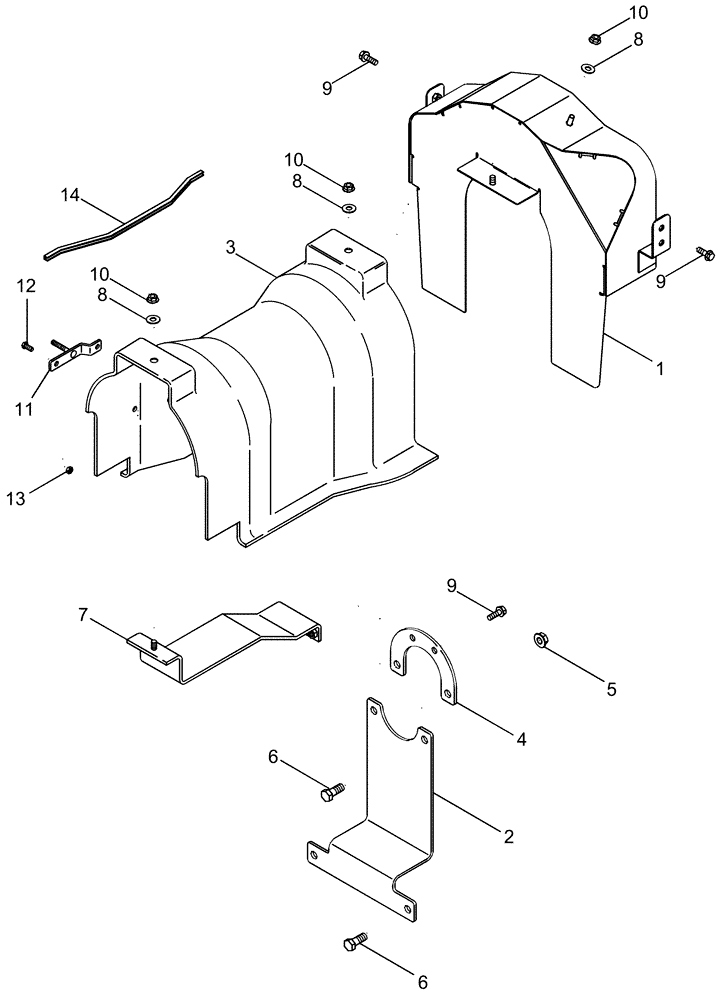

Запчасти Case IH MX305 (02-09) - FLYWHEEL SHIELDS, BSN Z6RZ02948 (02) - ENGINE

1

382150A1

PROTECTION PLATE

1шт.

2

382147A1

PROTECTION PLATE

1шт.

3

87367164

SHIELD

1шт.

4

87435601

PLATE ASSY.

1шт.

5

9804279

FLANGE NUT,Hex, M12, Cl 8

2шт.

6

854-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

4шт.

7

87435598

BRACKET

1шт.

8

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

9

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

6шт.

10

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

11

87367165

BRACKET

1шт.

12

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

13

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

14

87398578

SOFT TRIM

Edge, Black

1шт.

15

87545917

SERVICE KIT

Three Piece Shield Adapting, (Not Shown)

1шт.
