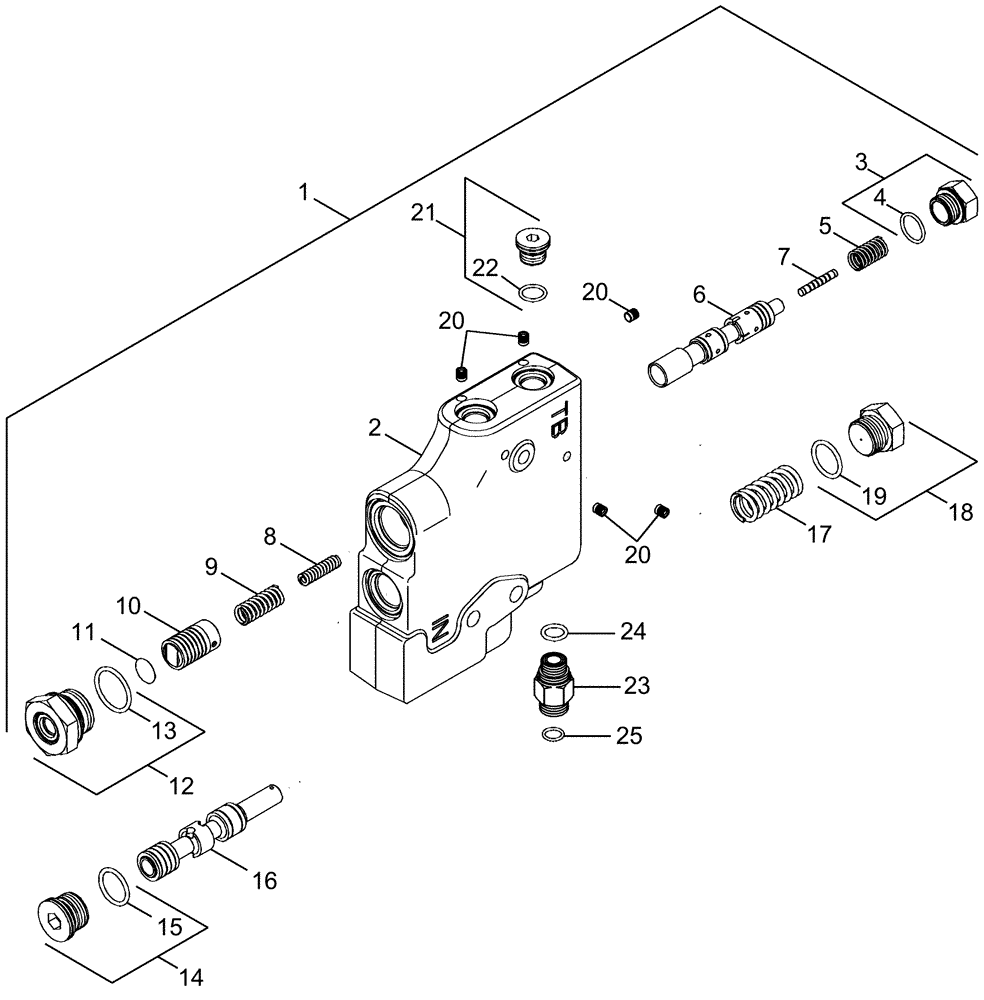

Запчасти Case IH MX305 (07-12) - VALVE - HYDRAULIC TRAILER BRAKE (07) - BRAKES

1

87324560

VALVE

Trailer Brake (Shown), Serial Range: -Z7RZ01521

1шт.

1

87740546

VALVE

Trailer brake, Start Serial: Z7RZ01521

1шт.

2

NSS

NOT SOLD SEPARAT

BODY

1шт.

3

87324557

STOP PLUG

Inc. 4

1шт.

4

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

5

87444752

BRAKE SPRING

1шт.

6

87324553

SPOOL

1шт.

7

86988723

SPOOL

Inner

1шт.

8

87444751

BRAKE SPRING

Inner

1шт.

9

87444750

BRAKE SPRING

Outer

1шт.

10

87312086

PISTON

Priority, Use with Valve 87324560

1шт.

10

86988724

PISTON

Priority, Use with Valve 87740546

1шт.

11

87311459

SHIM

Use with Valve 87324560, .12 mm (.005 in)

1шт.

11

87449989

SHIM,22.5mm OD x 0.28mm Thk

Use with valve 87740546

1шт.

12

87454597

PLUG

1шт.

13

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

14

221580A1

PLUG,M27 x 2 ORB

Inc. 15

1шт.

15

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

16

87324556

SPOOL

Priority (Shown), Serial Range: -Z7RZ01521

1шт.

16

87627346

SPOOL

Priority, Start Serial: Z7RZ01521

1шт.

17

408447A1

COMPRESSION SPRING

1шт.

18

87432142

PIPE FITTING

Orifice, Inc. 19 (Shown), Serial Range: -Z7RZ01521

1шт.

18

218-5212

PLUG,1-1/16" - 12 ORB

Inc. 19, Start Serial: Z7RZ01521

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

243756A1

PLUG

7 mm

5шт.

21

221578A1

PLUG,M18 x 1.5 ORB

Incl. 22

1шт.

22

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

23

223971A1

CHECK VALVE,11/16" - 16 ORFS x M14 x 1.5 ORB

, Start Serial: Z7RZ01521

1шт.

24

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

, Start Serial: Z7RZ01521

1шт.

25

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

, Start Serial: Z7RZ01521

1шт.
