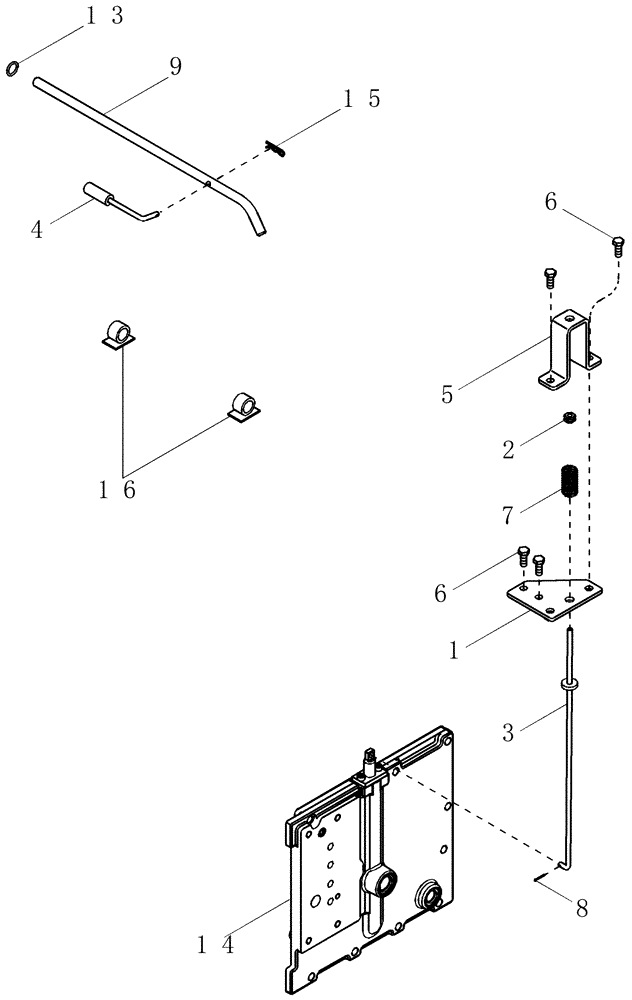

Запчасти Case IH MX305 (07-08) - PARK BRAKE - RELEASE (07) - BRAKES

1

87435703

PLATE

1шт.

2

248-2164

GROMMET,1/4" ID x 7/16" Groove Dia

1шт.

3

84170445

ROD

Parking Brake Release

1шт.

4

84170688

ROD

Parking Brake Release

1шт.

5

282624A1

SUPPORT

1шт.

6

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

7

282456A1

SPRING,21mm OD x 104mm L

1шт.

8

432-48

COTTER PIN,1/16" x 1/2"

1шт.

9

279763A2

BRAKE LEVER

Release

1шт.

13

638-53160

O-RING,2.65mm Thk x 16mm ID, Cl 5, 75 Duro

1шт.

14

87433653

PLATE ASSY.

1шт.

See Figure 06-04

1шт.

15

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

1шт.

16

169850C2

CABLE CLIP

2шт.
