Запчасти Case IH MX305 (02-06) - EXHAUST SYSTEM (02) - ENGINE

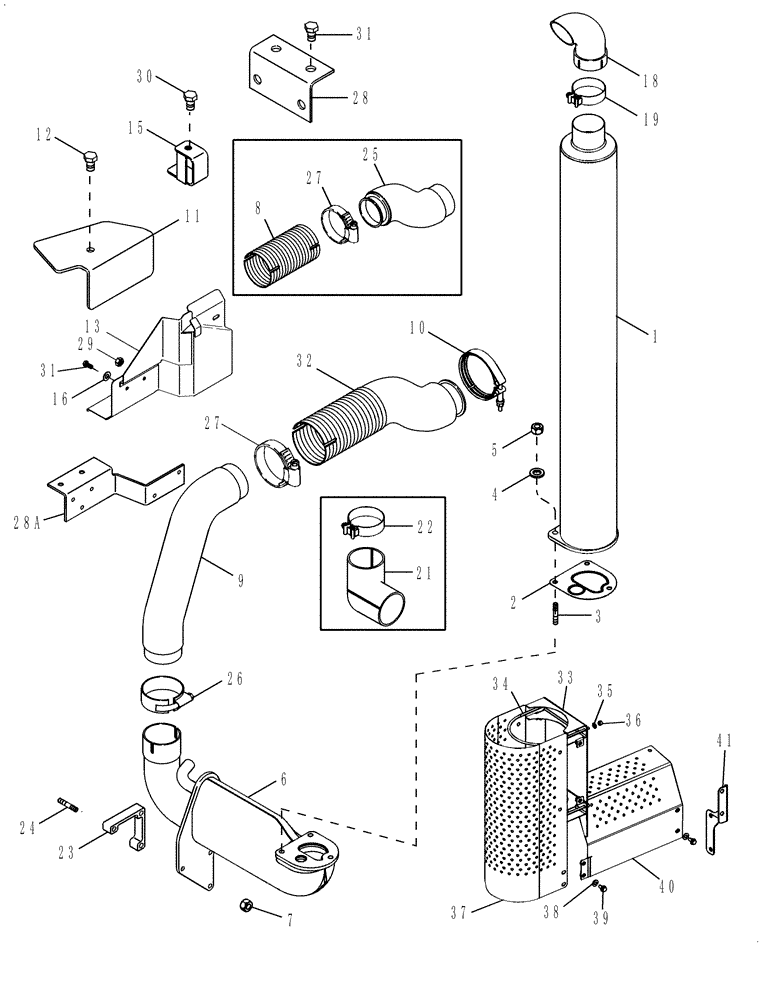

Схема запчастей Case IH MX305 - (02-06) - EXHAUST SYSTEM (02) - ENGINE
35
19
25
6
2
9
15
32
21
37
8
33
4
11
39
28
28a
27
16
10
30
41
40
38
36
31
24
3
7
12
13
22
23
5
26
34
27
1
31
29
18

Артикул

Название

Примечание

Количество

1

87369371

MUFFLER

Standard, With 4 in Exhaust Outlet, Serial Range: -Z7RZ02679

1шт.

1

87623383

MUFFLER,Aspirated

Standard, With 4.5 in Exhaust Outlet , Start Serial: Z7RZ02679

1шт.

1

87369363

MUFFLER

Spark Arrester, N.A. Only

1шт.

2

226775A1

GASKET,1.22mm Thk

1шт.

3

387795A1

STUD

3шт.

4

387798A1

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

5

387796A1

NUT

3шт.

6

87588155

EXHAUST SYSTEM PIPE

1шт.

7

829-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 10

3шт.

8

NSS

NOT SOLD SEPARAT

HOSE, FLEXIBLE, Serial Range: -Z6RZ02856

1шт.

Order REF 32 87520146 For Initial Replacement

1шт.

9

87388791

EXHAUST SYSTEM PIPE,101 mm ID x 118 mm OD

Incl. Insulation Wrap NSS

1шт.

10

A170807

CLAMP,102mm ID

Includes Hardware

1шт.

11

87451651

BRACKET

Manifold Shield

1шт.

12

844-10016

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

1шт.

13

87615756

SHIELD

Turbo Heat (Shown)

1шт.

MX215, 245, 275, 305, Magnum 215, 245, 275 and 305

1шт.

13

87715386

SHIELD

Turbo heat

1шт.

Magnum 335

1шт.

15

87615566

BRACKET

Heat Shield, Turbo

1шт.

16

495-81120

WASHER,.344" x 1 1/4" x .120"

3шт.

MX215, 245, 275, 305, Magnum 215, 245, 275 and 305

1шт.

16

495-81120

WASHER,.344" x 1 1/4" x .120"

5шт.

Magnum 335

1шт.

18

87381922

EXTENSION

Exhaust, Use With Muffler 87369371, 4 in ID, Serial Range: -Z7RZ02679

1шт.

18

87623361

EXTENSION

Exhaust, Use With Muffler 87623383, 4.5 in ID , Start Serial: Z7RZ02679

1шт.

19

87449404

CLAMP,101.4mm ID

Use With Muffler 87369371, Serial Range: -Z7RZ02679

1шт.

19

A173381

CLAMP,117.7mm ID

Use With Muffler 87623383 , Start Serial: Z7RZ02679

1шт.

21

87483050

FOAM INSULATION

Exhaust

1шт.

22

214-3280

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm, W/ Liner

2шт.

23

87332194

SPACER

1шт.

24

87330610

STUD

3шт.

25

NSS

NOT SOLD SEPARAT

TUBE ASSY., Serial Range: -Z6RZ02856

1шт.

Order REF 32 87520146 For Initial Replacement

1шт.

26

87449404

CLAMP,101.4mm ID

1шт.

27

87427885

CLAMP,101.4mm ID

, Serial Range: -Z6RZ02856

2шт.

27

87427885

CLAMP,101.4mm ID

, Start Serial: Z6RZ02856

1шт.

28

87449823

BRACKET

Turbo Heat Shield

1шт.

MX215, 245, 275, 305, Magnum 215, 245, 275 and 305

1шт.

28a

87715390

BRACKET

Turbo heat Shield

1шт.

Magnum 335

1шт.

29

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

30

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

31

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

MX215, 245, 275, 305, Magnum 215, 245, 275 and 305

1шт.

31

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

5шт.

Magnum 335

1шт.

32

87520146

TUBE,583.5, 117 mm L

(Shown), Start Serial: Z6RZ02856

1шт.

MX215, 245, 275, 305, Magnum 215, 245, 275 and 305

1шт.

32

87714128

EXHAUST SYSTEM PIPE,583.5, 117 mm L

1шт.

Magnum 335

1шт.

33

84294230

BRACKET

Intake Stack Support

1шт.

34

84294356

U-BOLT

2шт.

35

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

36

412250

NUT,M8 x 1.25, Cl 8

4шт.

37

84294234

HEAT SHIELD

1шт.

38

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

9шт.

39

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

9шт.

40

84294232

HEAT SHIELD

Lower

1шт.

41

84294225

BRACKET

1шт.

Выбрано товаров: 60
