Запчасти Case IH MX305 (06-20) - RANGE TRANSMISSION - MFD CLUTCH AND PARK BRAKE - TRANSMISSION BSN AJB367211 (06) - POWER TRAIN

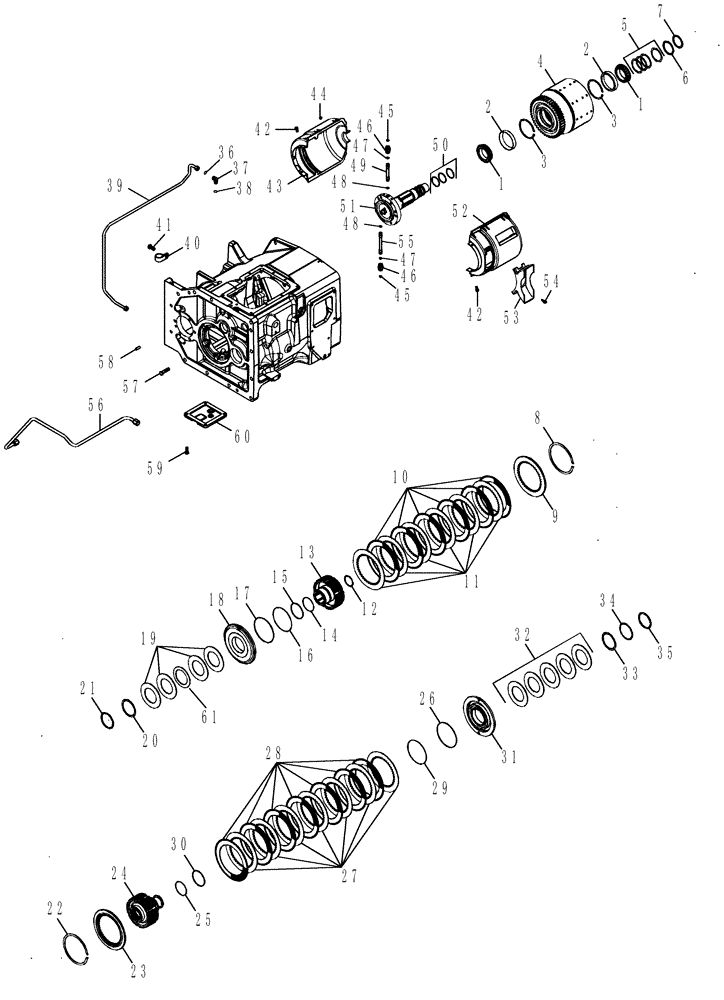

Схема запчастей Case IH MX305 - (06-20) - RANGE TRANSMISSION - MFD CLUTCH AND PARK BRAKE - TRANSMISSION BSN AJB367211 (06) - POWER TRAIN
32
8
23
6
2
27
17
18
49
42
42
40
54
50
22
61
4
59
33
15
52
19
3
45
28
24
25
1
29
44
45
43
31
48
11
46
21
57
56
41
36
35
58
13
10
14
30
20
9
39
1
12
34
16
38
37
60
3
46
51
48
53
7
2
47
5
26
47
55

Артикул

Название

Примечание

Количество

1

630694C1

BEARING CONE,64.98mm ID x 105mm OD x 24mm W

2шт.

2

86577049

TAPERED BEARING,65mm ID x 105mm OD x 24mm W

2шт.

3

101-21412

SNAP RING,#412, 4.430", Int

2шт.

4

87455297

GEAR

1шт.

5

138121A1

SHIM,65mm ID x 80mm OD x 0.2mm Thk

1шт.

5

1997893C1

SHIM,65.5mm ID x 80mm OD x 0.51mm Thk

1шт.

5

1997894C1

SHIM,65.5mm ID x 80mm OD x 0.56mm Thk

1шт.

5

1997895C1

SHIM,65.5mm ID x 80mm OD x 0.64mm Thk

1шт.

6

1277309C1

WASHER,65.25mm ID x 77mm OD x 3mm Thk

1шт.

7

1997891C1

SNAP RING

1шт.

8

87347811

CIRCLIP

1шт.

9

87329141

BACKING PLATE

1шт.

10

87449793

SEPARATOR

Plate

6шт.

11

87348160

PLATE

Friction

6шт.

MX215, 245, 275, 305, Magnum 215, 245, 275 and 305

1шт.

11

87378802

BRAKE PLATE

Friction

6шт.

Magnum 305 and 335

1шт.

12

101-11225

SNAP RING,#225, Ext

1шт.

13

87552528

HUB,6T Internal Plus 6 Gaps / 33T External Plus 6 Gaps

Park Brake

1шт.

14

87433971

SEAL,139.65mm ID x 143.05mm OD x 2.87mm Thk

1шт.

15

87037455

O-RING,0.103" Thk x 5.237" ID, -160, Cl 7, 75 Duro

1шт.

16

87433970

SEAL,85.4mm ID x 88.8mm OD x 2.87mm Thk

1шт.

17

238-7151

O-RING,0.103" Thk x 2.99" ID, -151, Cl 7, 75 Duro

1шт.

18

87337887

PISTON

1шт.

19

87305967

BELLEVILLE SPRING

5шт.

20

87329116

SHIM,84.5mm ID x 100mm OD x 1.52mm Thk

84.5 mm ID x 1.50 mm Thk

1шт.

21

87434027

CIRCLIP

1шт.

22

87347811

CIRCLIP

1шт.

23

87329141

BACKING PLATE

1шт.

24

87347832

HUB,24T Internal / 33T External Plus 6 Gaps

MFD

1шт.

25

87433971

SEAL,139.65mm ID x 143.05mm OD x 2.87mm Thk

1шт.

26

87037455

O-RING,0.103" Thk x 5.237" ID, -160, Cl 7, 75 Duro

1шт.

27

87348160

PLATE

Friction

6-7шт.

MX215, 245, 275, 305, Magnum 215, 245, 275 and 305

1шт.

27

87378802

BRAKE PLATE

Friction

8шт.

Magnum 305 and 335

1шт.

28

87449793

SEPARATOR

Plate

6-7шт.

MX215, 245, 275, 305, Magnum 215, 245, 275 and 305

1шт.

28

87449793

SEPARATOR

Plate

8шт.

Magnum 305 and 335

1шт.

29

87433970

SEAL,85.4mm ID x 88.8mm OD x 2.87mm Thk

1шт.

30

238-7151

O-RING,0.103" Thk x 2.99" ID, -151, Cl 7, 75 Duro

1шт.

31

87337887

PISTON

1шт.

32

87305967

BELLEVILLE SPRING

5шт.

33

87329116

SHIM,84.5mm ID x 100mm OD x 1.52mm Thk

84.5 mm ID x 1.50 mm Thk

1шт.

34

84278151

RETAINER

1шт.

35

87434027

CIRCLIP

1шт.

36

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

37

700-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Inc. 36, 38

1шт.

38

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

39

87307978

TUBE,0.50" OD

1шт.

40

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

41

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

42

87331111

HEX SOC SCREW,M8 x 16mm, Cl 8.8

M8 x 16; 8.8

4шт.

43

87337875

SHIELD

Lower Half

1шт.

44

87332637

CLIP

6шт.

45

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

46

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Inc. 45, 47

2шт.

47

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

48

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

4шт.

49

87425392

HYD TUBE,7.5 mm ID x 14.15 mm OD x 132 mm L

1шт.

50

445336A1

SEALING RING,Locking, 50.91mm ID x 54.91mm OD x 2.87mm Thk

SEALRING

3шт.

51

87536356

SHAFT

Inc. 58

1шт.

52

87337873

SHIELD

Upper Half

1шт.

53

87343231

SHIELD

Constant Mesh Gear

1шт.

54

87348536

RIVET,6.4mm OD x 22.8mm L

1шт.

55

120514C2

TUBE,7.47 mm ID, 11.85 mm OD

1шт.

56

124306A1

TUBE,12.7 mm OD, 469, 181 mm Length

1шт.

57

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

6шт.

58

837-10025

DOWEL,M10 x 25

1шт.

59

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

60

87327182

COVER

1шт.

See Figure 07-07

1шт.

61

87374800

SPACER

Spring, tapered 1.85 mm to 1.35 mm

1шт.

Выбрано товаров: 74
