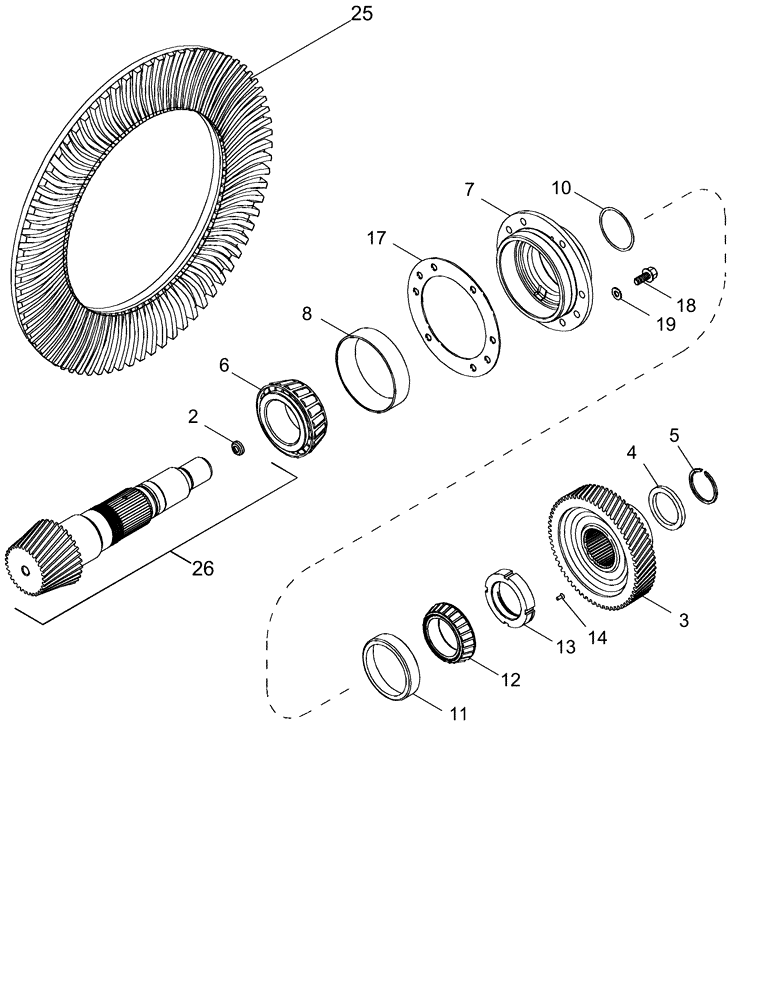

Запчасти Case IH MX305 (06-18) - TRANSMISSION - PINION SHAFT AND GEARS, MX305, MAGNUM 305, AND MAGNUM 335 (06) - POWER TRAIN

2

92825C1

CAP WASHER

1шт.

3

87615782

DRIVEN GEAR

46T

1шт.

4

87357632

SPACER,63.40mm ID x 82.55mm OD x 6.80mm Thk

6.8 mm (0.27 in)

1шт.

4

87357636

SPACER,63.40mm ID x 82.55mm OD x 7.60mm Thk

7.6 mm (0.30 in)

1шт.

4

87385427

SPACER,63.4mm ID x 82.55mm OD x 8.40mm Thk

8.4 mm (0.33 in)

1шт.

5

143906C1

SNAP RING

1шт.

6

87444653

BEARING ASSY,35.72mm ID x 25.4mm W

1шт.

7

87326161

CAGE

Inc. 8

1шт.

8

87444654

BEARING CUP,150mm OD x 49mm W

1шт.

87326998

KIT

Inc. 10

1шт.

10

87444780

SHIM,76mm ID x 85mm OD x 0.25mm Thk

(0.010")

1шт.

10

87444782

SHIM,76mm ID x 85mm OD x 0.38mm Thk

(0.015")

1шт.

10

87444783

SHIM,76mm ID x 85mm OD x 0.46mm Thk

(0.018")

1шт.

11

A67327

BEARING CUP,120 mm OD x 25 mm

1шт.

12

A67328

ROLLER BEARING,74.98mm ID x 29.5mm W

1шт.

13

87357631

LOCK NUT,M75 x 2

1шт.

14

87309531

HEX SOC SCREW,FLAT, M5 x 0.8 x 12mm, Cl 10.9

M5 x 12

2шт.

17

120977C1

SHIM,171mm ID x 228mm OD x 0.08mm Thk

2шт.

17

120978C1

SHIM,171mm ID x 228mm OD x 0.1mm Thk

2шт.

17

120979C1

SHIM,171mm ID x 228mm OD x 0.13mm Thk

2шт.

17

120980C1

SHIM,171mm ID x 228mm OD x 0.3mm Thk

2шт.

18

566-12035

12 PT SCREW,Flg, M12 x 35mm, Cl 12.9

6шт.

19

1251958C1

WASHER,13mm ID x 25.40mm OD x 1.367mm, HTS

6шт.

25

87341260

GEAR

GEAR

1шт.

26

87540639

MAIN SHAFT

11/54T, Inc. 2

1шт.
