Запчасти Case IH MX305 (02-03) - DEAERATION SYSTEM (02) - ENGINE

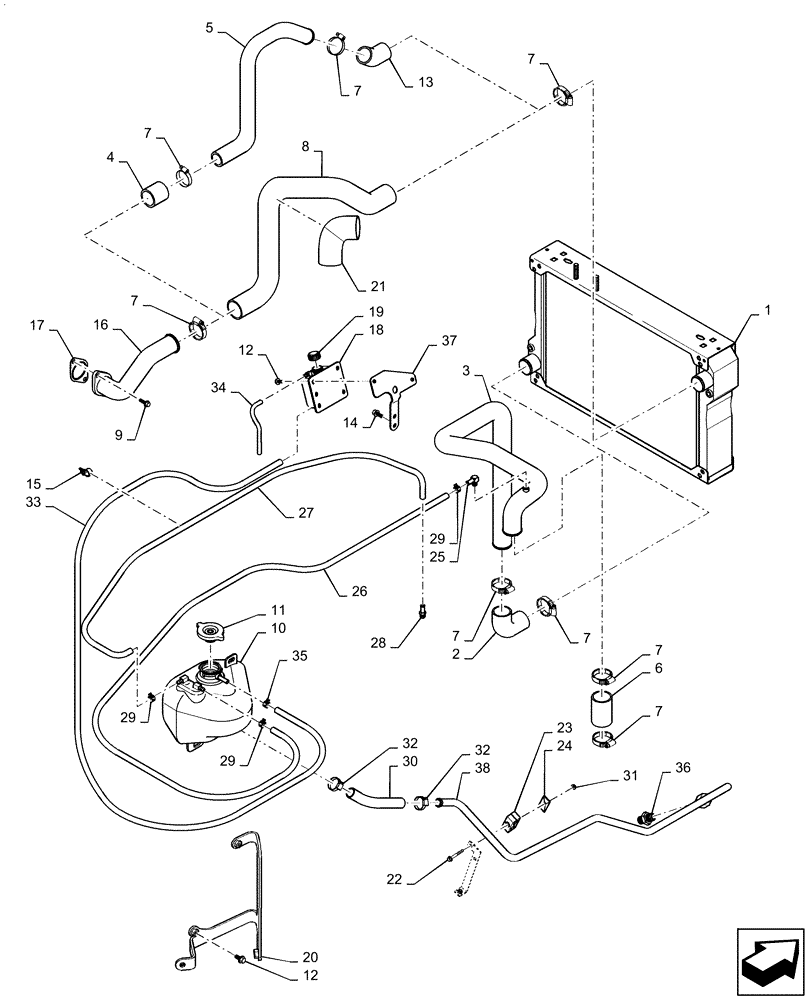

Схема запчастей Case IH MX305 - (02-03) - DEAERATION SYSTEM (02) - ENGINE
19
36
1
28
29
7
33
12
18
29
13
7
6
11
14
15
7
7
7
4
16
12
32
20
32
17
37
24
2
26
38
7
27
3
22
8
10
9
34
21
23
5
31
30
7
7
29
25
35

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

RADIATOR

1шт.

See Figure 02-02

1шт.

2

87381277

HOSE

Coolant

1шт.

3

87455330

TUBE,437.4 mm L

Radiator

1шт.

4

433405A1

RADIATOR HOSE,56.40 mm ID x 100.00, SAE J20 or SAE 20R4 CLASS D1

, Serial Range: -Z8RZ01721

1шт.

5

87455329

TUBE

Radiator, Serial Range: -Z8RZ01721

1шт.

6

433405A1

RADIATOR HOSE,56.40 mm ID x 100.00, SAE J20 or SAE 20R4 CLASS D1

1шт.

7

L115548

CLAMP,57.15mm - 79.38mm

1шт.

8

87733724

HOSE

Engine, Coolant Outlet, Inc. 21, If Used, Start Serial: Z8RZ01721

1шт.

8

84246483

HOSE

Engine, Coolant Outlet, With Spring Insert, Inc. 2, If Used, Start Serial: Z8RZ01721

1шт.

9

87403515

BOLT

M8 x 20; 8.8

2шт.

10

87413715

RESERVOIR

Deaeration Tank

1шт.

11

A170241

RADIATOR CAP

15 psi

1шт.

12

555-1

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

8шт.

13

255682A2

LARGE HOSE

Radiator, Serial Range: -Z8RZ01721

1шт.

14

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

3шт.

15

87445732

CLAMP

3шт.

16

87430751

TUBE,134, 115 mm L

1шт.

17

J945603

GASKET,1.65mm Thk

1шт.

18

L127093

RESERVOIR

1шт.

19

238903A1

FILLER CAP

1шт.

20

87339308

BRACKET

Deaeration Tank

1шт.

21

87733645

SLEEVE,64mm ID x 76.2mm OD x 540mm L

Protective

1шт.

22

844-8060

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

1шт.

23

118576A1

CLAMP

1шт.

24

1347127C1

PLATE

Clamp

1шт.

25

217-130

ELBOW,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1шт.

26

87442539

HOSE,6.35 mm ID x 1490.00 mm, SAE 30R7

1шт.

Cut From 382997C2

1шт.

27

87525458

HOSE,6.35 mm ID x 1790.00 mm, SAE 30R7

1шт.

Cut From 382997C2

1шт.

28

217-154

FITTING,1/4" Hose Barb x 1/4" Male NPTF

1шт.

29

87589798

HOSE CLAMP

0.5"

6шт.

30

87395776

HOSE

Deaeration Tank to Engine, 249 mm (9.8")

1шт.

Cut From 429211A1

1шт.

31

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

32

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

33

87338147

RADIATOR HOSE,6.35mm ID x 2225mm L

1шт.

Cut From 382997C2

1шт.

34

242070A1

HOSE,7.9mm ID x 450mm L, SAE 30R7

1шт.

35

214-1308

HOSE CLAMP,#8, 1/2", Spring

1шт.

36

218-536

ELBOW,45 Degree, 1 1/1"6-12, 37 Degree x 3/4"-14, NPTF

If Equipped

1шт.

36

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

Straight Connector, If Equipped

1шт.

37

87381548

BRACKET

Coolant Recovery Bottle

1шт.

38

87395778

TUBE

Use With 45 Degree Elbow

1шт.

38

87746650

TUBE,.75" OD

Use With Straight Fitting

1шт.

Выбрано товаров: 46
