Запчасти Case IH MX305 (04-49) - ACCUGUIDE CONTROL MODULE AND MOUNTING (04) - ELECTRICAL SYSTEMS

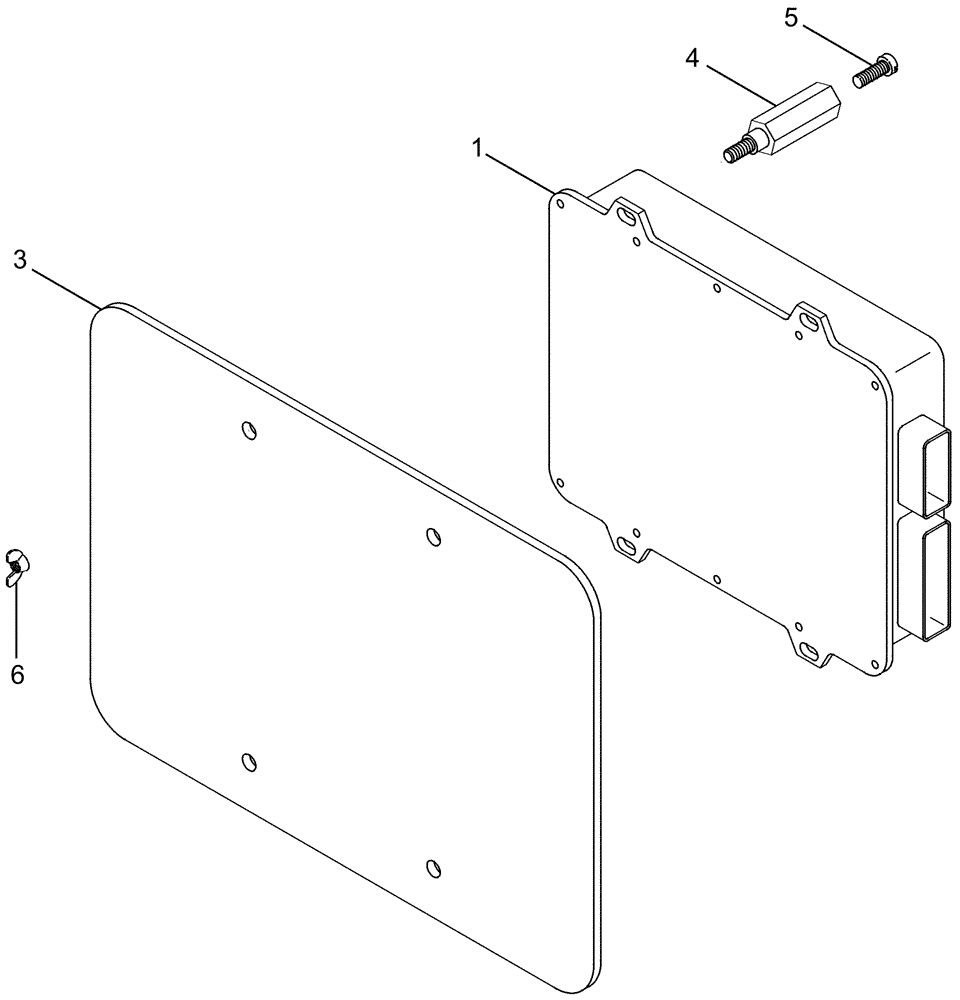

Схема запчастей Case IH MX305 - (04-49) - ACCUGUIDE CONTROL MODULE AND MOUNTING (04) - ELECTRICAL SYSTEMS
4
6
1
5
3

Артикул

Название

Примечание

Количество

1

87518983

CONTROLLER

KIT Accuguide

1шт.

1

87518983R

REMAN ELECT CONTROL

Remanufactured NAV II Control Module; For N.A. only

1шт.

1

87518983C

CORE-ELECTRONIC CONT

Return Number, MODULE - for N.A. Only

1шт.

3

87313018

COVER

Mounting (Shown), Serial Range: -Z6RZ04001

1шт.

3

87532159

COVER

Mounting, Start Serial: Z6RZ04001

1шт.

4

87313014

SPACER,M8 x 1.25

4шт.

5

555-1

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

4шт.

6

84814892

WING NUT,M6 x 1.0

4шт.

Выбрано товаров: 8
