Запчасти Case IH MX285 (04-27) - HEADLAMPS (04) - ELECTRICAL SYSTEMS

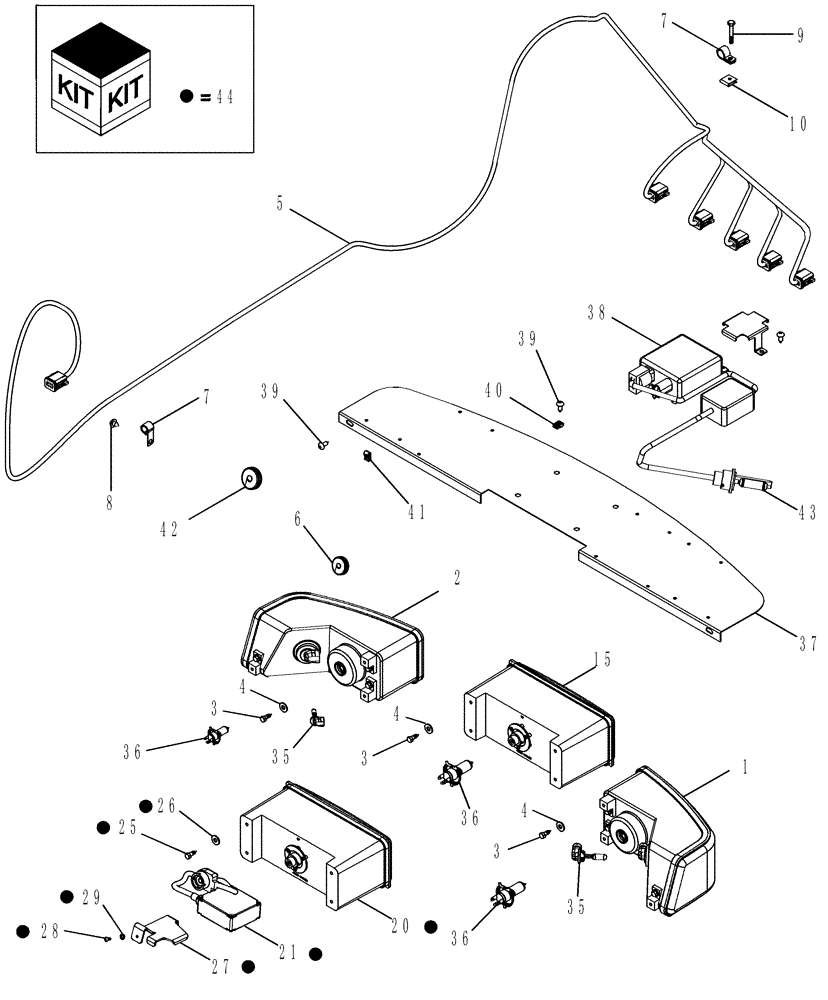

Схема запчастей Case IH MX285 - (04-27) - HEADLAMPS (04) - ELECTRICAL SYSTEMS
44
8
5
26
20
28
6
35
44
10
44
3
7
4
44
29
35
4
44
41
39
2
38
44
36
25
42
7
44
40
4
39
43
37
44
44
36
3
27
21
1
3
9
15
36

Артикул

Название

Примечание

Количество

1

87429390

RH HEADLAMP

RH Dip, Inc. 35, 36

1шт.

North America Only

1шт.

When Replacing Original Headlamp It is Recommended That Both Headlamps Are Changed.

1шт.

1

232450A2

HEADLIGHT,12V

Right Hand, LH Dip, Inc. 35, 36

1шт.

Australia Only

1шт.

2

87429389

LH HEADLAMP

RH Dip, Inc. 35, 36

1шт.

North America Only

1шт.

When Replacing Original Headlamp It is Recommended That Both Headlamps Are Changed.

1шт.

2

232451A2

HEADLIGHT,Halogen/Incandescent, 12V, Clear

Left Hand, LH Dip, Inc. 35, 36

1шт.

Australia Only

1шт.

3

779-14619

SELF-TAP SCREW,Hex Hd, M6.3 x 19

M6,3 st x 19

6шт.

North America Only

1шт.

4

495-21031

WASHER,1/4"

6шт.

North America Only

1шт.

4

259713A1

CLIP

(Not Shown)

6шт.

Australia Only

1шт.

5

436058A2

HARNESS

Without Front Hitch

1шт.

5

86987468

HARNESS

With Front Hitch

1шт.

6

411632A1

GROMMET

1шт.

7

516-22127

CLAMP,12.7mm ID, 8.7mm Bolt Hole, J Type

6шт.

8

93199C1

FASTENER

2шт.

9

1975782C1

SELF-TAP SCREW,Truss HD, #10 - 16 x 5/8"

4шт.

10

87016569

SPRING NUT,U, #10-16, Panel type

4шт.

15

232454A2

WORK LAMP,Halogen, 12V, 60W, Clear

Center, Work Lamp, Halogen, Inc. 36

1шт.

20

232455A2

WORK LAMP,HID, 12V, 35W, Clear

Center, Work Lamp, High Intensity Discharge - Includes Bulb (NSS due to cost)

1шт.

Also Order 322332A1 Ballast This Application

1шт.

21

322332A1

BALLAST

1шт.

25

779-14619

SELF-TAP SCREW,Hex Hd, M6.3 x 19

4шт.

26

495-21031

WASHER,1/4"

4шт.

27

319929A1

SUPPORT

1шт.

28

760-14313

SELF-TAP SCREW,Phillips Drive, Pan HD, M4.2 x 1.4 x 13mm

1шт.

29

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

35

323093A1

BULB

885-12V, Work Lamp

1шт.

36

87283179

BULB,H4, 12V, 60/55W

H4

1шт.

37

87371373

BRACKET, SUPPORTING

1шт.

38

87371375

BALLAST

3шт.

Parts can NOT be interchanged between systems. Bulb plugs into starter then starter into ballast.

1шт.

39

1975782C1

SELF-TAP SCREW,Truss HD, #10 - 16 x 5/8"

6шт.

40

131-642

SPRING NUT,Tinn, U, #10

4шт.

41

87016568

SPRING NUT,U, #10-16, Panel type

2шт.

42

411632A1

GROMMET

4шт.

43

87366792

BULB

HID w/Harness

3шт.

Parts can NOT be interchanged between systems. Bulb plugs into starter then starter into ballast.

1шт.

44

719619016

DIA KIT, ADD PROD

Front HID Light, Inc. 20, 21, 25 - 29

1шт.
