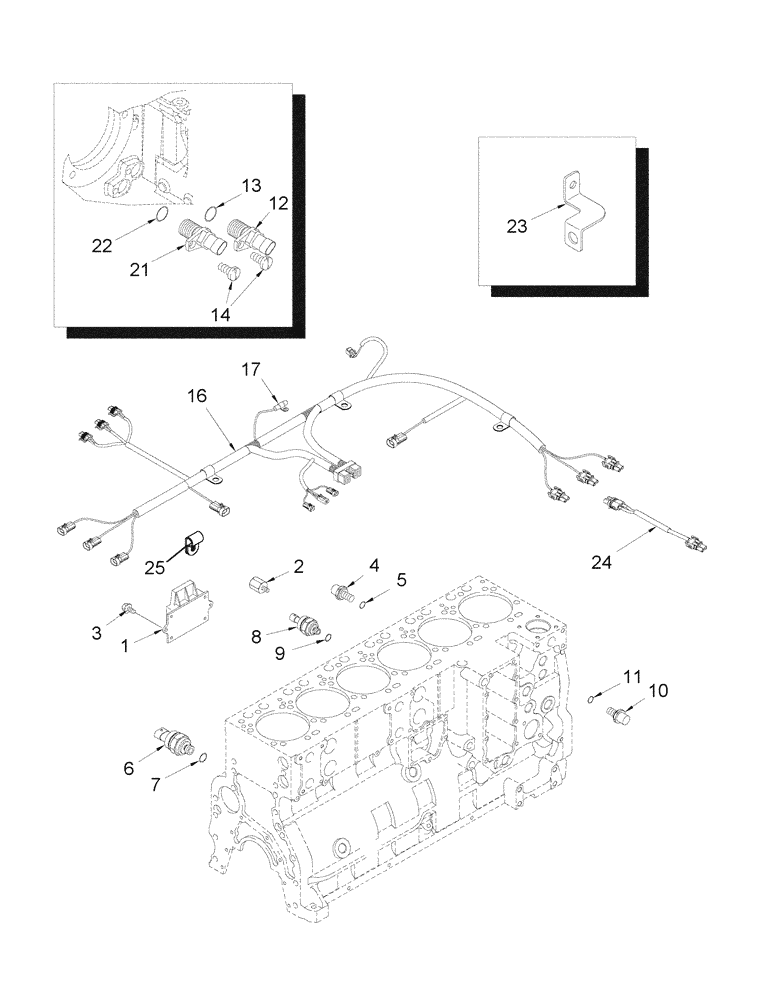

Запчасти Case IH MX285 (04-04) - MODULE, ENGINE CONTROL, MX255 AND MX285 (04) - ELECTRICAL SYSTEMS

1

J944125

ECU

New

1шт.

1

JR944125

REMAN-ELECT MONITOR

Reman-Monitor Control, Remanufactured

1шт.

1

JC944125

CORE-MONITOR

Return Part Number

1шт.

2

J936236

SPACER

2шт.

3

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

4

87559412

SENSOR

Air Pressure, Inc. 5

1шт.

5

J330202

O-RING,11.3MM ID x 2.2 Thk

1шт.

6

87400188

SENSOR

Oil Pressure, Inc. 7

1шт.

7

J330202

O-RING,11.3MM ID x 2.2 Thk

1шт.

8

87470173

SENSOR

Coolant Temperature, Inc. 9

1шт.

9

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

10

J408345

SENSOR

Intake manifold Temperature, Inc. 11

1шт.

11

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

12

87382544

SENSOR

Position, Inc. 13

1шт.

13

J330478

O-RING,0.07" Thk x 0.676" ID

1шт.

14

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

2шт.

16

87323950

WIRE HARNESS

Inc. 17 and 24, ASN JAZ128064 (MX255) and ASN JAZ128060 (MX285)

1шт.

16

87323974

WIRE HARNESS

Inc. 17, BSN JAZ128063 (MX255) and BSN JAZ128059 (MX285)

1шт.

17

J944110

SUPPRESSOR

Used With 18, 19, 20

1шт.

18

313490A1

BOLT

M10 x 14, Not Illustrated

6шт.

19

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

Not Illustrated

1шт.

20

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

Not Illustrated

1шт.

21

87400183

SENSOR

Position, Inc. 22

1шт.

22

87400235

O-RING,0.612" ID x 0.103" W

1шт.

23

87414641

BRACKET

Mounting, Engine Harness

1шт.

24

87330582

WIRE HARNESS

Coolant, Inc. 25

1шт.

25

J923016

CLIP

1шт.
