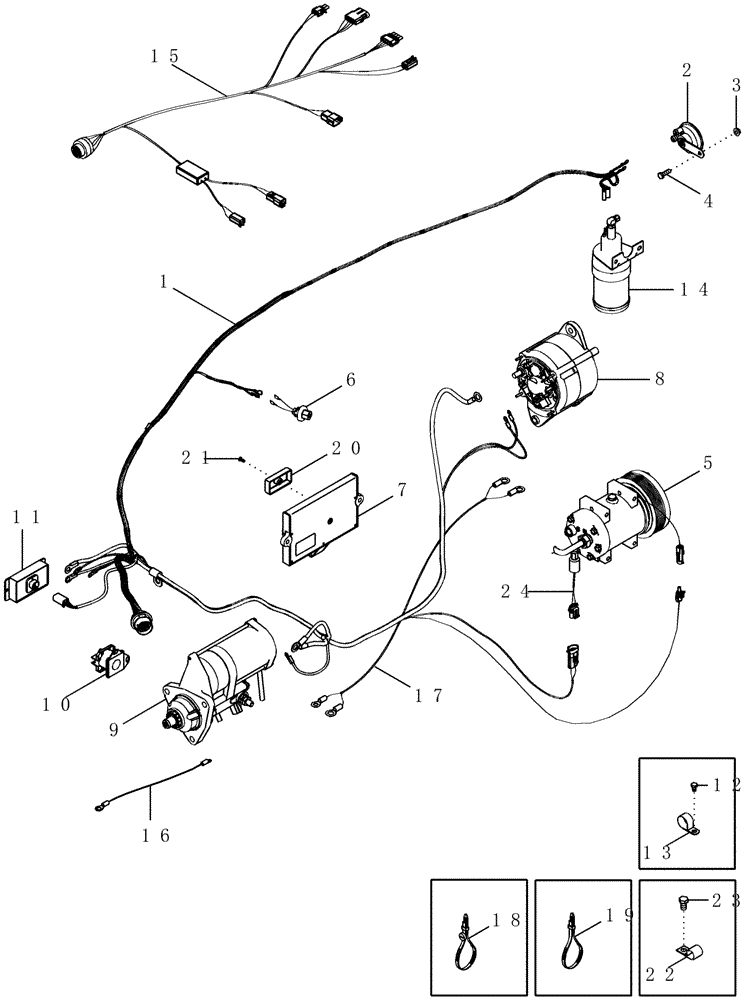

Запчасти Case IH MX285 (04-02) - HARNESS - ENGINE, MX255 AND MX285 (04) - ELECTRICAL SYSTEMS

1

87403845

HARNESS

Engine, Serial Range: -JAZ135316

1шт.

1

87452521

HARNESS

Engine, Start Serial: JAZ135316

1шт.

2

87049215

HORN

1шт.

3

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

4

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

5

REF

INSTRUCTION

Compressor Assy

1шт.

See Figure 09-42

1шт.

6

79081900

SENSOR

Air Filter

1шт.

7

REF

INSTRUCTION

Module

1шт.

See Figure 04-04

1шт.

8

REF

INSTRUCTION

Alternator Assy, Serial Range: -JAZ135316

1шт.

See Figure 04-18

1шт.

8

REF

INSTRUCTION

Alternator Assy, Start Serial: JAZ135316

1шт.

See Figure 04-19

1шт.

9

REF

INSTRUCTION

Starter Assy

1шт.

See Figure 04-21

1шт.

10

REF

INSTRUCTION

Solenoid

1шт.

See Figure 04-23

1шт.

11

REF

INSTRUCTION

Terminator

1шт.

See Figure 04-23

1шт.

12

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

13

336199

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

14

REF

INSTRUCTION

Solenoid Assy, Ether Start

1шт.

See Figure 02-07

1шт.

15

86983667

HARNESS

Engine Adapter, Serial Range: -JAZ128063

1шт.

MX255

1шт.

15

86983667

HARNESS

Engine Adapter, Serial Range: -JAZ128059

1шт.

MX285

1шт.

15

87414567

HARNESS

Engine Adapter, Start Serial: JAZ128064

1шт.

MX255

1шт.

15

87414567

HARNESS

Engine Adapter, Start Serial: JAZ128060

1шт.

MX285

1шт.

16

86985347

HARNESS

, Serial Range: Solenoid-Starter

1шт.

17

86983670

HARNESS,1150mm L

Alternator to Starter, Serial Range: -JAZ135316

1шт.

17

87452818

HARNESS

Alternator to Starter, Start Serial: JAZ135316

1шт.

18

87403339

CABLE TIE

CABLE STRAP

2шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

4шт.

20

279267A1

PLUG

1шт.

21

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

1шт.

22

229354A1

CLAMP,20.62mm ID, 12.7mm Bolt Hole, J Type

1шт.

23

615-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

1шт.

24

284273A2

SWITCH, A/C HIGH PRE

High Pressure A/C

1шт.
