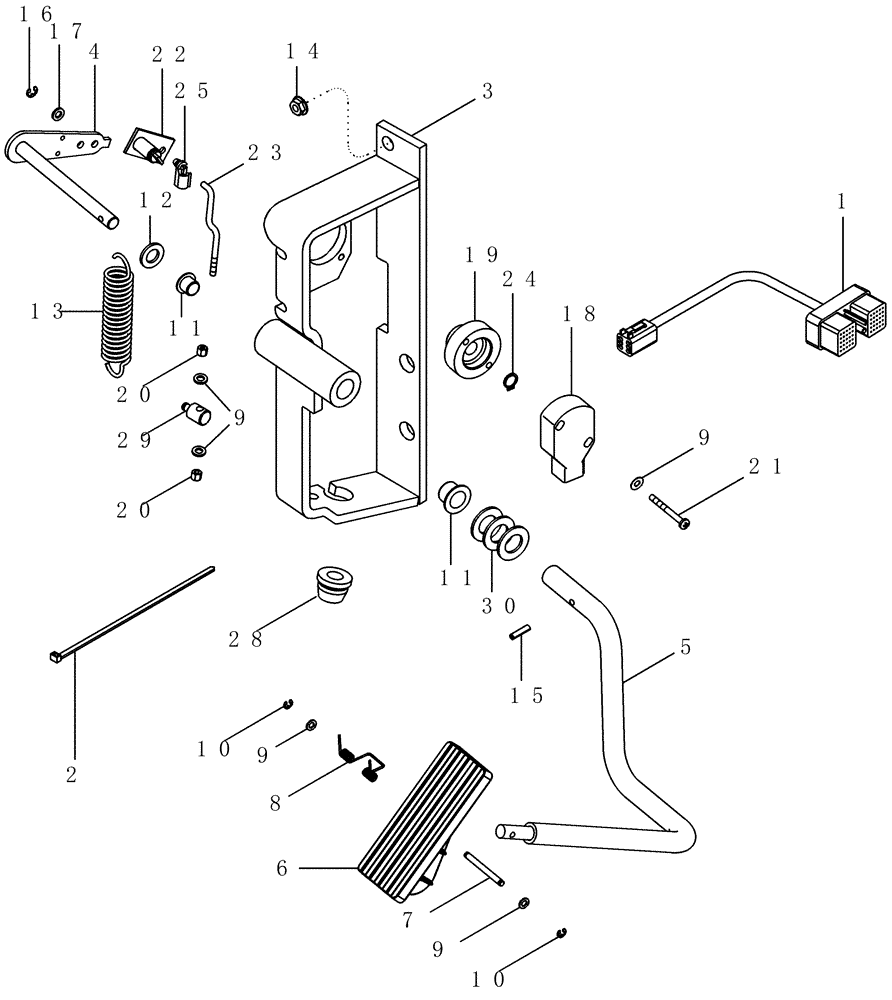

Запчасти Case IH MX285 (03-19) - FOOT THROTTLE, MX255 AND MX285 (03) - FUEL SYSTEM

1

86984487

HARNESS

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

12шт.

2

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

3шт.

3

404659A3

FRAME

1шт.

4

446487A1

LEVER

1шт.

5

446488A1

TUBE

1шт.

6

297853A2

PEDAL

1шт.

7

255291A1

PIN,5mm OD x 56mm L

1шт.

8

256776A1

SPRING

1шт.

9

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

6шт.

10

800-435

CIRCLIP,M5

2шт.

11

1533540C1

BUSHING,12mm ID x 14mm OD x 12mm L

2шт.

12

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

13

248913A2

SPRING

1шт.

14

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

3шт.

15

838-3528

PIN,M5 x 28, Coiled

1шт.

16

800-316

CIRCLIP,M6

6 mm

1шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

18

231426A1

POTENTIOMETER,2500 Ohm

1шт.

19

231410A1

BUSHING

1шт.

20

832-10405

NUT,M5 x .8, Cl 8

2шт.

21

840-1550

SCREW,Pan, M5 x 50mm, Cl 4.8

2шт.

22

322108A1

SUPPORT

1шт.

23

322109A1

ROD

1шт.

24

800-1112

SNAP RING,M12, Ext

1шт.

25

60-2404T1

RETAINER

1шт.

28

182220A1

GROMMET

1шт.

29

307475A1

PIVOT

1шт.

30

495-81020

WASHER,17/32" x 1" x .030"

17/32 x 1 x 1/32, Use As Required

3шт.
