Запчасти Case IH MX285 (03-06) - FUEL FILTER AND CONNECTIONS, MX255 AND MX285 (03) - FUEL SYSTEM

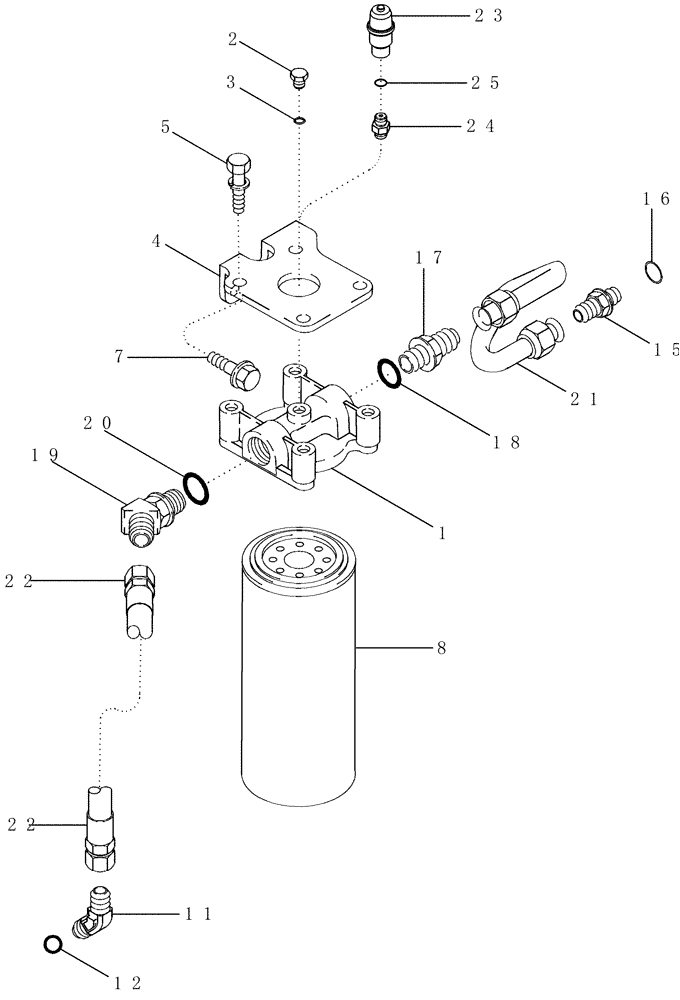

Схема запчастей Case IH MX285 - (03-06) - FUEL FILTER AND CONNECTIONS, MX255 AND MX285 (03) - FUEL SYSTEM
16
22
12
22
25
20
21
11
3
24
15
5
18
4
8
19
23
7
1
2
17

Артикул

Название

Примечание

Количество

1

J944987

HEAD

1шт.

2

J678923

PLUG,M10 x 1

10 mm, Inc. 3

1шт.

3

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

4

J944845

BRACKET

1шт.

5

A77546

BOLT,Hex, 3/8" - 16 x 1.25"

3/8 NC x 1-1/4 in

4шт.

7

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

8

J329289

FUEL FILTER

1шт.

11

311171A1

ELBOW

45 deg, Inc. 12

1шт.

12

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

1шт.

15

311187A1

ADAPTER

Inc. 16

1шт.

16

237-8012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 8, 90 Duro

3/4 OD Tube

1шт.

17

J606653

ADAPTER

Inc. 18

1шт.

18

237-8010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

1шт.

19

326380A1

ELBOW

Inc. 20

1шт.

20

237-8010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

1шт.

21

J943442

FUEL TUBE,0.625" OD

1шт.

22

J944988

FUEL HOSE,12.00"

1шт.

23

451023A1

INDICATOR

Fuel Restriction (If Equipped)

1шт.

24

250838A2

HYD CONNECTOR

Inc. 25 (If Equipped)

1шт.

25

86625087

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

(If Equipped)

1шт.

Выбрано товаров: 20
