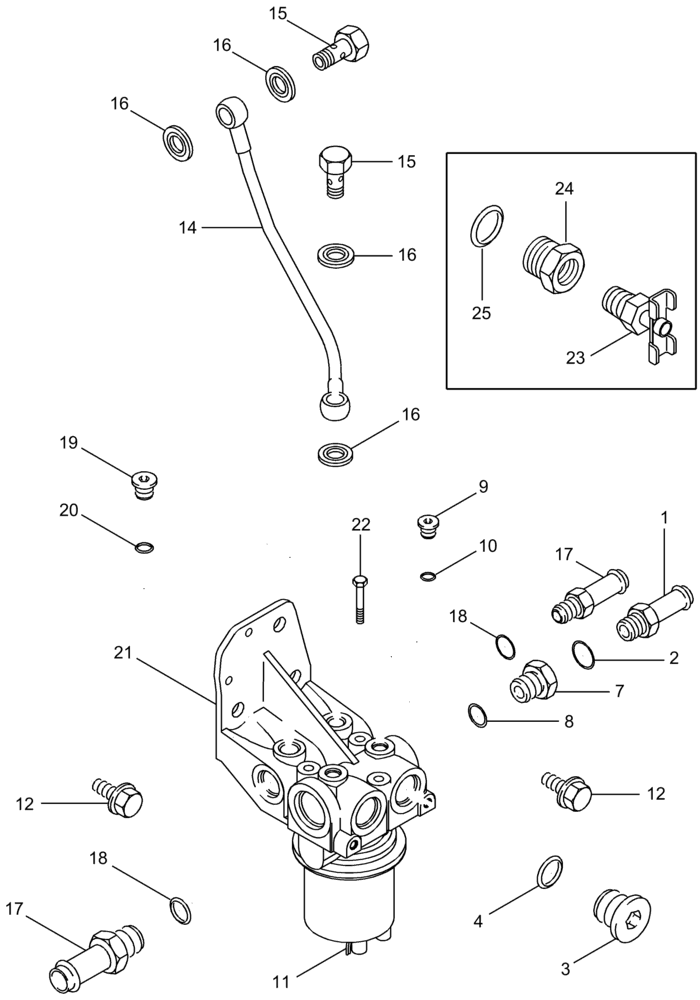

Запчасти Case IH MX285 (03-05) - PUMP, FUEL TRANSFER, MX255 AND MX285 (03) - FUEL SYSTEM

1

J931014

FITTING

Inc. 2

1шт.

2

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

1шт.

3

311184A1

PLUG

7/8-16, Inc. 4

2шт.

4

237-8010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

2шт.

7

J944823

ADAPTER

Includes 8

1шт.

8

237-8010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

1шт.

9

J678923

PLUG,M10 x 1

10 mm, Inc. 10

2шт.

10

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

11

87585287

FUEL PUMP

Inc. 9, 10, 21 - 23

1шт.

12

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

M10 x 20; 8.8

3шт.

14

J943599

FUEL TUBE,8 mm OD

1шт.

15

J903035

BANJO BOLT

M12 x 24

2шт.

16

J935171

SEALING WASHER

12 x 19 x 1,5 mm

4шт.

17

J944825

COUPLING

Inc. 18

2шт.

18

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

2шт.

19

J678921

PLUG

14 mm, Inc. 20

1шт.

20

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

21

NSS

NOT SOLD SEPARAT

Bracket

1шт.

22

414-432

BOLT,Hex, 1/4" - 28 x 2", Gr 5

1/4 x 2

3шт.

23

81465471

DRAINCOCK/TAP SUPPLY

1шт.

24

87448793

ADAPTER

Inc. 25

1шт.

With Fuel Separator Filter

1шт.

25

237-8010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

1шт.

With Fuel Separator Filter

1шт.
