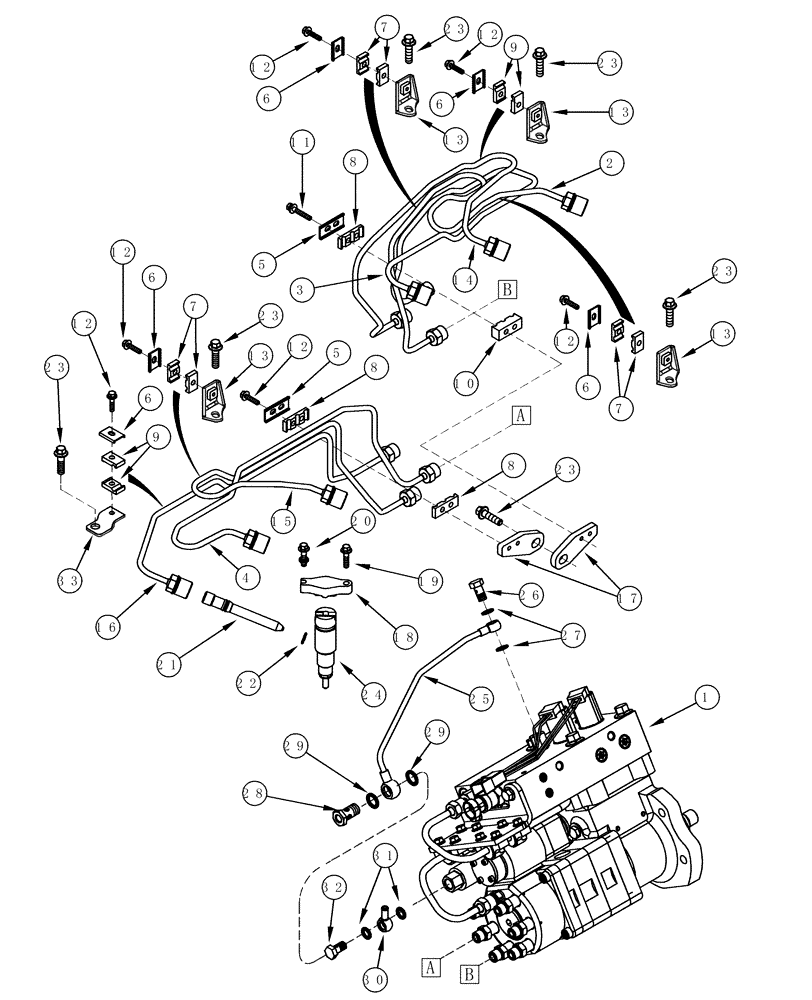

Запчасти Case IH MX285 (03-02) - FUEL INJECTION SYSTEM, MX255 AND MX285 (03) - FUEL SYSTEM

1

J4076442

FUEL INJECTION PUMP

Inc. 25 - 29

1шт.

See Figure 03-08

1шт.

1

JR4076442

REMAN-INJECTION PUMP

MX255, MX285

1шт.

1

JC4076442

CORE-INJECTION PUMP

Return Part Number

1шт.

1

A78006

KIT

Kit -- Instructions 6-10880 and Electrical Connector J164187

1шт.

1

87441514R

REMAN-FUEL INJECTOR

Reman For New P/N J4076442

1шт.

1

87441514C

CORE-FUEL INJECTOR

Return Part Number CORE - ICV Pump

1шт.

2

J944686

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L

No. 1

1шт.

3

J944690

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L

No. 3

1шт.

4

J944694

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L

No. 5

1шт.

5

J904519

SUPPORT

2шт.

6

CURJ904711

CLAMP

5шт.

7

J917746

CLAMP

6шт.

8

J917747

CLAMP

3шт.

9

J919359

CLAMP

4шт.

10

J944699

CLAMP

1шт.

11

J944717

CAPTIVE WASHER SCREW

1шт.

12

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

7шт.

13

J930688

SUPPORT

4шт.

14

J944688

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L

No. 2

1шт.

15

J944692

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L

No. 4

1шт.

16

J944696

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L

No. 6

1шт.

17

J944698

SUPPORT

2шт.

18

J940639

CLAMP

6шт.

19

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

6шт.

20

J940817

SCREW,Hex Flg, M6 x 1 x 25mm

6шт.

21

J944833

FUEL TUBE

6шт.

22

J867043

SEAL,1.78mm Thk x 10.82mm ID

6шт.

23

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

6шт.

24

J948529

INJECTOR ASSY.

6шт.

See Figure 03-15

1шт.

24

JR948529

REMAN-FUEL INJECTOR

Remanufactured Injection Nozzle

6шт.

24

JC948529

CORE-FUEL INJECTOR

Return Part Number, Injection Nozzle

6шт.

25

J4010174

FUEL TUBE,119, 189.7 mm L

1шт.

26

J918002

BANJO BOLT

1шт.

27

J935170

SPECIAL WASHER

2шт.

28

J4002006

BANJO BOLT,M14 x 1.5 x 26.40mm

1шт.

29

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

2шт.

30

J944869

HYD CONNECTOR

1шт.

31

87417768

SEALING WASHER,9.73 ID x 15.32mm OD x 1.27mm Thk

14 x 20 x 1 mm

2шт.

32

J924725

BANJO BOLT,M14 x 1.5 x 26mm

1шт.

33

J943503

SUPPORT

1шт.
