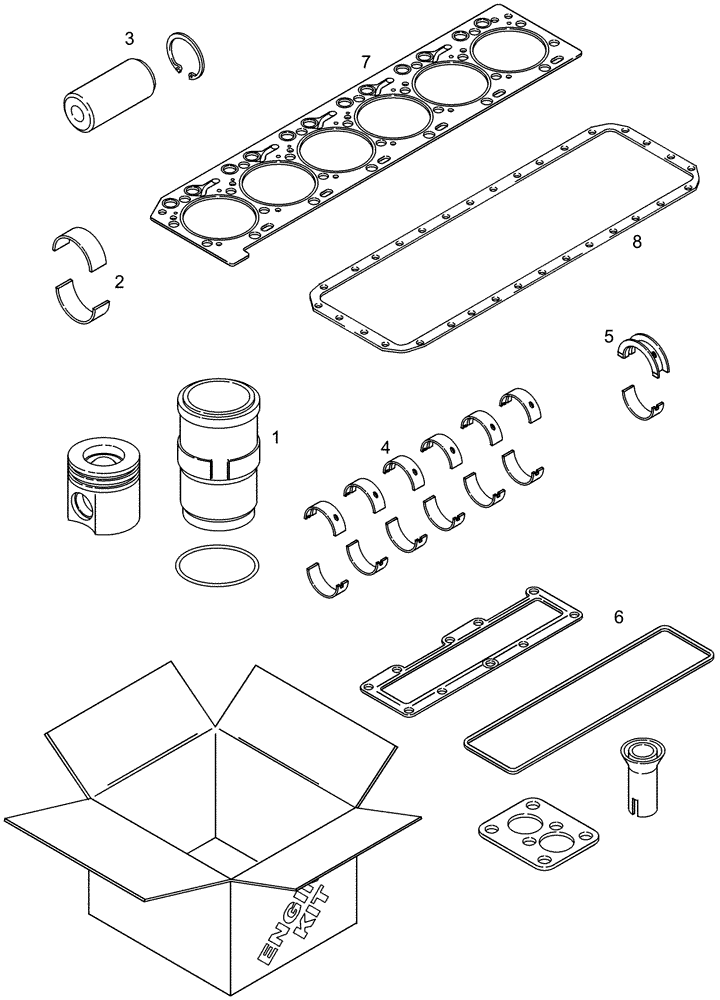

Запчасти Case IH MX285 (02-39) - KIT ENGINE OVERHAUL, MX255 AND MX285 (02) - ENGINE

A78019

ENGINE OVERHAUL KIT

Engine Overhaul Kit, Inc. 1 - 8

1шт.

MX255

1шт.

A78020

PACKAGE, REPAIR

Engine Overhaul Kit, Inc. 1 - 8

1шт.

MX285

1шт.

1

A77901

PISTON & RINGS KIT

Piston & Rings

6шт.

MX255

1шт.

See Figure 02-43

1шт.

1

A77970

PISTON & RINGS KIT

6шт.

MX285

1шт.

See Figure 02-43

1шт.

2

A77563

BEARING SET

Connecting Rod, Standard

6шт.

See Figure 02-43

1шт.

3

J934046

PISTON PIN,45mm OD x 91mm L

Piston

6шт.

See Figure 02-43

1шт.

4

J945930

BEARING SET

Standard

6шт.

See Figure 02-40

1шт.

5

J945929

THRUST BEARING

Thrust, Standard

1шт.

See Figure 02-40

1шт.

6

A78018

GASKET KIT

Valve Grind

1шт.

See Figure 02-45

1шт.

7

J943366

CYLINDER HEAD GASKET,2.11mm Thk

1шт.

See Figure 02-28

1шт.

8

A77999

GASKET KIT

Oil Pan

1шт.

See Figure 02-25

1шт.
