Запчасти Case IH MX285 (05.100.03[01]) - FILTERS, MX285 (18) - MISCELLANEOUS

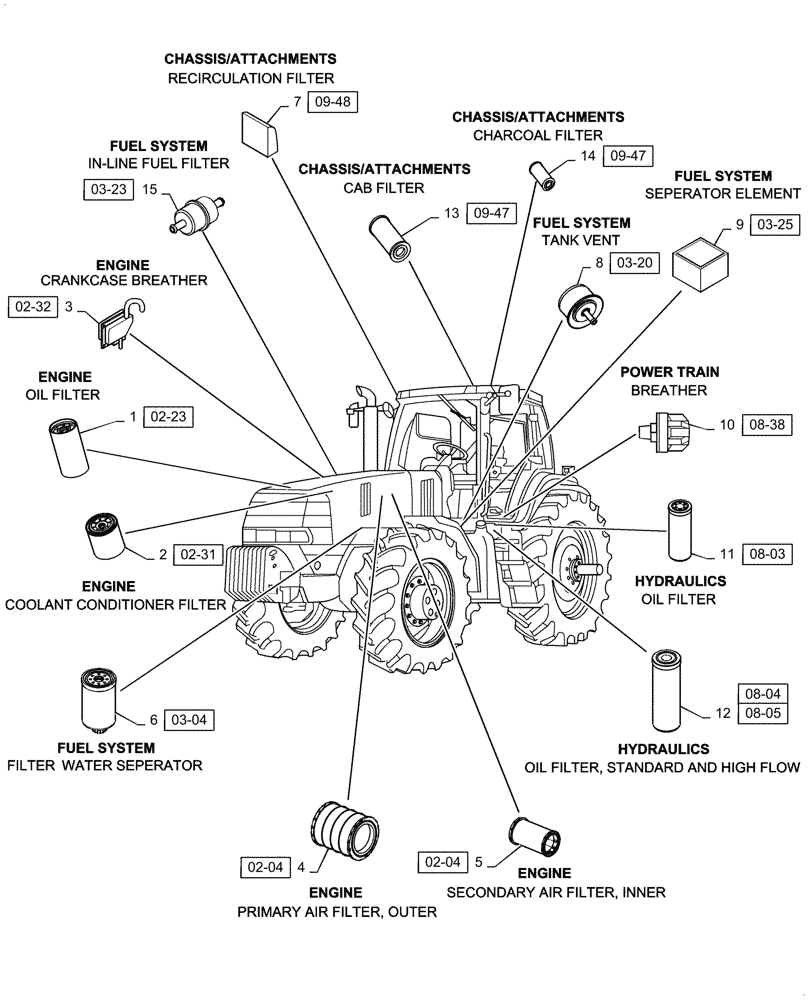

Схема запчастей Case IH MX285 - (05.100.03[01]) - FILTERS, MX285 (18) - MISCELLANEOUS
02-23
15
3
7
5
11
8
14
12
13
9
1
6
4
10
2
08-38
09-47
09-47
02-31
08-03
08-05
03-25
09-48
03-04
02-04
02-04
03-20
03-23
08-04
02-32

Артикул

Название

Примечание

Количество

1

J919562

ENGINE OIL FILTER

Spin-On

1шт.

2

J100304

FILTER

H20 Conditioning

1шт.

3

J937652

BREATHER

Crankcase

1шт.

4

367349A1

FILTER

Engine, Severe Duty

1шт.

4

294292A1

AIR CLEANER

Engine, Standard Duty

1шт.

5

294293A1

AIR FILTER

Engine, Standard Duty

1шт.

5

367350A1

AIR FILTER

Engine, Severe Duty

1шт.

6

J329289

FUEL FILTER

Spin-On, H20 Separator

1шт.

7

293615A1

FILTER

2шт.

8

316078A2

BREATHER

Fuel System

1шт.

9

336430A1

FUEL FILTER

Element

1шт.

10

1971726C1

BREATHER,1/4" - 18

Transmission

1шт.

11

402652A1

HYDRAULIC OIL FILTER

Spin-On

1шт.

12

277311A1

HYDRAULIC OIL FILTER

For Standard and High Flow

1шт.

13

259288A1

CAB FILTER

Fresn Air

1шт.

14

87267363

AIR FILTER,Cab Charcoal Recirculation

1шт.

15

194199A1

FUEL FILTER

In-line

1шт.

Выбрано товаров: 17
