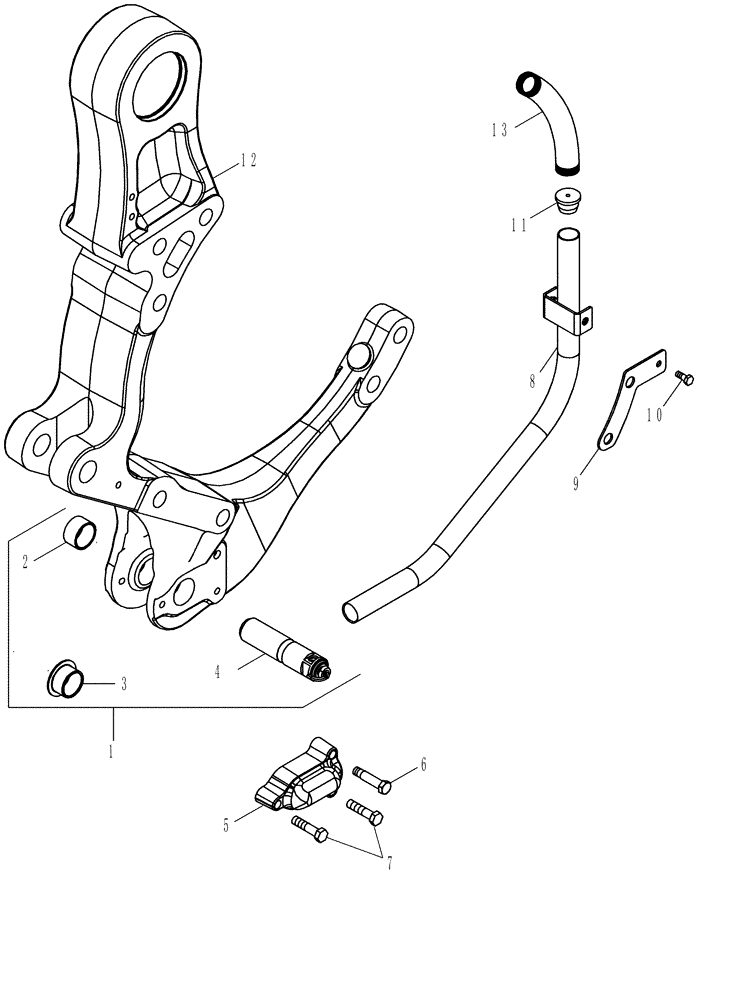

Запчасти Case IH MX285 (09-62) - HITCH - DRAFT CONTROL PINS (09) - CHASSIS/ATTACHMENTS

1

322022A1

KIT

Repair, Inc. 2 - 4

2шт.

2

1960223C1

BUSHING,37.15mm ID x 43.09mm OD x 24mm L

2шт.

3

303550A1

BUSHING,37.15mm ID x 57.15mm OD x 26mm L

2шт.

4

87351611

SENSOR

Pin, Draft Control

1шт.

5

87365144

COVER

2шт.

6

225643A1

BOLT,Shldr, Hex, M12 x 1.75 x 56mm

2шт.

7

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

8

236897A2

TUBE

2шт.

9

229904A2

SUPPORT

2шт.

10

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

11

1960765C2

GROMMET

2шт.

12

302887A5

BRACKET

2шт.

13

326827A1

SLEEVE

2шт.
