Запчасти Case IH MX285 (02-30) - CYLINDER HEAD - VALVE MECHANISM, MX255 AND MX285 (02) - ENGINE

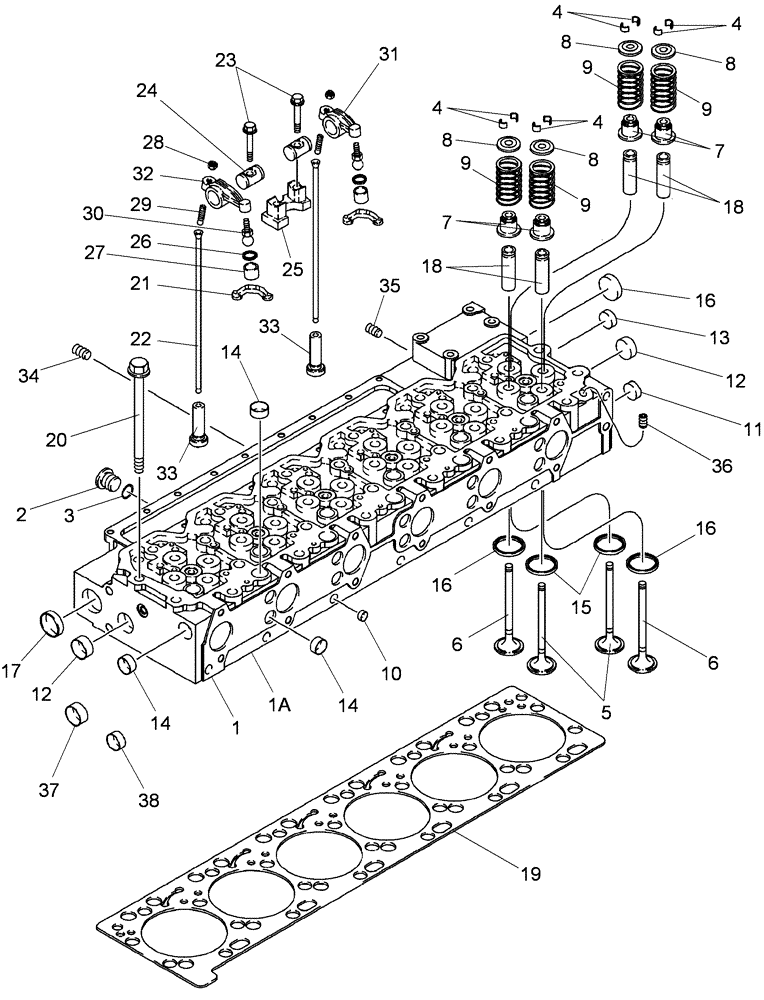

Схема запчастей Case IH MX285 - (02-30) - CYLINDER HEAD - VALVE MECHANISM, MX255 AND MX285 (02) - ENGINE
29
7
26
35
1a
2
6
9
16
5
3
8
12
24
8
36
9
38
17
9
30
18
25
15
13
12
28
37
31
8
27
4
20
18
6
16
14
10
4
14
7
11
32
22
21
34
16
8
14
9
33
23
4
33
19
4
1

Артикул

Название

Примечание

Количество

1

84181912

HEAD

Cylinder, With Valves, Inc. 1 - 18, 37, 38

1шт.

1

84181912R

REMAN-CYLINDER HEAD

Cylinder, With Valves, Inc. 1 - 18, 37, 38

1шт.

1

84181912C

CORE-CYLINDER HEAD

Return Part Number

1шт.

1

J945022

CYLINDER HEAD

Without Valves, Inc. 10 - 18

1шт.

1

JR948583

REMAN-CYLINDER HEAD

Cylinder Head

1шт.

1

JC948583

CORE-CYLINDER HEAD

Return Part Number

1шт.

1a

84181967

CYLINDER HEAD

Inc. 10, 11, 14 - 16, 37, 38

1шт.

Component of 84181912 Cylinder Head

1шт.

2

J678923

PLUG,M10 x 1

Inc. 3

1шт.

3

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

4

CASJ900250

RETAINER

48шт.

5

J942588

STD INLET VALVE

STD ENGINE INLET VALVE

12шт.

6

J942589

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

12шт.

7

87352235

SEAL

Valve

24шт.

8

J944452

RETAINER

24шт.

9

87666321

VALVE SPRING

24шт.

10

A77552

PLUG

11.5 mm

6шт.

10

87666392

PLUG

11.5 mm

6шт.

Component of 84181967 Cylinder Head

1шт.

11

A77590

PLUG

28,7 mm

2шт.

12

J900955

PLUG

10 mm OD

1шт.

13

J907555

PLUG

1/4-18 PT

1шт.

14

J920706

PLUG

22 mm OD

17шт.

15

J940152

INSERT

Intake

12шт.

16

J940153

INSERT

Exhaust

12шт.

17

41-1024

PLUG,Cup, 1 1/2"

1-1/2

2шт.

18

87666373

VALVE GUIDE

24шт.

19

J943366

CYLINDER HEAD GASKET,2.11mm Thk

1шт.

20

J917728

BOLT

160 mm

26шт.

21

J943445

CROSSBAR

12шт.

22

J944174

PUSH ROD

12шт.

23

J943933

SCREW,Hex Flg, M10 x 1.5 x 68mm, Cl 10.9

68 mm

12шт.

24

J941137

SHAFT

12шт.

25

J941140

SUPPORT

6шт.

J942748

ROCKER ARM

Intake, Inc. 26 - 31

6шт.

J942749

ROCKER ARM

Exhaust, Inc. 26 - 30, 32

6шт.

26

NSS

NOT SOLD SEPARAT

Retainer

1шт.

27

NSS

NOT SOLD SEPARAT

Socket

1шт.

28

A77902

NUT

3/8" - 24 NF

1шт.

29

J991067

ADJUSTMENT SCREW,3/8" - 24 x 27.58mm

1шт.

30

NSS

NOT SOLD SEPARAT

Ball

1шт.

31

NSS

NOT SOLD SEPARAT

Lever, Intake

1шт.

32

NSS

NOT SOLD SEPARAT

Lever, Exhaust

1шт.

33

J945866

TAPPET

12шт.

34

A77505

PLUG

3/4 PT

4шт.

35

A77429

PLUG

1/2 PT

7шт.

36

A77428

PLUG

1/4 PT

1шт.

37

87344118

PLUG

38.2 mm

2шт.

38

87344108

PLUG

8.1 mm

1шт.

Выбрано товаров: 49
