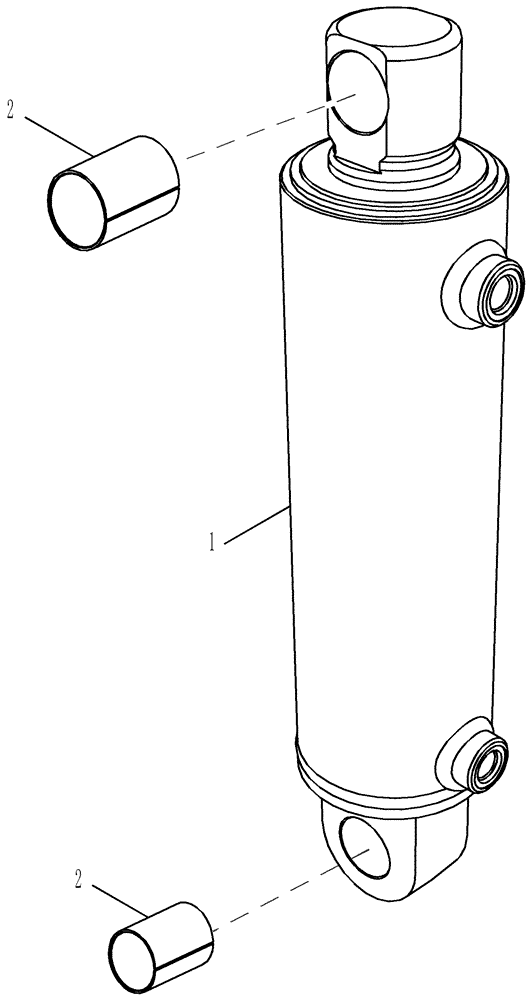

Запчасти Case IH MX285 (08-27) - CYLINDER ASSEMBLY - HITCH (95 MM) MARKED 87542725 (08) - HYDRAULICS

1

87542725

CYLINDER,Double Acting, 63.5mm Rod, 260.4mm Stroke

95 mm ID x 111 mm OD x 260 mm Stroke, Part Number Stamped on Cylinder, Inc. 2 - 5

1шт.

1

87542725R

REMAN-HYD CYLINDER

MX210, MX230, MX255, MX285, All CASE IH MAGNUM TRACTOR (NORTH AMERICA)

1шт.

1

87542725C

CORE-HYD CYLINDER

Return Number

1шт.

2

237443A1

BUSHING,34.96mm ID x 38.9mm OD x 50mm L

2шт.

3

87708872

SEAL KIT

(Not Shown)

1шт.

4

87708873

RING

(Not Shown)

1шт.

5

87708874

RING

(Not Shown)

1шт.
