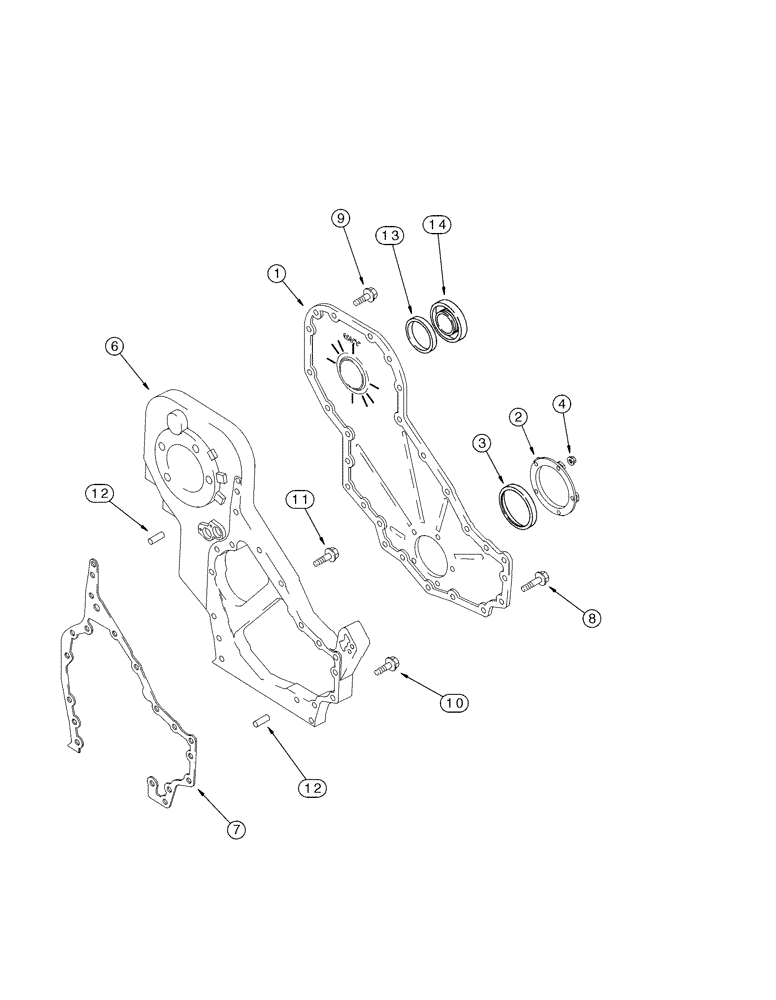

Запчасти Case IH MX285 (02-14) - FRONT GEAR COVER, MX255 AND MX285 (02) - ENGINE

1

J948043

COVER

1шт.

2

J941786

CARRIER

1шт.

3

NSS

NOT SOLD SEPARAT

Seal, Order A77790, A77808

1шт.

See Figure 02-40

1шт.

4

87493304

FLANGE NUT

M6

5шт.

5

J823494

SEALANT

3 oz, Not Illustrated

1шт.

6

J945852

TRANSMISSION HOUSING

1шт.

7

J944293

GASKET,1.01mm Thk

1шт.

8

J926863

FLANGE BOLT

M8 x 50

12шт.

9

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

14шт.

10

J926846

FLANGE BOLT

M8 x 20

3шт.

11

J943885

BOLT

M8 x 40

4шт.

12

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

13

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

14

J903463

PLUG,M63 x 5

1шт.
