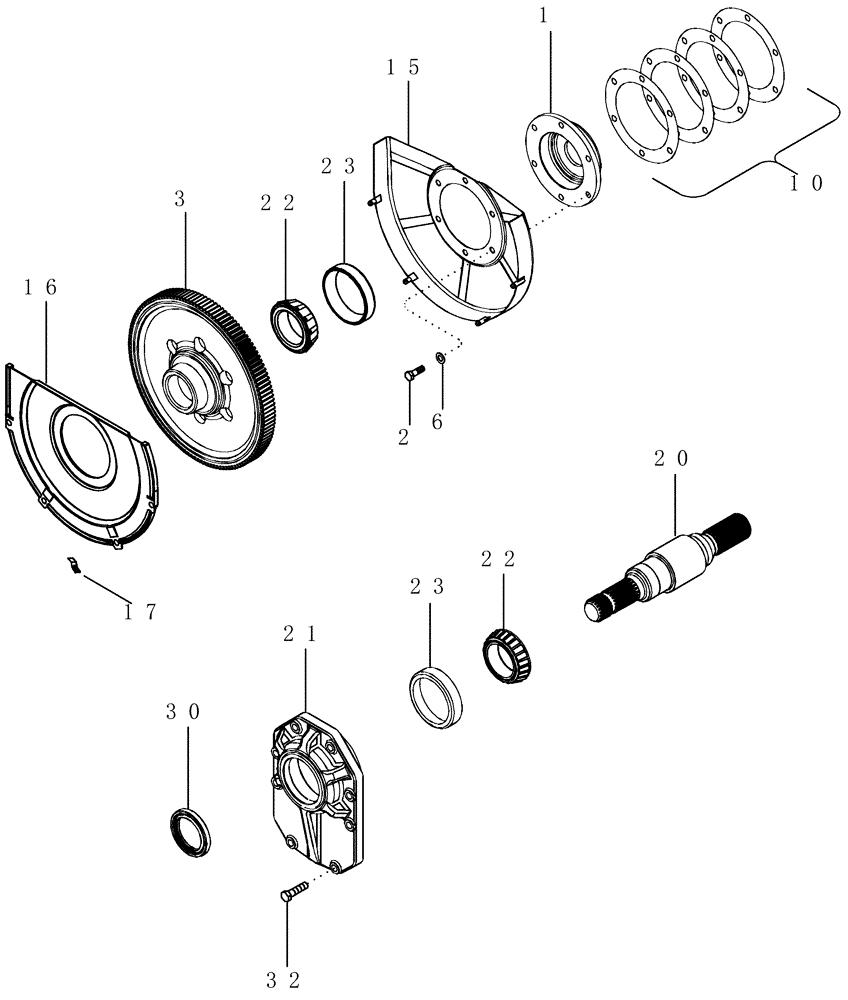

Запчасти Case IH MX285 (06-49) - POWER TAKE OFF ASSEMBLY - OUTPUT SHAFT, SINGLE SPEED - TRANSMISSION BSN AJB0356850 (06) - POWER TRAIN

1

444803A2

CAGE

1шт.

2

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

3

444799A2

RING, FLYWHEEL

125T

1шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

445991A1

SHIM KIT

Inc. 10

1шт.

10

444805A1

SHIM

0,152 mm

1шт.

10

444806A1

SHIM

0.178 mm

1шт.

10

444807A1

SHIM

0,203 mm

1шт.

10

444809A1

SHIM

0,635 mm

1шт.

15

446759A1

SHIELD

1шт.

16

225810A1

COVER

1шт.

17

139327C1

CLIP

4шт.

20

444798A2

SHAFT

45 mm (1-3/4 in)

1шт.

21

444801A1

COVER

1шт.

22

446268A1

BEARING ASSY,66.67mm ID x 30.05mm W

2шт.

23

446269A1

BEARING CUP,112.71mm OD x 23.81mm W

2шт.

30

225820A1

OIL SEAL,66.55mm ID x 92.18mm OD x 11.68mm Thk

1шт.

32

828-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

8шт.
