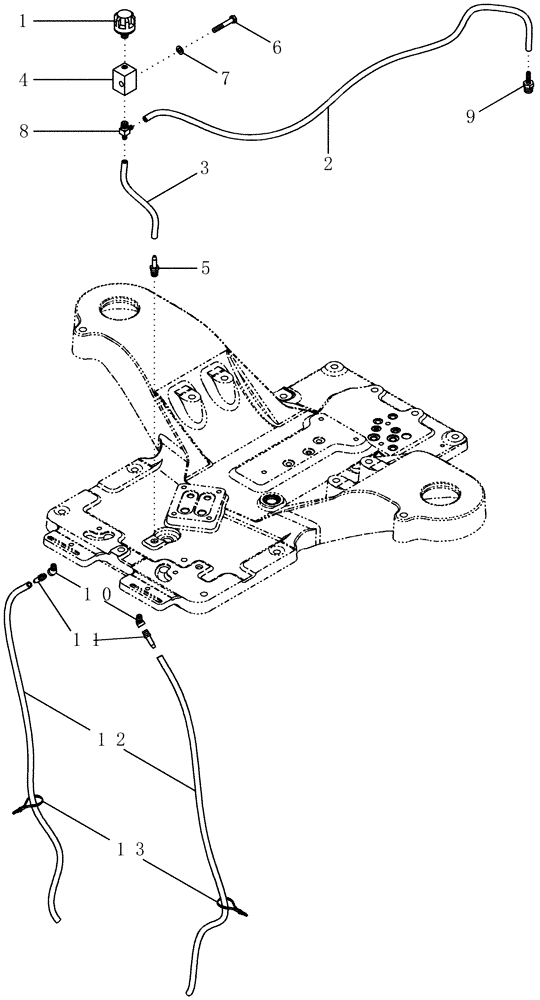

Запчасти Case IH MX285 (06-38) - BREATHER - TRANSMISSION (06) - POWER TRAIN

1

1971726C1

BREATHER,1/4" - 18

1шт.

2

359116A1

HOSE,6.35 mm ID x 1125.00 mm, SAE J30 R7

1шт.

3

359117A1

HOSE,6.35mm ID x 200mm L, SAE 30R7

1шт.

4

132093A2

BLOCK

1шт.

5

220-502

COUPLING, BREAK AWAY

1шт.

6

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

7

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

8

369378A1

TEE

1шт.

9

369941A1

COUPLING

1шт.

10

217-15

ELBOW,45 Degree, 1/8"-27 NPTF, Fem x 1/8"-27 NPTF Male

2шт.

11

217-120

ELBOW,1/4" Hose Barb x 1/8" Male NPTF

2шт.

12

413825A1

HOSE

2шт.

13

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

2шт.
