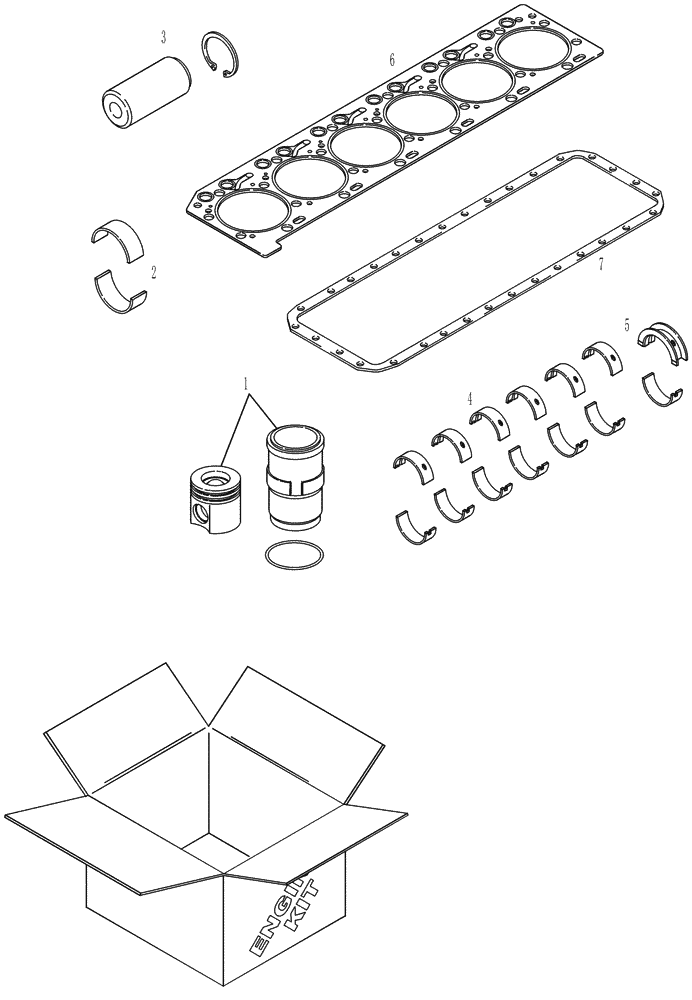

Запчасти Case IH MX275 (02-27) - KIT ENGINE OVERHAUL, MX275, 8.3 LITER ENGINE (02) - ENGINE

87348859

ENGINE OVERHAUL KIT

Inc. 1 - 8 (8.3 Liter Engine)

1шт.

1

87343262

KIT

PISTON

6шт.

See Figure 02-30A

1шт.

2

87443389

BEARING LINER

KIT, Connecting Rod, (Std)

6шт.

See Figure 02-30A

1шт.

3

87342670

PISTON PIN

6шт.

See Figure 02-30A

1шт.

4

J945930

BEARING SET

Standard

6шт.

See Figure 02-28

1шт.

5

J945929

THRUST BEARING

Thrust, Standard

1шт.

See Figure 02-28

1шт.

6

87737237

CYLINDER HEAD GASKET,1.81mm Thk

1шт.

See Figure 02-21

1шт.

7

87308050

GASKET,0.95mm Thk

Oil Pan

1шт.

See Figure 02-18

1шт.
