(02-21) - CYLINDER HEAD - VALVE MECHANISM, MX275, MAGNUM 275, 9.0L ENGINE ASN Z7RZ05009

Запчасти Case IH MX275 (02-21) - CYLINDER HEAD - VALVE MECHANISM, MX275, MAGNUM 275, 9.0L ENGINE ASN Z7RZ05009 (02) - ENGINE

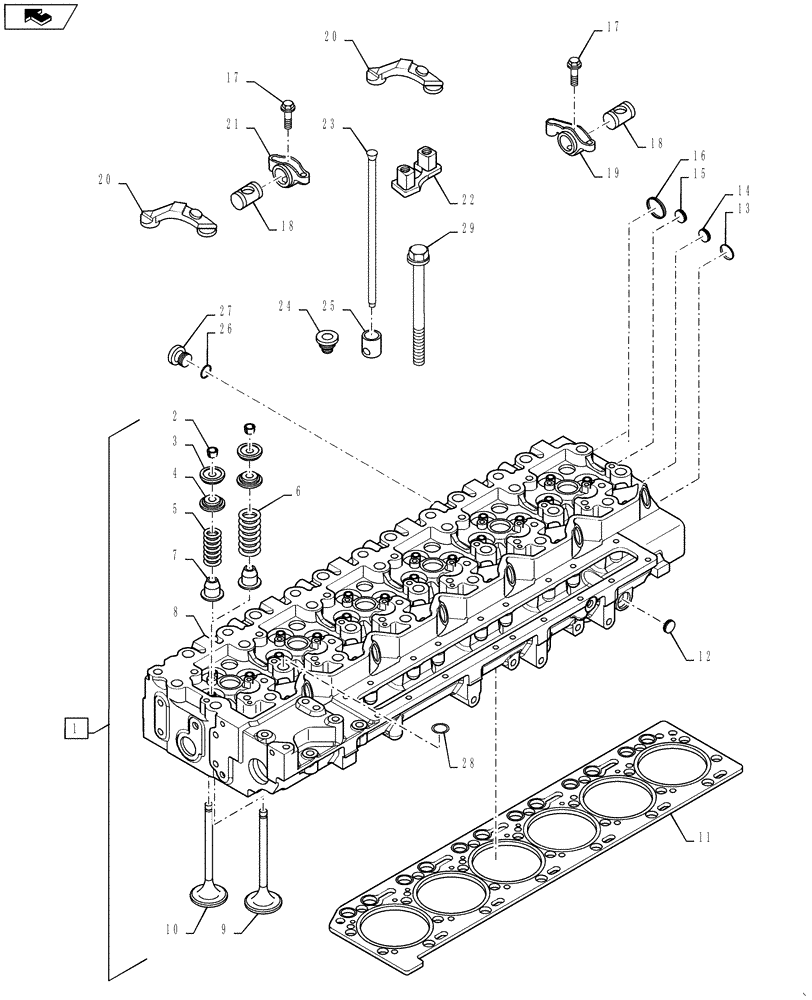

Схема запчастей Case IH MX275 - (02-21) - CYLINDER HEAD - VALVE MECHANISM, MX275, MAGNUM 275, 9.0L ENGINE ASN Z7RZ05009 (02) - ENGINE
20
12
25
2
21
1
18
6
8
17
4
24
15
5
17
3
29
11
16
27
23
10
home
13
18
7
9
22
20
14
28
19
26
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84332118

CYLINDER HEAD

Assembly With Valves, Inc. 5 - 10

1шт.

1

84332118R

REMAN-CYLINDER HEAD

Reman For New PN 84332118

1шт.

1

84332118C

CORE-CYLINDER HEAD

Return Part Number

1шт.

2

CASJ900250

RETAINER

48шт.

3

87351062

VALVE

12шт.

4

J944452

RETAINER

12шт.

5

87666324

VALVE SPRING

12шт.

6

87666321

VALVE SPRING

12шт.

7

87352235

SEAL

24шт.

8

NSS

NOT SOLD SEPARAT

HEAD ASSY, Stripped

1шт.

You Will Need To order Head Assy P/N 84332118.

1шт.

9

84201836

STD EXHAUST VALVE

12шт.

10

84201835

STD INLET VALVE

12шт.

11

87737237

CYLINDER HEAD GASKET,1.81mm Thk

1шт.

12

87666392

PLUG

Expansion

6шт.

13

A77590

PLUG

Expansion

2шт.

14

J945093

PLUG

Expansion

1шт.

15

87344108

PLUG

Expansion

1шт.

16

87344118

PLUG

Expansion

2шт.

17

J943933

SCREW,Hex Flg, M10 x 1.5 x 68mm, Cl 10.9

12шт.

18

87435951

SHAFT

12шт.

19

84286199

ROCKER ARM

Exhaust

6шт.

20

J943445

CROSSBAR

Head Cross

12шт.

21

84282647

ROCKER ARM

Intake

6шт.

22

J941140

SUPPORT

6шт.

23

87435955

PUSH ROD

12шт.

24

87644763

GUIDE

12шт.

25

87435851

TAPPET

12шт.

26

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

27

J678923

PLUG,M10 x 1

Inc. 22

1шт.

28

J920706

PLUG

18шт.

29

87344126

BOLT

26шт.
