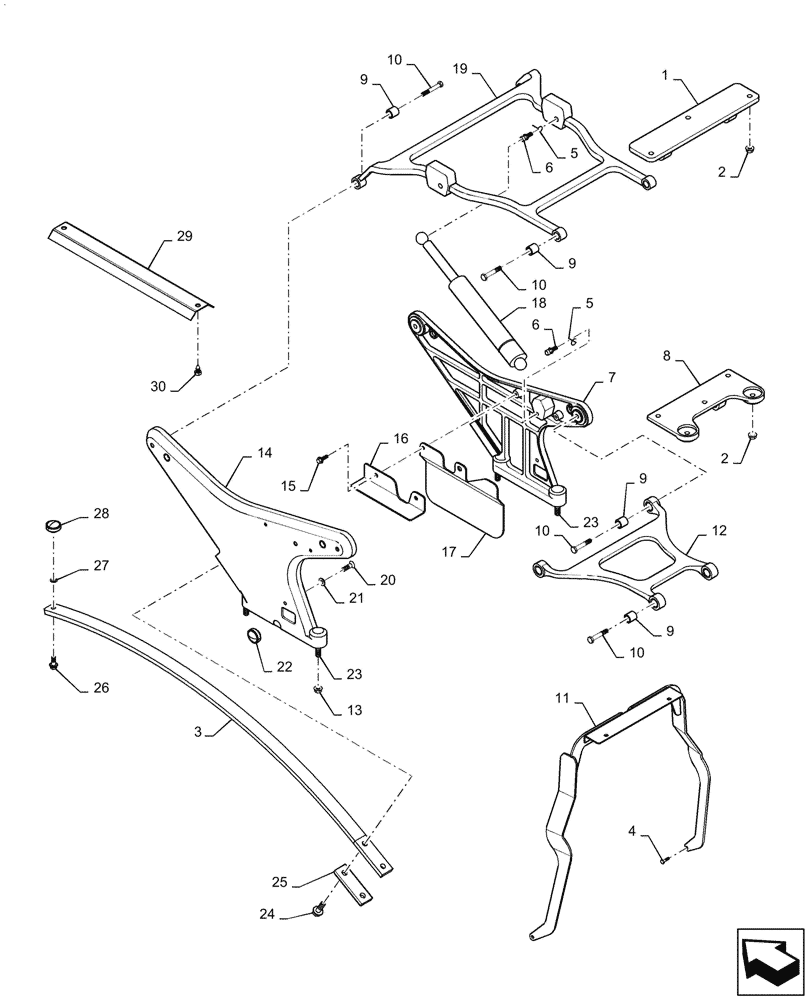

Запчасти Case IH MX275 (09-09) - HOOD - TILTING (09) - CHASSIS/ATTACHMENTS

1

87376828

LINK

Front Hood Mount

1шт.

2

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

8шт.

3

84203968

LEAF SPRING

Hood Assist

1шт.

No longer required. May be removed with no replacement.

1шт.

4

844-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

2шт.

5

87521455

CLIP

Retainer

4шт.

6

87398921

BALL STUD,M10 x 1.5

4шт.

7

87524533

FRAME

Right Hand Upper

1шт.

8

87399565

SUPPORT

Link, Rear Hood Mount

1шт.

9

87343713

BUSHING,12.95mm ID x 19mm OD x 28mm L

8шт.

9

1280291C1

BUSHING,19.13mm ID x 22.3mm OD x 19.05mm L

8шт.

10

844-12050

BOLT,Hex, M12 x 50mm, Cl 8.8

8шт.

11

87385049

SUPPORT

Rear Hood

1шт.

12

87313669

LINK

Hood Support

1шт.

13

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

14

87524532

FRAME

Left Hand Upper

1шт.

15

555-1

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

16

87327363

SHIELD

Heat

1шт.

17

87517404

SHIELD

Flex Pipe Heat

1шт.

18

87386500

GAS STRUT

Hood

2шт.

19

87351237

LINK

Front Hood Support

1шт.

20

87564727

BOLT

2шт.

21

81545

LOCK WASHER,6.78mm ID x 11.53mm OD x 0.64mm Thk

2шт.

22

87567203

BUMPER

2шт.

23

87443429

STUD

2шт.

24

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

No longer required. May be removed with no replacement.

1шт.

25

87323621

PLATE

Brace, Hood Assist Leaf Spring

1шт.

No longer required. May be removed with no replacement.

1шт.

26

87564727

BOLT

1шт.

No longer required. May be removed with no replacement.

1шт.

27

81545

LOCK WASHER,6.78mm ID x 11.53mm OD x 0.64mm Thk

1шт.

No longer required. May be removed with no replacement.

1шт.

28

87567203

BUMPER

Hood Assist Leaf Spring Slider

1шт.

No longer required. May be removed with no replacement.

1шт.

29

87327364

GUIDE

1шт.

No longer required. May be removed with no replacement.

1шт.

30

779-14613

SELF-TAP SCREW,Hex Hd, M6.3 x 13

Guide to Hood Upper Panel

2шт.

No longer required. May be removed with no replacement.

1шт.
