Запчасти Case IH MX275 (02-15) - TURBOCHARGER ASSEMBLY - INTERNAL COMPONENTS (02) - ENGINE

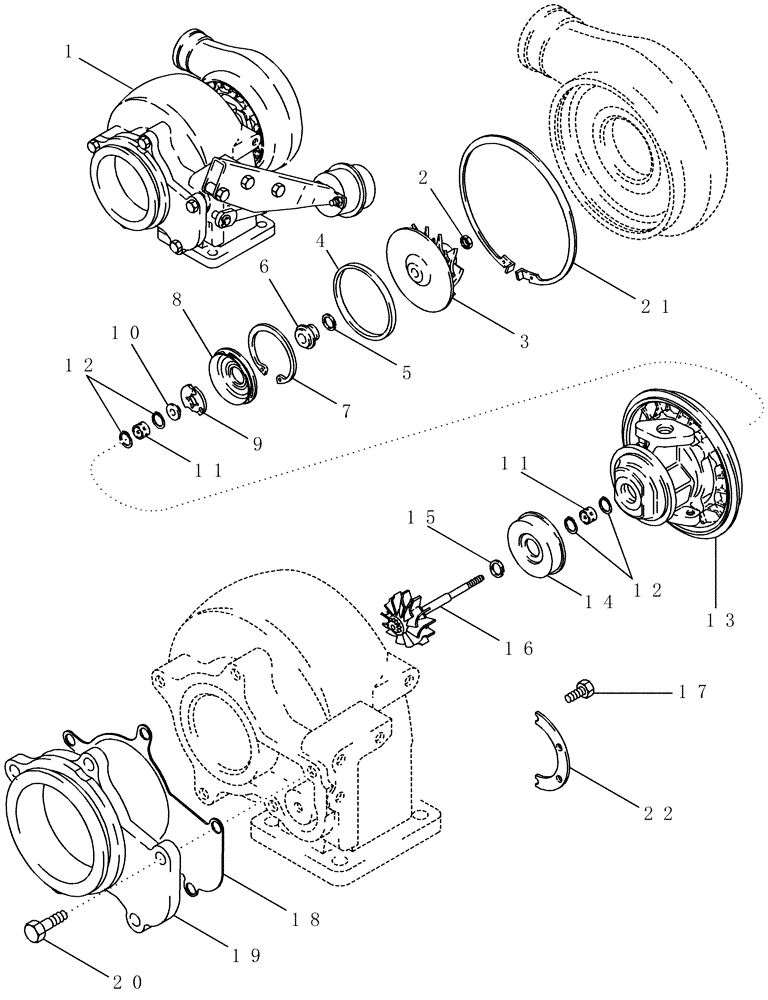

Схема запчастей Case IH MX275 - (02-15) - TURBOCHARGER ASSEMBLY - INTERNAL COMPONENTS (02) - ENGINE
12
12
1
21
9
8
13
7
2
11
4
5
14
10
19
20
15
16
11
18
6
17
22
3

Артикул

Название

Примечание

Количество

84186718

SERVICE KIT

Turbocharger, Inc. 1 - 22, Plus Components Shown on Fig. 02-16

1шт.

MX215 and Magnum 215

1шт.

84186718R

REMAN-TURBOCHARGER

Magnum 215, MX215

1шт.

84186718C

CORE-TURBOCHARGER

Return Part Number

1шт.

87355317

TURBOCHARGER

Inc. 1 - 22, Plus Components Shown on Fig. 02-16

1шт.

MX245 and Magnum 245

1шт.

87355317R

REMAN-TURBOCHARGER

Remanufactured, TURBOCHARGER

1шт.

87355317C

CORE-TURBOCHARGER

Return Part Number

1шт.

84269951R

REMAN-TURBOCHARGER

Cummins - Turbocharger

1шт.

84269951C

CORE-TURBOCHARGER

Return Part Number

1шт.

87355331

TURBOCHARGER

Inc. 1 - 22, Plus Components Shown on Fig. 02-16

1шт.

MX305, Magnum 275, 305, and 335

1шт.

87355331R

REMAN-TURBOCHARGER

Remanufactured TURBOCHARGER

1шт.

87355331C

CORE-TURBOCHARGER

Return Part Number

1шт.

84269952R

REMAN-TURBOCHARGER

Reman for New PN 87355331

1шт.

84269952C

CORE-TURBOCHARGER

Return Part Number

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING, Center, Inc. 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

Nut

1шт.

3

NSS

NOT SOLD SEPARAT

Impeller

1шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

Seal

1шт.

6

NSS

NOT SOLD SEPARAT

Slinger

1шт.

7

NSS

NOT SOLD SEPARAT

Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Baffle

1шт.

9

NSS

NOT SOLD SEPARAT

Bearing, Thrust

1шт.

10

NSS

NOT SOLD SEPARAT

Collar

1шт.

11

NSS

NOT SOLD SEPARAT

Bearing, Journal

2шт.

12

NSS

NOT SOLD SEPARAT

Ring

4шт.

13

NSS

NOT SOLD SEPARAT

Housing

1шт.

14

NSS

NOT SOLD SEPARAT

Shield

1шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Rotor and Shaft

1шт.

17

J759917

SET SCREW

6шт.

18

J537960

GASKET,0.46mm Thk

1шт.

19

J537979

ADAPTER

1шт.

20

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

5шт.

21

J533163

SNAP RING

1шт.

22

J534309

PLATE

2шт.

J575169

REPAIR KIT

Overhaul, Inc. 2, 4, 5, 7, 8, 9, 11, 12, 15, 17

1шт.

Выбрано товаров: 39
