Запчасти Case IH MX275 (08-04) - HYDRAULIC SYSTEM - PISTON PUMP AND FILTER, STANDARD FLOW CAPACITY & TWINFLOW (08) - HYDRAULICS

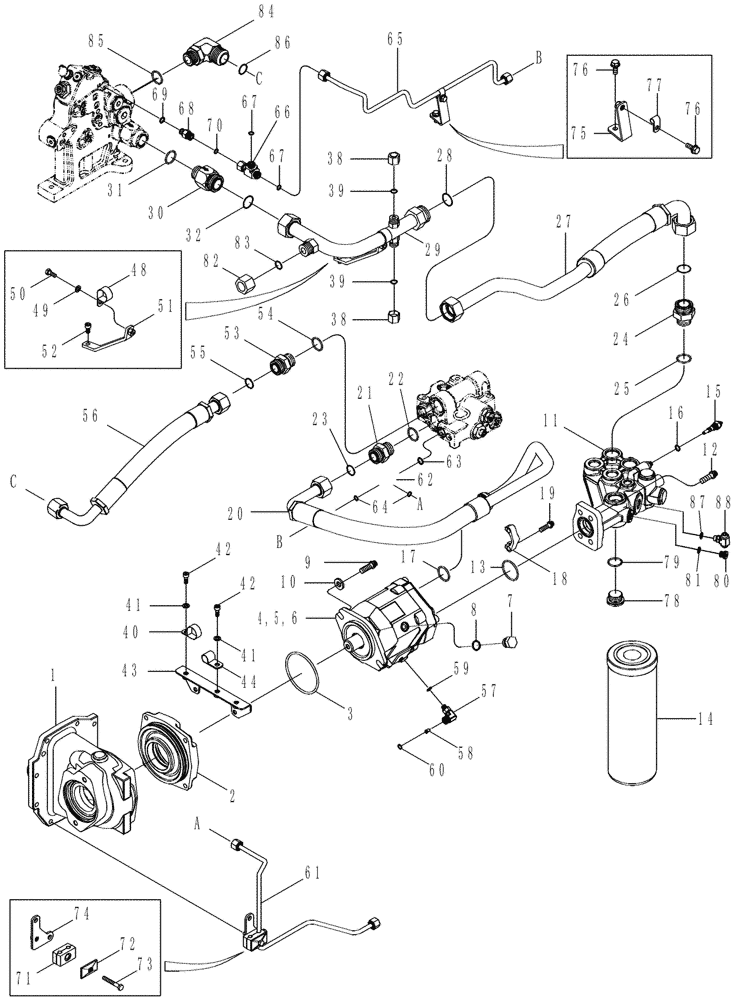

Схема запчастей Case IH MX275 - (08-04) - HYDRAULIC SYSTEM - PISTON PUMP AND FILTER, STANDARD FLOW CAPACITY & TWINFLOW (08) - HYDRAULICS
76
6
1
52
21
42
26
56
83
70
40
81
59
72
9
57
41
10
41
71
48
51
8
88
39
85
66
32
23
60
17
3
62
86
69
13
67
22
42
82
55
24
87
39
53
5
73
44
14
79
31
74
7
78
38
65
50
43
58
54
68
16
2
76
12
11
4
18
84
75
49
19
63
67
27
64
80
15
30
29
77
25
38
28
61
20

Артикул

Название

Примечание

Количество

1

389550A1

HOUSING

1шт.

See Figure 06-37

1шт.

2

405664A2

CAGE

1шт.

See Figure 06-37

1шт.

3

87016957

O-RING,0.21" Thk x 3.975" ID, -345, Cl 5, 75 Duro

1шт.

4

87538166

HYDRAULIC PUMP,63 CC

63cc

1шт.

Magnum 305 and 335

1шт.

4

87538166R

HYDRAULIC PUMP

Remanufactured

1шт.

Magnum 305 and 335

1шт.

4

87538166C

HYDRAULIC PUMP

Core

1шт.

Magnum 305 and 335

1шт.

5

87489367

SERVICE KIT

Compensator

1шт.

6

87553152

GASKET

Compensator Mounting

1шт.

7

86512512

PLUG,7/8" - 14 ORB

Incl. 8

1шт.

8

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

868-12035

12 PT SCREW,M12 x 35mm, Cl 12.9

2шт.

10

896-16012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

11

401600A1

HEAD ASSY.

Filter

1шт.

12

868-12035

12 PT SCREW,M12 x 35mm, Cl 12.9

4шт.

13

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

14

84487937

HYDRAULIC OIL FILTER,Spin On, 14.48" OAL

1шт.

15

1957801C1

PRESSURE SWITCH

Indicator Assy, Elect

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

18

86980728

COLLAR CLAMP

2шт.

19

868-10030

12 PT SCREW,M10 x 30mm, Cl 12.9

4шт.

20

87438800

HOSE

1шт.

21

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

Inc. 22, 23

1шт.

22

86639046

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

23

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

24

86579684

HYD CONNECTOR,1-11/16"-12 ORFS x M33 x 2.0 ORB

Inc. 25, 26

1шт.

25

86639046

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

26

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

27

450508A1

HOSE

Auxiliary Manifold Return, Pictured, Serial Range: -AJB0364115

1шт.

27

87385538

HOSE

Auxiliary Manifold Return, Not shown, Start Serial: AJB0364115

1шт.

28

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

29

450507A1

TUBE

1шт.

30

254851A1

CHECK VALVE

1-11/16 fc sl x 33 Or, Inc. 31, 32

1шт.

31

86639046

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

32

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

38

9840575

CAP,13/16" - 16 ORFS

2шт.

39

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

40

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

41

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

2шт.

42

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

2шт.

43

451054A1

BRACKET

1шт.

44

87010657

CLAMP,34.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

48

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

49

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

50

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

51

450515A1

BRACKET

1шт.

52

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

1шт.

53

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

Inc. 54, 55

1шт.

54

86639046

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

55

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

56

87413846

HYDRAULIC HOSE,25.4mm ID x 463mm L, SAE 100R12

Brake Supply, Serial Range: -Z7RZ01521

1шт.

56

87701093

HOSE

Brake Supply, Start Serial: Z7RZ01521

1шт.

57

451226A1

90 ELBOW

Inc. 58, 59, 60

1шт.

58

133519C1

SCREEN

1шт.

59

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

60

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

61

451209A1

HYD TUBE

1шт.

62

700-441

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Inc. 63, 64

1шт.

63

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

64

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

65

433592A1

TUBE

, Serial Range: -Z7RZ01521

1шт.

65

87620393

TUBE,0.375" OD

, Start Serial: Z7RZ01521

1шт.

66

9843615

TEE,11/16"-16 ORFS x 11/16"-16 Fem Sw Run

Inc. 67

1шт.

67

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

68

87308571

CHECK VALVE,11/16" - 16 ORFS x M14 x 1.5 ORB

Inc. 69, 70

1шт.

69

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

70

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

71

1546024C1

CLAMP

1шт.

72

384870A1

PLATE

1шт.

73

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

1шт.

74

451211A1

PLATE

1шт.

75

86988626

BRACKET

1шт.

76

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

77

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

78

221527A1

PLUG,Hex Soc, M33 x 2, ORB

Inc. 79

1шт.

79

86639046

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

80

86598044

PLUG,Hex, M14 x 1.5 ORB

Inc. 81

1шт.

81

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

82

701-907

CAP,1-3/16" - 12

Inc. 83

1шт.

83

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

84

700-404

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 85, 86, With Power Beyond

1шт.

See Figure 04-01A

1шт.

84

413993A1

90 ELBOW

Inc. 85, 86, Without Power Beyond (Shown)

1шт.

85

86639046

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

86

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1-2шт.

87

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

88

86579711

TEE,M22 x 1.5

-10 ORFS X M22 X 1.5 ADJ BRANCH ORB; Connects to hose 84164430

1шт.

Выбрано товаров: 92
