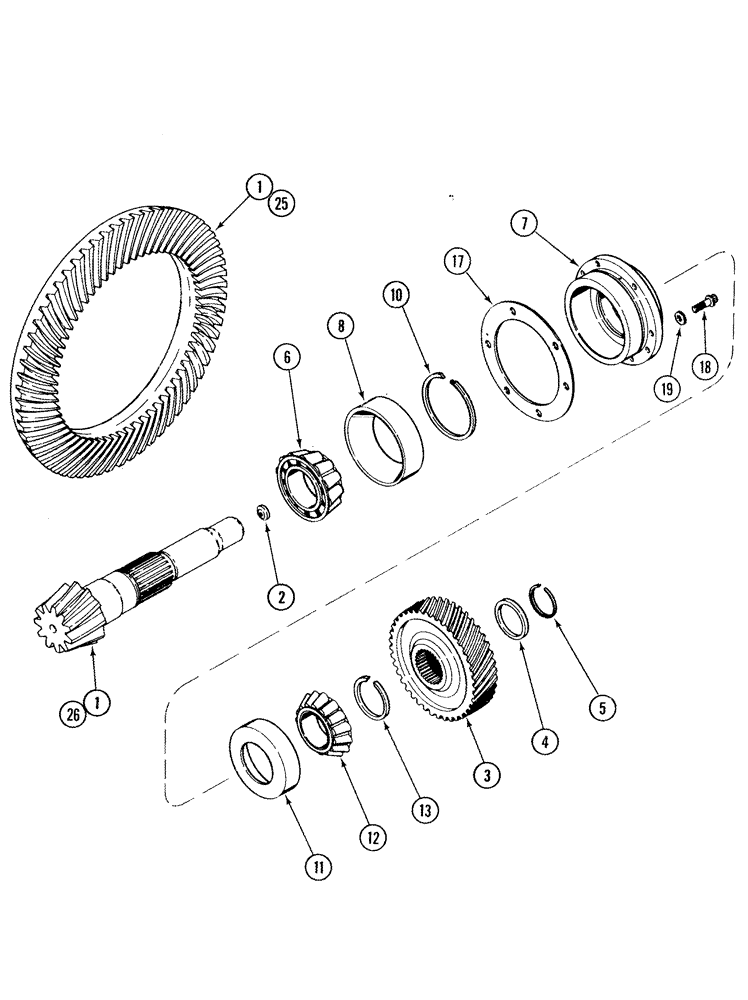

Запчасти Case IH MX275 (06-17) - TRANSMISSION - PINION SHAFT AND GEARS, MX215, 245, 275, MAGNUM 215, 245, 275 (06) - POWER TRAIN

1

94616C2

BEVEL GEAR

Inc. 2, 25, 26

1шт.

2

92825C1

CAP WASHER

1шт.

3

87618938

DRIVEN GEAR

46T

1шт.

4

1286039C1

SPACER

1шт.

5

143906C1

SNAP RING

1шт.

6

921684C1

BEARING ASSY,2.9528" ID x 5.7087" OD x 2.0079"

1шт.

7

1068264C1

BEARING HOUSING

Inc. 8

1шт.

8

921683C1

BEARING CUP,5.7087" OD x 1.6535"

1шт.

10

120965C1

SNAP RING

1шт.

11

108326H

BEARING CUP,3.81" ID x 4.71" OD x 0.92"

1шт.

12

94666C1

TAPERED BEARING,73.03mm ID x 30.16mm W

1шт.

13

131432A1

RING,Rtng, Ext, 68.91mm ID x 3.62mm

3.62 mm

1шт.

13

94661C1

RING,Rtng, Ext, 68.91mm ID x 3.70mm

3.70 mm

1шт.

13

94662C1

RING,Rtng, Ext, 68.91mm ID x 3.78mm

3.78 mm

1шт.

13

94663C1

RING,Rtng, Ext, 68.91mm ID x 3.86mm

3.86 mm

1шт.

13

110042C1

RING,Rtng, Ext, 68.91mm ID x 3.94mm

3.93 mm

1шт.

13

94664C1

RING,Rtng, Ext, 68.91mm ID x 4.02mm

4.02 mm

1шт.

13

131433A1

RING,Rtng, Ext, 68.91mm ID x 4.10mm

4.10 mm

1шт.

13

131434A1

RING,Rtng, Ext, 68.91mm ID x 4.18mm

4.18 mm

1шт.

17

120977C1

SHIM,171mm ID x 228mm OD x 0.08mm Thk

2шт.

17

120978C1

SHIM,171mm ID x 228mm OD x 0.1mm Thk

2шт.

17

120979C1

SHIM,171mm ID x 228mm OD x 0.13mm Thk

2шт.

17

120980C1

SHIM,171mm ID x 228mm OD x 0.3mm Thk

2шт.

18

566-12035

12 PT SCREW,Flg, M12 x 35mm, Cl 12.9

6шт.

19

1251958C1

WASHER,13mm ID x 25.40mm OD x 1.367mm, HTS

6шт.

25

NSS

NOT SOLD SEPARAT

GEAR

1шт.

26

NSS

NOT SOLD SEPARAT

PINION

1шт.
