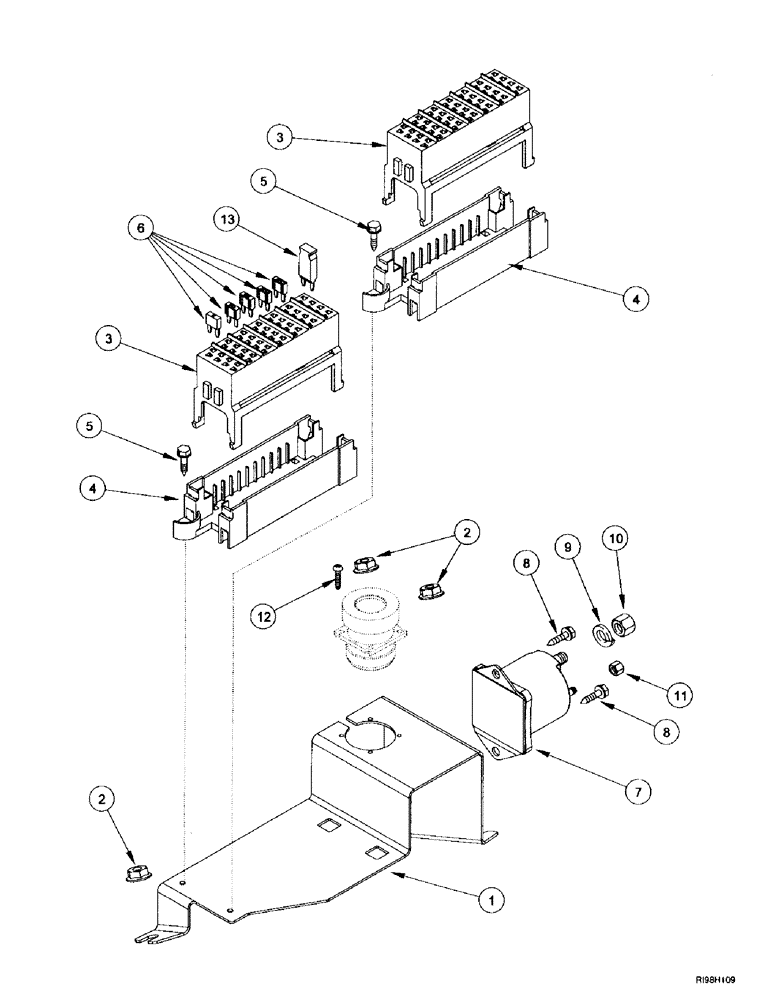

Запчасти Case IH MX270 (4-048) - ELECTRICAL COMPONENT MOUNTING (04) - ELECTRICAL SYSTEMS

1

280433A3

SUPPORT

BRACKET

1шт.

2

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

3шт.

3

144421A1

CONNECTING BLOCK

2шт.

4

194319A1

FUSE

2шт.

5

780-34319

SELF-TAP SCREW,Hex Wash Hd, M4.8 x 19

2шт.

6

121410A1

FUSE,5A, Mini, Tan

1шт.

6

121412A1

FUSE,10A, Mini, Red

1шт.

6

121413A1

FUSE,15A, Mini, Blue

1шт.

6

121414A1

FUSE,20A, Mini, Yellow

1шт.

6

121416A1

FUSE,30A, Mini, Green

1шт.

7

107655C1

SOLENOID SWITCH

SWITCH

1шт.

8

780-34319

SELF-TAP SCREW,Hex Wash Hd, M4.8 x 19

2шт.

9

492-11031

LOCK WASHER,5/16"

3шт.

10

425-105

NUT,5/16"-18, G5

3шт.

11

193-1000

NUT,Keps, w/LW,#10-32

No. 10 NF

1шт.

12

760-14113

SELF-TAP SCREW,Pan Hd, M3.5 x 13

2шт.

13

139719A1

CIRCUIT BREAKER,15 Amp, Mini

1шт.
