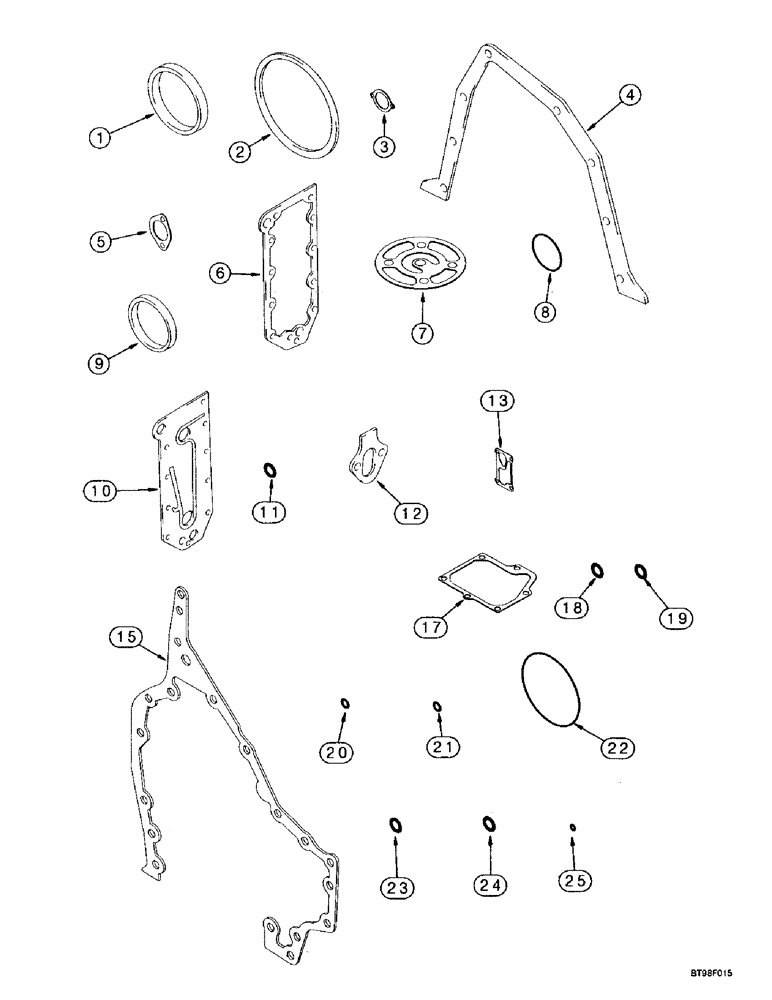

Запчасти Case IH MX270 (2-154) - GASKET KIT, MX240, MX270, 6TAA-8304 EMISSIONS CERTIFIED ENGINE, CYLINDER BLOCK (02) - ENGINE

A77905

SEAL PACKAGE

gasket, consists of: Ref. 1 - 25

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

see Figure 2-028

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

see Figures 2-116, 2-138

6шт.

3

J913032

GASKET

mounting, see Figure 2-116

1шт.

4

J914301

GASKET

mounting, see Figure 2-126

1шт.

5

J914302

GASKET

mounting, see Figure 2-066

1шт.

6

J918174

GASKET,0.71mm Thk

mounting, see Figure 2-062

1шт.

7

J921605

GASKET

housing, see Figure 2-062

1шт.

8

J926048

O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro

66 mm ID, see Figure 2-116

1шт.

9

J926722

SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108

RING, see Figure 3-036

1шт.

10

J929011

GASKET,1.19mm Thk

cover, see Figure 2-062

1шт.

11

J930911

O-RING,0.07" Thk x 0.8" ID

3/4" ID x 1/16", See Figure 2-062

1шт.

12

J931059

GASKET

mounting, see Figure 2-116, Replaces: J931348

1шт.

13

J943744

GASKET

mounting, see Figure 2-084

1шт.

15

J944293

GASKET,1.01mm Thk

housing, see Figure 2-028

1шт.

17

J944683

GASKET

mounting, see Figure 2-086

1шт.

18

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

See Figures 3-016, 3-018

2шт.

19

237-8010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

See Figures 3-016, 3-018

2шт.

20

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

See Figure 2-084

1шт.

21

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

See Figure 2-084

2шт.

22

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

See Figure 2-024

1шт.

23

A77724

O-RING,3.05mm Thk x 23.62mm ID

see Figure 2-062

1шт.

24

313246A1

O-RING,2.2mm Thk x 19.3mm ID

19 ID x 2.2 mm, see Figure 2-116

2шт.

25

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

See Figs 3-16, 3-18

9шт.
