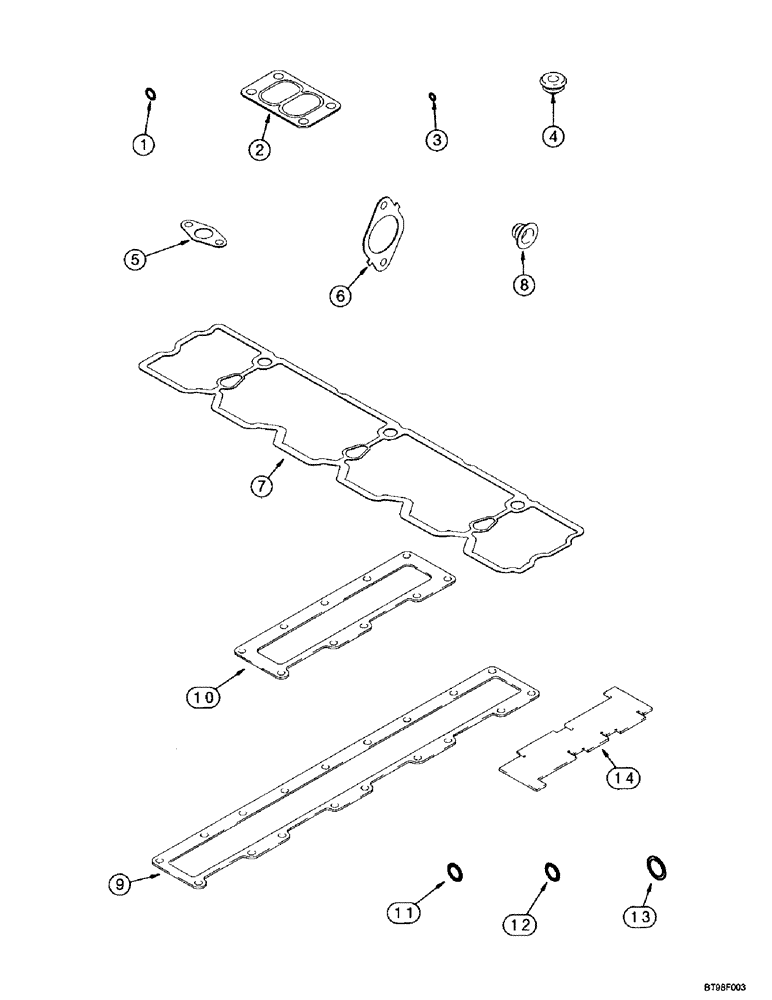

Запчасти Case IH MX270 (2-146) - GASKET KIT, MX240, MX270, 6TAA-8304 EMISSIONS CERTIFIED ENGINE, VALVE GRIND (02) - ENGINE

A77904

GASKET KIT

consists of: Ref. 1 - 14

1шт.

1

J867043

SEAL,1.78mm Thk x 10.82mm ID

O-RING injector, see Figure 3-06

6шт.

2

J901356

GASKET,0.5mm Thk

mounting, see Figure 2-040

1шт.

3

J906659

SEAL

nozzle, M7, see Figure 3-042

6шт.

4

J942659

ISOLATOR

see Figure 2-072

5шт.

5

J931350

GASKET

mounting, see Figure 2-040

1шт.

6

J943191

MANIFOLD GASKET

manifold, exhaust, see Figure 2-034

6шт.

7

J943303

GASKET

cover, see Figure 2-072

1шт.

8

J943888

SEAL

intake, valve, see Figure 2-078

4шт.

9

J944646

MANIFOLD GASKET

intake, see Figure 2-034

1шт.

10

J944647

GASKET

mounting, see Figure 2-034

1шт.

12

238-7210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 7, 75 Duro

See Figure 3-42

6шт.

13

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

See Figs 3-16, 3-18

1шт.

14

J823921

GAUGE

length

1шт.

11

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

See figure 2-51

2шт.
