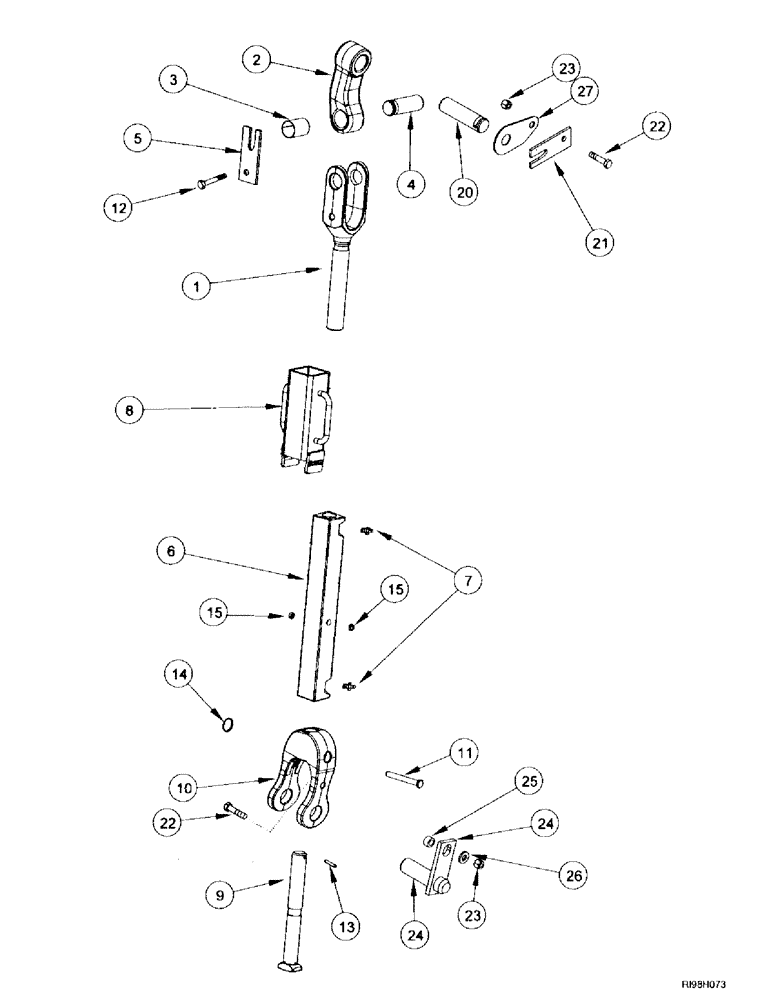

Запчасти Case IH MX270 (9-120) - LIFT LINKS, HITCH (09) - CHASSIS/ATTACHMENTS

1

251711A1

YOKE,1-1/4" - 7

UNIVERSAL JOINT YOKE right-hand threads

2шт.

2

225278A2

JOINT

SWIVEL

2шт.

3

237443A1

BUSHING,34.96mm ID x 38.9mm OD x 50mm L

4шт.

4

239292A2

PIN,34.87mm OD x 103mm L

2шт.

5

225049A3

LARGE PLATE

PLATE, LARGE locking

2шт.

6

238420A3

TURNBUCKLE,1-1/4" - 7

2шт.

7

219-23

LUBE NIPPLE,1/4" - 18 NPTF

FITTING

4шт.

8

308213A1

COLUMN JACKET

COLLAR

2шт.

9

239058A2

ROD, ADJUSTMENT

ROD, ADJUSTING left-hand threads

2шт.

10

232668A4

TRAILER HITCH

CLEVIS

2шт.

11

310629A1

HITCH PIN,11.95mm OD x 104mm L

2шт.

12

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

13

38-11620

PIN,1/4" x 1 1/4", Slotted

2шт.

14

307431A1

SNAP RING

retaining

2шт.

15

1965426C1

PLUG

4шт.

20

239193A2

PIN

2шт.

21

225049A3

LARGE PLATE

PLATE, LARGE locking

2шт.

22

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

23

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

24

321367A1

PIN

2шт.

25

321365A1

SPACER,13.5mm ID x 22.23mm OD x 12.5mm L

2шт.

26

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm

2шт.

27

255803A1

SHIM

1шт.
