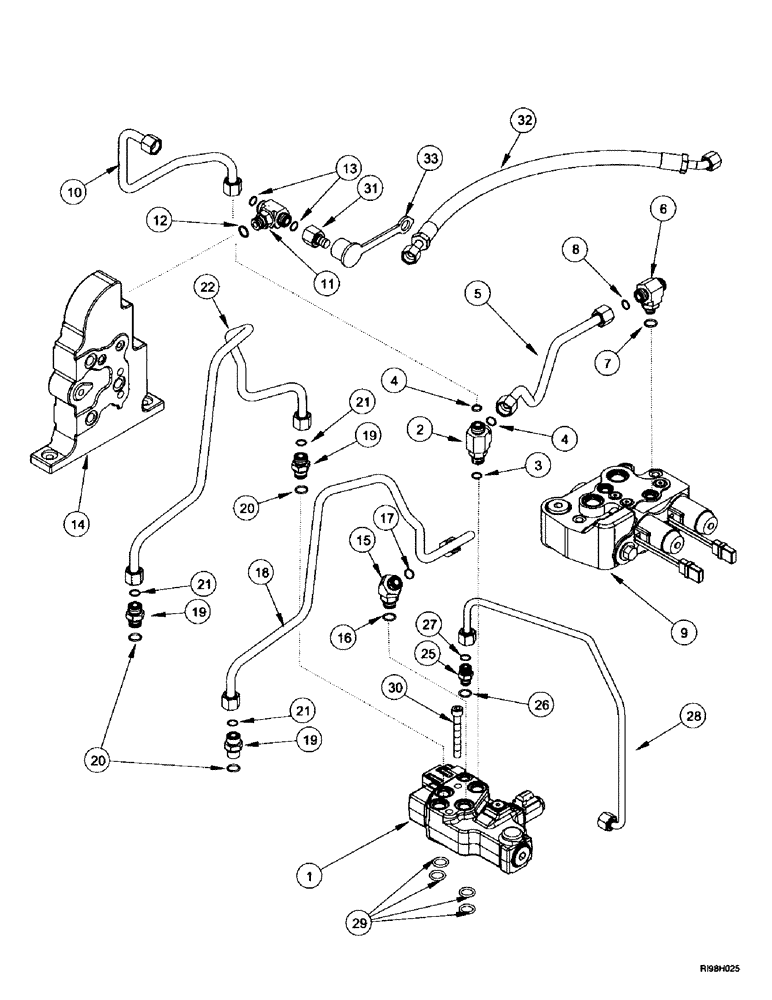

Запчасти Case IH MX270 (8-032) - HYDRAULIC SYSTEM, POWER TAKE-OFF (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE ASSY control, P.T.O., see Figure 8-066
1шт.
2
700-412
TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
Includes: Ref. 3, 4
1шт.
3
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
4
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
2шт.
5
276691A3
TUBE
TUBE, with hitch
1шт.
6
700-443
TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M14 x 1.5 Male ORB
13/16 fc sl x 14 Or, Includes: Ref. 7, 8
1шт.
7
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
1шт.
8
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
2шт.
9
REF
INSTRUCTION
VALVE ASSY, control, see Figure 8-056
1шт.
10
307382A1
TUBE
TUBE
1шт.
11
700-402
TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
13/16 fc sl x 18 Or, Includes: Ref. 12, 13
1шт.
Author: Tom A. Sprasky. 700-402 is being changed to a special screen tee. If dealer says the fitting has a screen, supply 330909A1--fitting has a 95 Micron screen.
1шт.
12
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
13
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
2шт.
14
REF
INSTRUCTION
MANIFOLD, see Figure 8-068
1шт.
15
700-348
ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
Incl. Ref. 16, 17
1шт.
16
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
17
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
18
303601A2
TUBE
TUBE
1шт.
19
700-102
HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
Incl. Ref. 20, 21
3шт.
20
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
21
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
22
307383A1
TUBE,0.5" OD, 295, 428 mm Length
TUBE
1шт.
25
700-101
HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB
Incl. 26, 27
1шт.
26
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
1шт.
27
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
28
278018A2
TUBE,0.375" OD, 327, 327 mm Length
TUBE
1шт.
29
238-5112
O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro
4шт.
30
864-10080
HEX SOC SCREW,M10 x 80mm, Cl 8.8
2шт.
31
322529A1
COUPLING
1шт.
32
298603A1
HOSE
without hitch
1шт.
33
143349A1
DUST CAP
dust
1шт.
Выбрано товаров: 32
