Запчасти Case IH MX270 (04-07) - HARNESS CAB, N.A. ONLY (04) - ELECTRICAL SYSTEMS

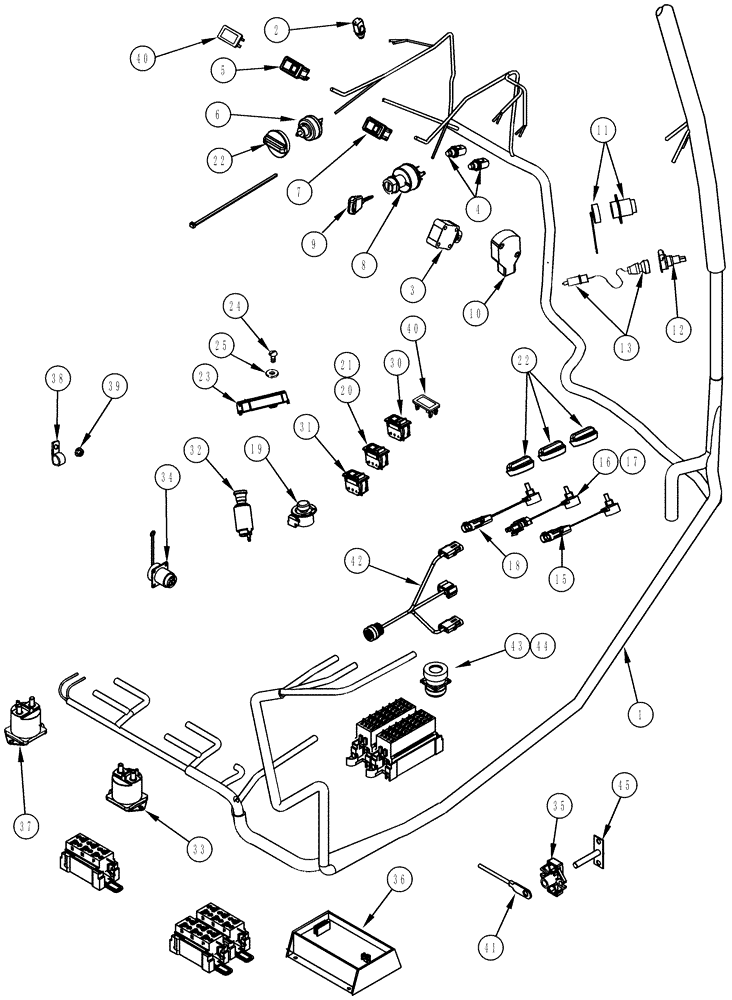

Схема запчастей Case IH MX270 - (04-07) - HARNESS CAB, N.A. ONLY (04) - ELECTRICAL SYSTEMS
1
24
41
17
43
6
34
40
44
22
13
36
30
39
12
45
9
15
16
11
5
22
19
10
42
32
20
31
33
25
4
21
40
3
38
8
2
35
18
7
23
37

Артикул

Название

Примечание

Количество

1

349959A3

HARNESS

N.A. Only

1шт.

2

279265A2

SWITCH

Clutch, Serial Range: -JJA0111667

1шт.

2

84229069

SWITCH

Clutch, Start Serial: JJA0111667

1шт.

3

301271A1

SENSOR

Clutch

1шт.

4

279265A2

SWITCH

Diff. Lock Brake

2шт.

5

229364A1

SWITCH

Ether Start

1шт.

6

177250A1

LIGHT SWITCH

Work

1шт.

7

229372A1

LIGHT SWITCH

Off - Hazard Warning Lights - Headlights Plus Hazard Warning Lights

1шт.

8

282775A1

IGNITION SWITCH

Inc. 9

1шт.

9

1964831C2

IGNITION KEY

Padded

1шт.

10

231426A1

POTENTIOMETER,2500 Ohm

Throttle, MX240 (1), MX270 (1)

1шт.

11

227739A2

POWER SOCKET

Auxiliary Power

2шт.

12

300655A1

POWER SOCKET

1шт.

13

324847A2

HARNESS

Monitor

1шт.

15

92115C2

SWITCH

Front Windshield Wiper

1шт.

16

92100C2

SWITCH

Blower, Without Auto Temp Control, N.A. Only

1шт.

17

326281A1

POTENTIOMETER,10,000 Ohm

Blower, with Auto Temp Control

1шт.

18

326282A1

POTENTIOMETER,10,000 Ohm

Temperature

1шт.

19

280627A1

SWITCH, MIRROR ADJUS

Power Mirrors

1шт.

20

255036A1

SWITCH

Air Conditioning, Without Auto Temp Control

1шт.

21

295011A1

SWITCH

Climate Control, With Auto Temp Control

1шт.

22

1331046C2

KNOB

4шт.

23

308910A1

CLUSTER, INSTR.

CLUSTER, INSTRUMENT With Auto Temp Control

1шт.

24

261-14512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

2шт.

25

495-31027

WASHER,1/4"

17/64 x 5/8 x 3/64

2шт.

30

229379A1

SWITCH

Strobe Lamp, N.A. Only

1шт.

31

246300A3

SWITCH

Rear Windscreen Wiper

1шт.

32

1964773C1

CIGAR LIGHTER

12V

1шт.

33

107655C1

SOLENOID SWITCH

With 3 Terminals, See Figure 4-19, Serial Range: -JJA113007

1шт.

34

227739A2

POWER SOCKET

2шт.

35

239428A1

JUNCTION

See Figure 4-19

1шт.

36

296674A3

FLASHER UNIT

See Figure 4-19

1шт.

37

418485A1

SOLENOID SWITCH

With 4 Terminals, See Figure 4-19, Start Serial: JJA113007

1шт.

38

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

3шт.

39

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

3шт.

40

86000535

PLUG,1.427" x .62", Plastic

1шт.

41

349961A1

ELECTRICAL WIRE

WIRE Cab Power

1шт.

42

362626A2

HARNESS

Without Auto Temp Control

1шт.

42

362625A1

HARNESS

With Auto Temp Control

1шт.

43

310057A1

ELEC CONNECTOR,Male, 9 Pin

1шт.

44

225292C1

DUST CAP

1шт.

45

1964561C1

BAR

1шт.

Выбрано товаров: 42
