Запчасти Case IH MX270 (03-07) - PUMP, FUEL TRANSFER, MX240, MX270, 6TAA-8304 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

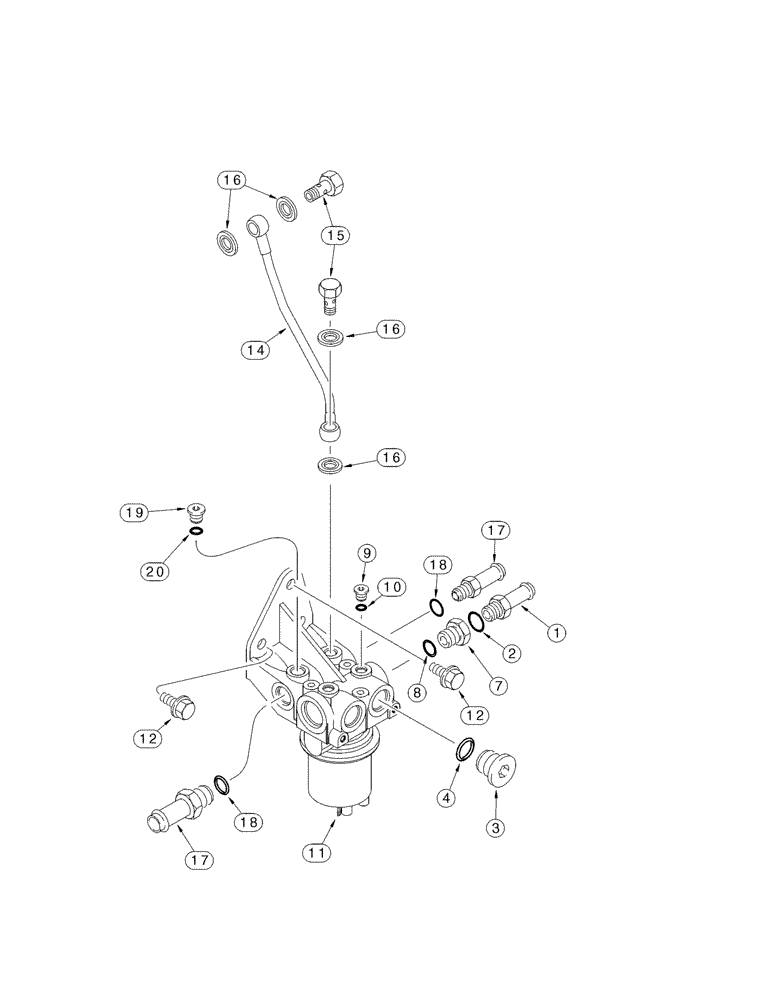

Схема запчастей Case IH MX270 - (03-07) - PUMP, FUEL TRANSFER, MX240, MX270, 6TAA-8304 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM
14
12
12
4
18
17
16
8
7
2
15
9
17
1
19
18
16
20
10
3
11
16

Артикул

Название

Примечание

Количество

1

J931014

FITTING

Includes 2

1шт.

2

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

1шт.

3

311184A1

PLUG

7/8-16, Inc. 4

2шт.

4

237-8010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

1шт.

7

J944823

ADAPTER

Includes 8

1шт.

8

237-8010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

1шт.

9

233426A1

PLUG,M10 x 1 ORB

10 mm, Inc. 10

2шт.

10

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

11

J949093

FEED PUMP

1шт.

12

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

3шт.

14

J943599

FUEL TUBE,8 mm OD

1шт.

15

J903035

BANJO BOLT

M12 x 24

2шт.

16

J935171

SEALING WASHER

12 x 19 x 1,5 mm

4шт.

17

J944825

COUPLING

Includes 18

2шт.

18

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

1шт.

19

J678921

PLUG

14 mm, Includes 20

1шт.

20

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

Выбрано товаров: 17
