Запчасти Case IH MX270 (02-34) - THERMOSTAT FILTER, WATER, MX240, MX270 6TAA-8304 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

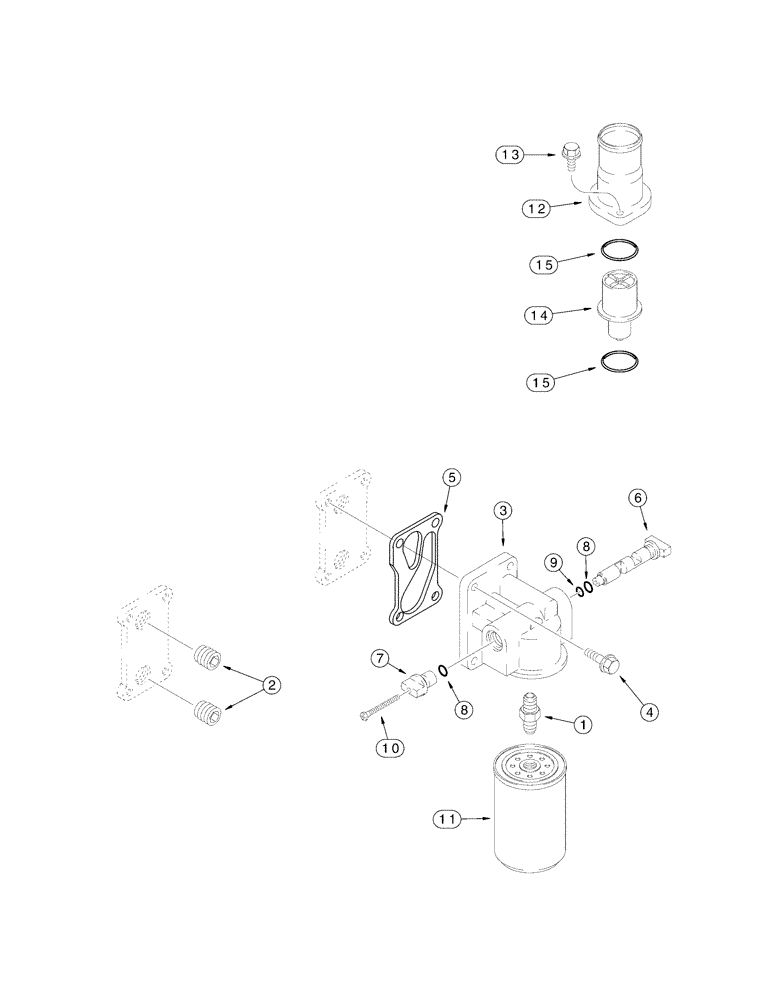

Схема запчастей Case IH MX270 - (02-34) - THERMOSTAT FILTER, WATER, MX240, MX270 6TAA-8304 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
6
13
11
3
2
10
5
12
15
4
9
8
1
8
14
15
7

Артикул

Название

Примечание

Количество

1

A77623

ADAPTER,3/4" - 10 x 11/16" - 16

1шт.

2

A77505

PLUG

3/4 PT

2шт.

3

J943738

FILTER HEAD

1шт.

4

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

4шт.

5

J937367

GASKET

1шт.

6

J943739

SHUT-OFF VALVE

1шт.

7

J943740

SHUT-OFF VALVE

1шт.

8

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

2шт.

9

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

10

J944454

SELF-TAP SCREW,#6 - 20 x 1 3/8"

1шт.

11

A77544

FILTER

1шт.

12

J944429

OUTLET

1шт.

13

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

14

J940632

THERMOSTAT

1шт.

15

238-5227

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

2шт.

Выбрано товаров: 15
