Запчасти Case IH MX270 (02-13) - WATER PUMP SYSTEM, MX240, MX270, 6TAA-8304 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

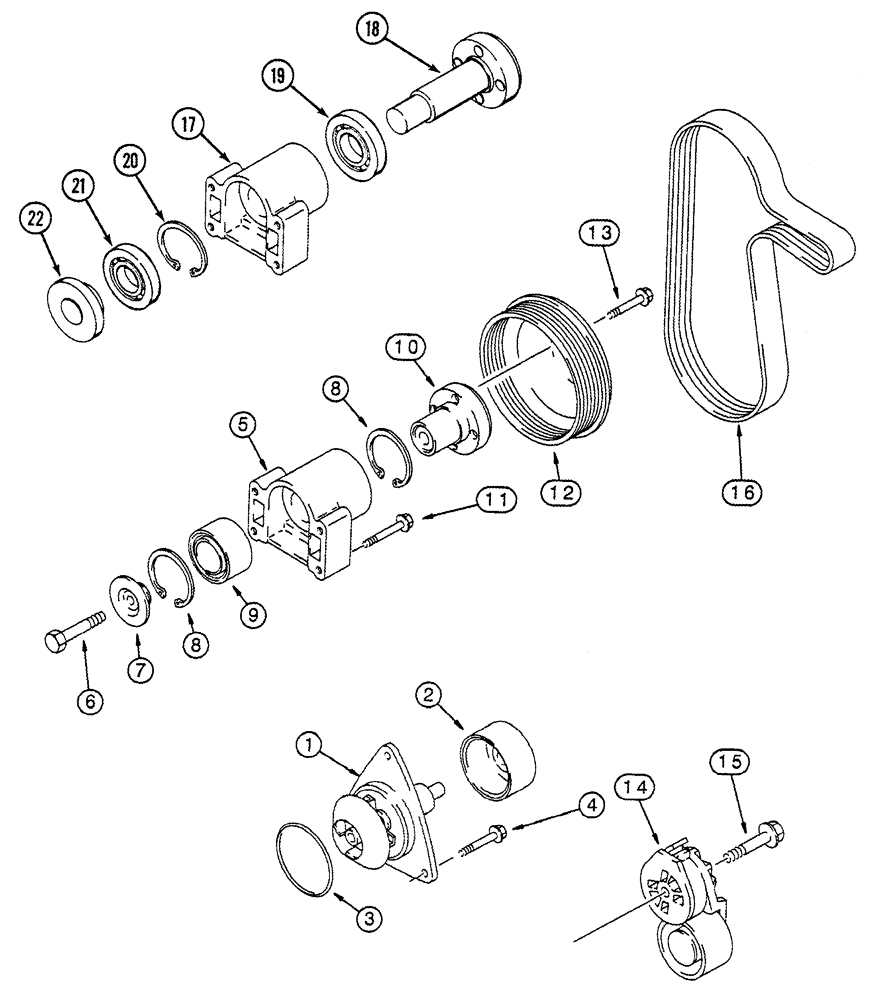

Схема запчастей Case IH MX270 - (02-13) - WATER PUMP SYSTEM, MX240, MX270, 6TAA-8304 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
11
10
8
4
15
3
5
21
13
19
9
7
22
20
18
8
12
16
14
2
6
1
17

Артикул

Название

Примечание

Количество

J804927

WATER PUMP

Consists of 1 - 3

1шт.

87308650R

REMAN-WATER PUMP

MX240, MX270 Both P.I.N. JJA0105000 & AFTER (1/99-) Reman for New P/N J804927

1шт.

87308650C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Pump

1шт.

2

NSS

NOT SOLD SEPARAT

Pulley

1шт.

3

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

1шт.

4

J934054

FLANGE BOLT

M8 x 28

3шт.

J942896

SUPPORT

MX240 (1), If Equipped, Order J945330, Consists Of 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

Support

1шт.

6

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

M10 x 70

1шт.

7

J923044

RETAINER

1шт.

8

100-21250

SNAP RING,2.50", Int, #250

2шт.

9

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

10

J911924

HUB

1шт.

11

844-10050

BOLT,Hvy Hex, M10 x 50mm, Cl 8.8

4шт.

12

J914462

PULLEY,163mm OD

1шт.

13

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

4шт.

14

J945849

BELT TENSIONER

1шт.

15

J282433

FLANGE BOLT,Hex, M10 x 1.5 x 85mm

1шт.

16

243373A1

BELT,27.92mm W, 1689.3 mm L, 8 Ribs

1шт.

J945330

SUPPORT

MX240(1), If Equipped, MX270(1), Consists Of 17 - 22

1шт.

17

NSS

NOT SOLD SEPARAT

Support

1шт.

18

J934104

HUB

1шт.

19

J933441

BALL BEARING

1шт.

20

100-21244

SNAP RING,2.44", Int, #244

1шт.

21

J933440

BALL BEARING

1шт.

22

J931016

RETAINER

1шт.

Выбрано товаров: 27
