Запчасти Case IH MX270 (06-42) - SOLID STEEL REAR WHEELS, N.A. ONLY (06) - POWER TRAIN

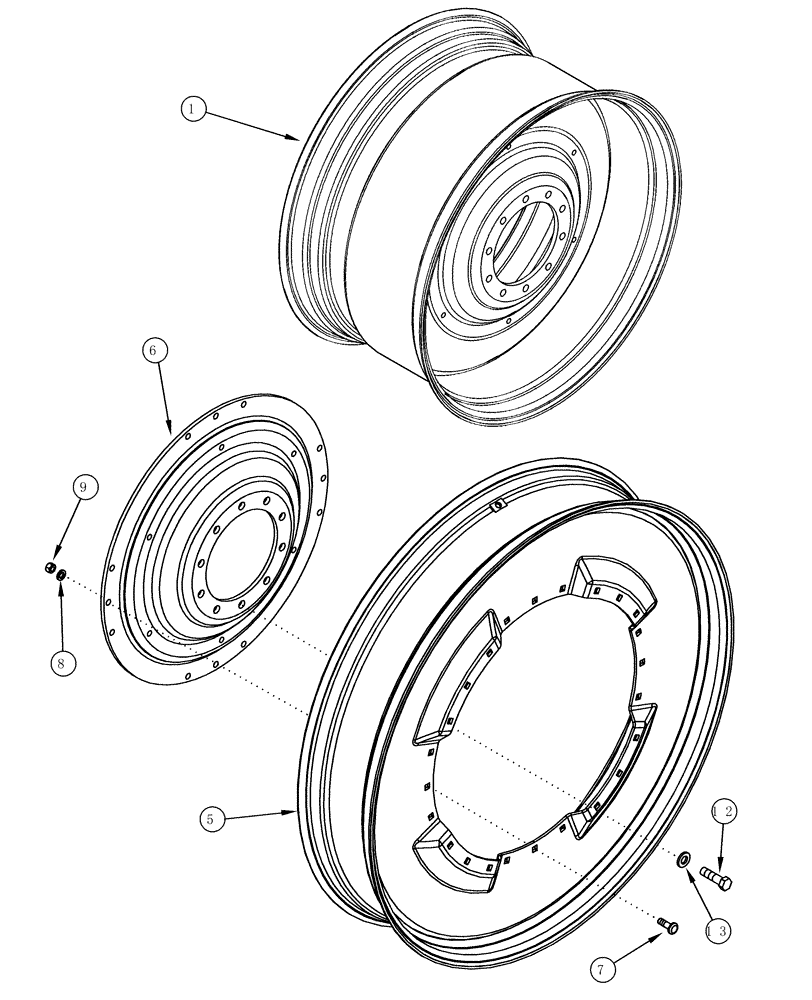

Схема запчастей Case IH MX270 - (06-42) - SOLID STEEL REAR WHEELS, N.A. ONLY (06) - POWER TRAIN
5
8
6
12
9
13
1
7

Артикул

Название

Примечание

Количество

N.A. Only

1шт.

1

222665A1

WHEEL

W18Ax38, For Tires 20.8R38, 520/85R38

2шт.

1

193300A2

RIM

MW23Ax38, For Tires 710/70R38

2шт.

1

221362A1

WHEEL

W16Ax42, For Tires 18.4R42, 480/80R42

2шт.

1

193857A1

WHEEL

W18Ax42, For Tires 20.8R42, 520/85R42

2шт.

1

276687A1

WHEEL

MW20Ax42, For Tires 620/70R42

2шт.

1

305792A1

RIM

MW23Ax42, For Tires 710/70R42

2шт.

1

196254A1

WHEEL

W13x46, For Tires 14.9R46, 380/90R46

2шт.

1

196488A1

WHEEL

W16Ax46, For Tires 18.4R46, 520/85R46, 480/80R46

2шт.

1

349008A1

WHEEL

DW15Lx50, For Tires 480/80R50

2шт.

283939A1

WHEEL ASSY.

W10x54, For Tires 12.4R54, 320/90R54, Consists Of 5 - 9

2шт.

5

310835A1

RIM

WHEEL

1шт.

6

310836A1

DISC

1шт.

7

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

12шт.

8

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

9

829-1416

NUT,M16, Cl 10

12шт.

12

827-22080

BOLT,Hex, M22 x 2.5 x 80mm, Cl 10.9

20шт.

13

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

20шт.

Выбрано товаров: 18
