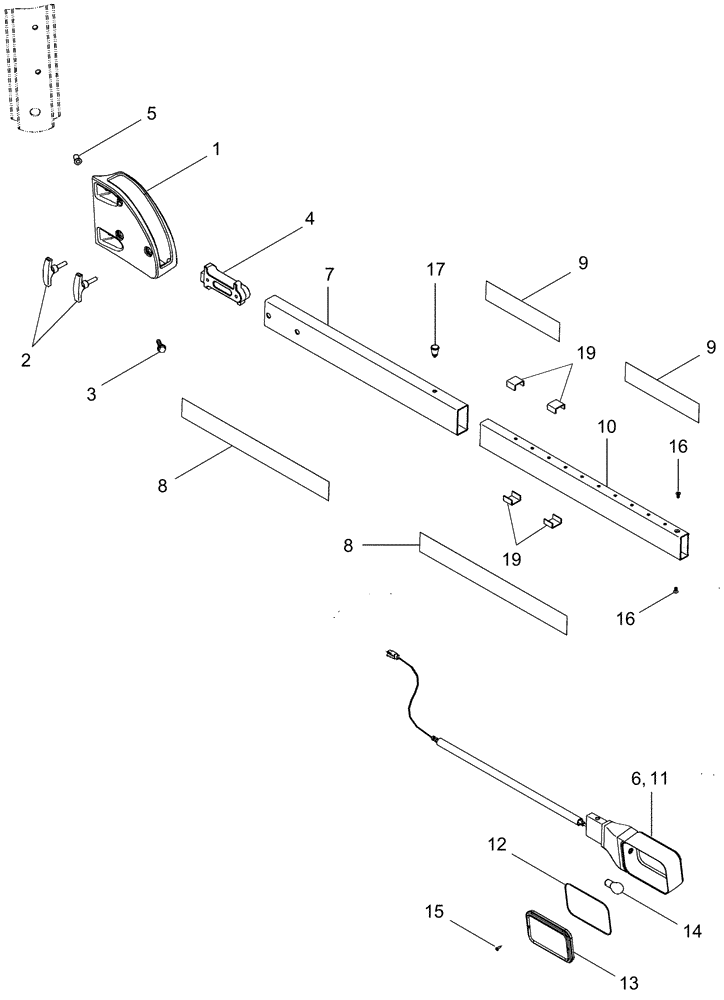

Запчасти Case IH MX255 (04-29) - LAMPS - WIDE TRANSPORT, ADJUSTABLE (04) - ELECTRICAL SYSTEMS

1

303030A1

SUPPORT

Right Hand, Shown

1шт.

1

303128A1

SUPPORT

Left Hand

1шт.

2

400042A1

HANDLE

4шт.

3

514-636

BOLT,Hex Serr Flg, M8 x 30mm

M8 x 30

4шт.

4

321647A2

RETAINER

2шт.

5

P35448

RIVET

4шт.

6

442017A1

LIGHT ASSY.

Right Hand, Shown, Inc. 7 - 17

1шт.

6

442018A1

LIGHT ASSY.

Left hand, Inc 7 - 17

1шт.

7

410109A1

TUBE

Inner

1шт.

8

297221A1

DECAL

Red

2шт.

9

297223A1

DECAL

Yellow

2шт.

10

410110A1

TUBE

Outer

1шт.

11

353734A1

WARNING LIGHT

Right Hand, Shown, Inc. 12 - 14

1шт.

11

353735A1

WARNING LIGHT

Left Hand, Inc. 12 - 14

1шт.

12

233561A1

O-RING,0.07" Thk x 4379" ID, -48, 70 Duro

2шт.

13

232212A1

LENS,135.8mm L x 90mm W, Amber

2шт.

14

A41264

BULB,#1156, 12V

1шт.

15

NSS

NOT SOLD SEPARAT

Screw

2шт.

16

569-3

HEX SOC SCREW,Flat Hd, M5 x 10mm, Cl 10.9

M5 x 10; 10.9

2шт.

17

400039A1

KNOB

1шт.

19

321663A1

SLIDING PAD

4шт.
