Запчасти Case IH MX255 (03-24) - FUEL LINES WITH SEPARATOR FILTER, MX255 AND MX285 (03) - FUEL SYSTEM

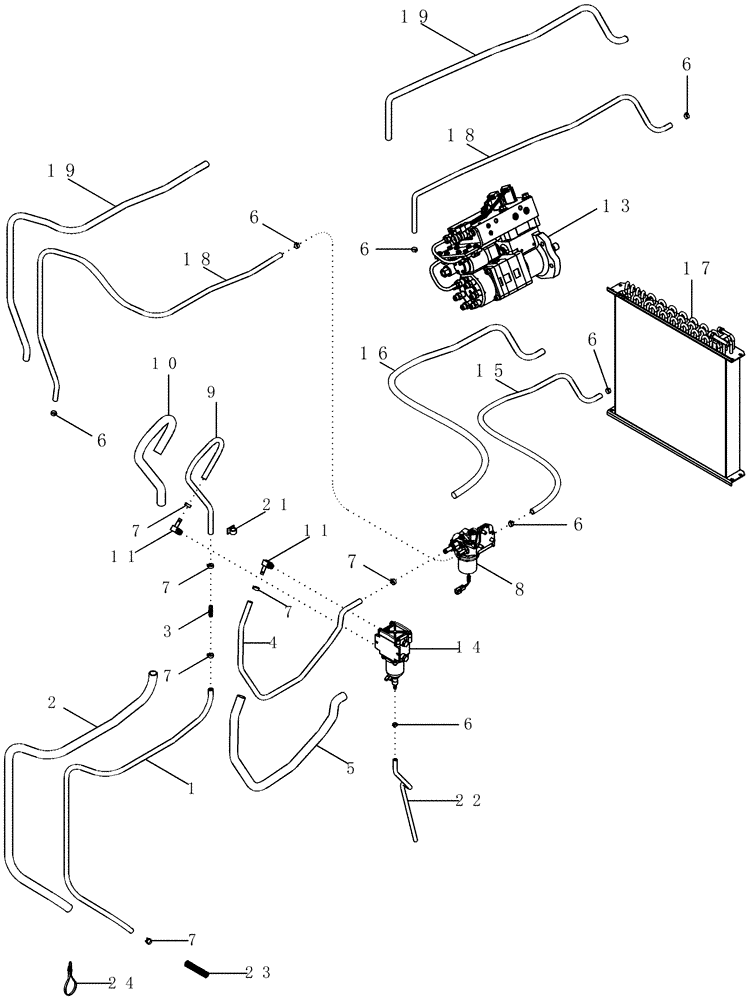

Схема запчастей Case IH MX255 - (03-24) - FUEL LINES WITH SEPARATOR FILTER, MX255 AND MX285 (03) - FUEL SYSTEM
2
7
16
19
24
23
1
7
6
18
7
5
6
14
22
9
15
6
6
10
7
7
11
19
8
18
4
13
7
11
17
3
6
21
6
6

Артикул

Название

Примечание

Количество

1

284735A2

HOSE,12.7mm ID x 1570mm L, SAE 30R7

1шт.

2

291260A2

CONDUIT

1500 mm (59 in)

1шт.

3

336427A1

COUPLING

Hose, 1/2 in

1шт.

4

87447003

FUEL HOSE,12.70 mm ID x 1090.00 mm, SAE 30R7

Fuel Filter Outlet

1шт.

5

87447004

CONDUIT

1000 mm (39-3/8 in)

1шт.

6

1348264C1

HOSE CLAMP

3/8 ID

7шт.

7

214-1408

HOSE CLAMP,11.2mm - 19.8mm

6шт.

8

REF

INSTRUCTION

Pump

1шт.

See Figure 03-05

1шт.

9

356412A1

FUEL HOSE,12.70 mm ID x 900.00 mm , SAE 30R7

Fuel Filter Supply

1шт.

10

356414A1

CONDUIT

830 mm (32-11/16 in)

1шт.

11

217-348

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/4" - 16 Male ORB

2шт.

13

REF

INSTRUCTION

Pump, Injection

1шт.

See Figure 03-08

1шт.

14

336429A2

FUEL FILTER

1шт.

See Figure 03-25

1шт.

15

292457A2

FUEL HOSE,9.53 mm ID x 1415.00 mm, SAE 30R7

Cut From 284736A2

1шт.

16

291507A2

CONDUIT

1345 mm (53 in), Cut From 291262A2

1шт.

17

REF

INSTRUCTION

Cooler

1шт.

See Figure 09-42

1шт.

18

327835A1

FUEL HOSE,9.53 mm ID x 1865.00 mm, SAE 30R7

Cut From 284736A2

2шт.

19

327836A1

FUEL HOSE,16.64 mm ID x 1795.00 mm

Cut From 291262A2

2шт.

21

169850C2

CABLE CLIP

1шт.

22

360525A1

HOSE,15.88 mm ID x 700.00 mm, SAE 30R7

Filter Drain

1шт.

23

87435416

SPRING

Fuel Hose Guard

2шт.

24

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

Выбрано товаров: 26
